Technics ST-X302L Service Manual

| ST-x302L

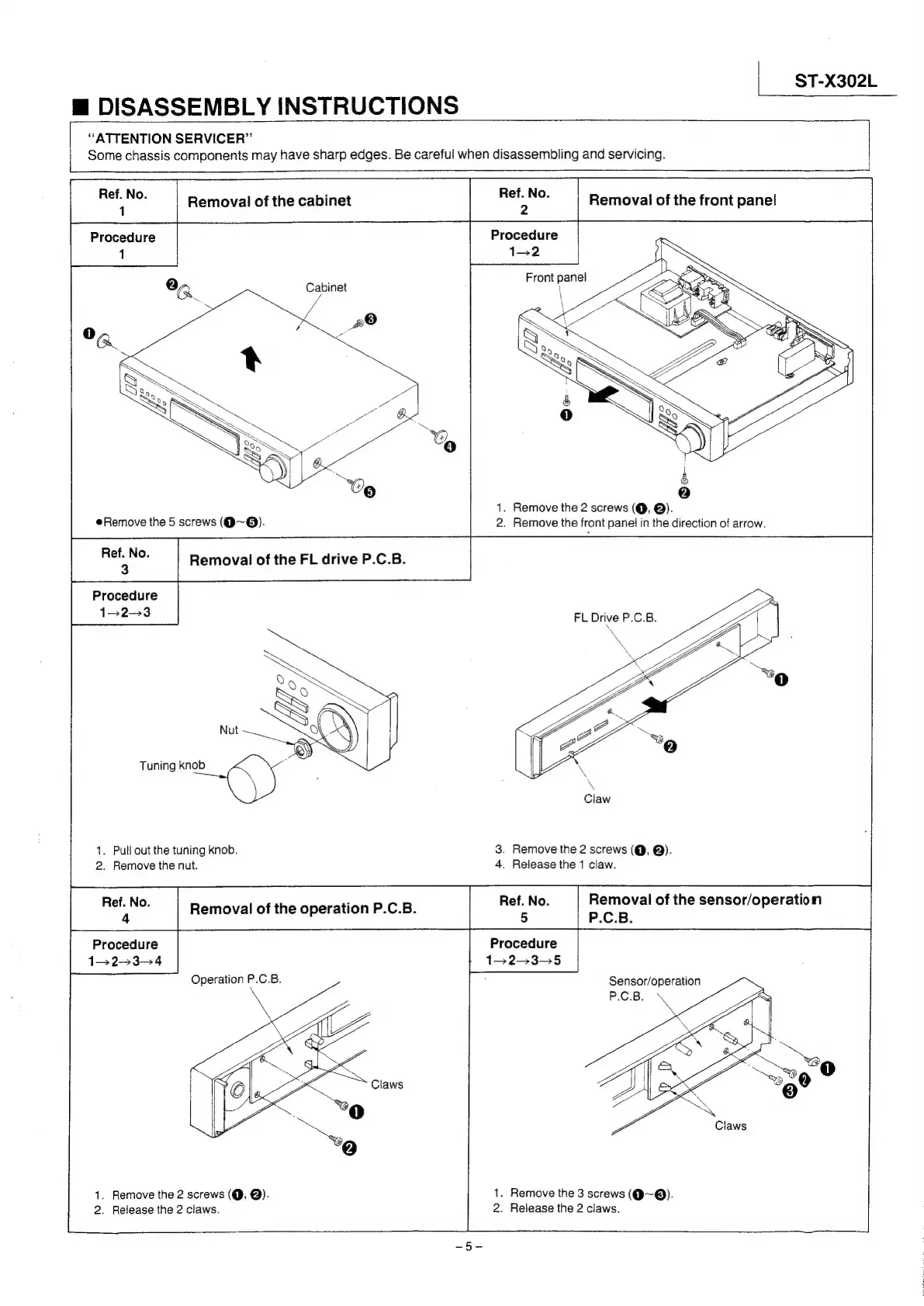

m DISASSEMBLY INSTRUCTIONS
“ATTENTION SERVICER” |
Some chassis components may have sharp edges. Be careful when disassembling and servicing.
Removal of the cabinet ee Removal of the front panel
Procedure
12
Cabinet
1. Remove the 2 screws (@, @).
2. Remove the front panel in the direction of arrow.
FL Drive P.C.B.
Tuning
a
1. Pull out the tuning knob. 3. Remove the 2 screws (@, @).
2. Remove the nut. 4. Release the 1 claw.
Ref. No. emoval of the operation P.C.B. Removal of the sensor/operation
4 P.C.B.
Procedure Procedure
1523-4 1>2—-3—5
Operation P.C.B. Sensor/operation
P.C.B.
1. Remove the 2 screws (@, @). 1. Remove the 3 screws (Q@~®).
2. Release the 2 claws. 2. Release the 2 claws.

Technics ST-X302L Specifications

General

Brand	Technics
Model	ST-X302L
Category	Tuner
Language	English
