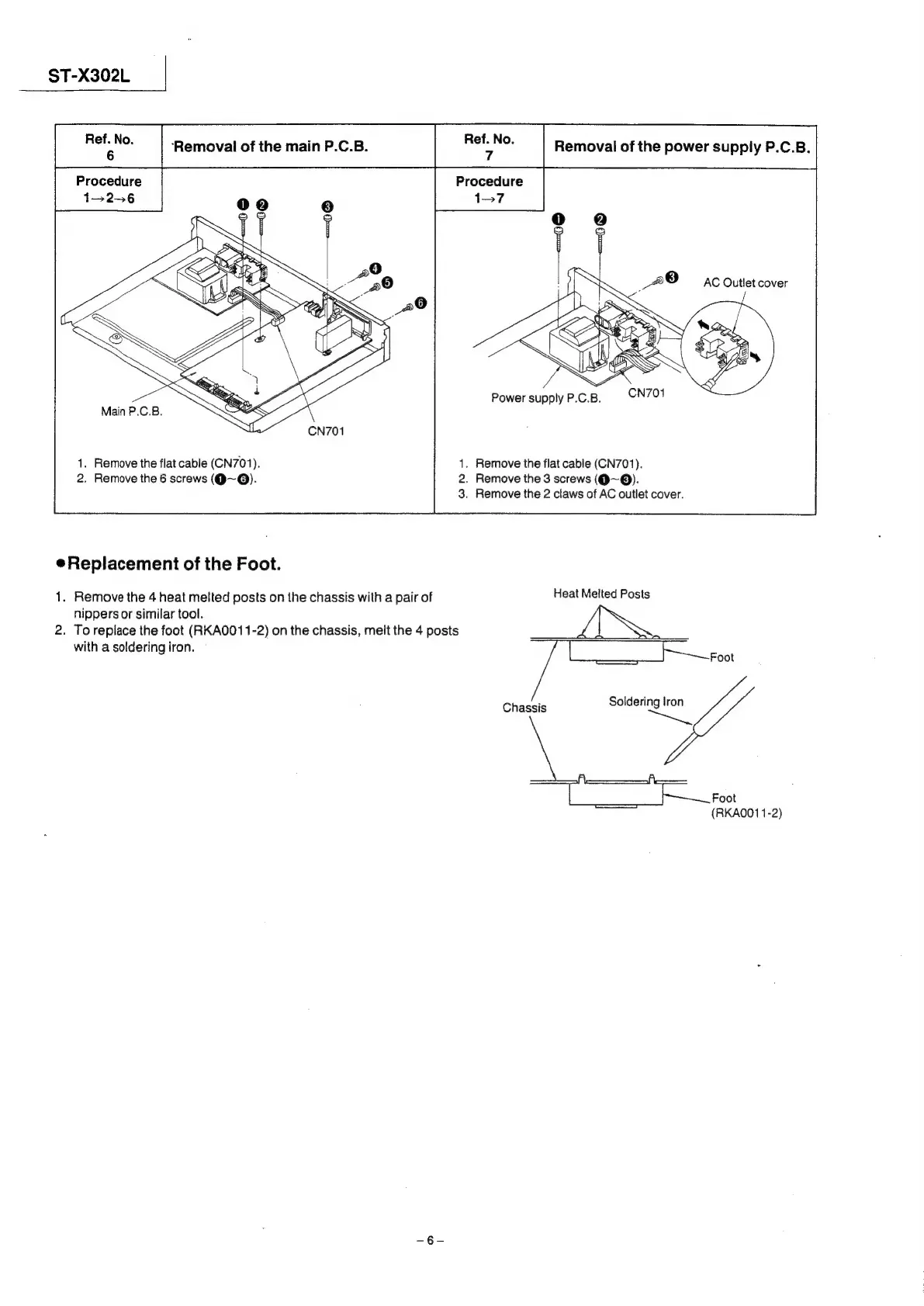

ST-X302L
|
Removal
of
the
power
supply
P.C.B.
i
‘Removal
of
the
main
P.C.B.
pa
Procedure
1-7
AC
Outlet
cover
1.
Remove
the
flat
cable
(CN701).
1.
Remove
the
flat
cable
(CN701).
2.
Remove
the
6
screws
(Q@~@).
2.
Remove
the
3
screws
(@~®).
3.
Remove
the
2
claws
of
AC
outlet
cover.
Replacement
of
the
Foot.
1.
Remove
the
4
heat
melted
posts
on
the
chassis
with
a
pair
of
Heat
Melted
Posts
nippers
or
similar
tool.
2.
To
replace
the
foot
(RKA0011-2)
on
the
chassis,
meit
the
4
posts
with
a
soldering
iron.
Foot
Chassis
Soldering
Iron
Foot
(RKAO011-2)
