Technics SU-V500 User Manual

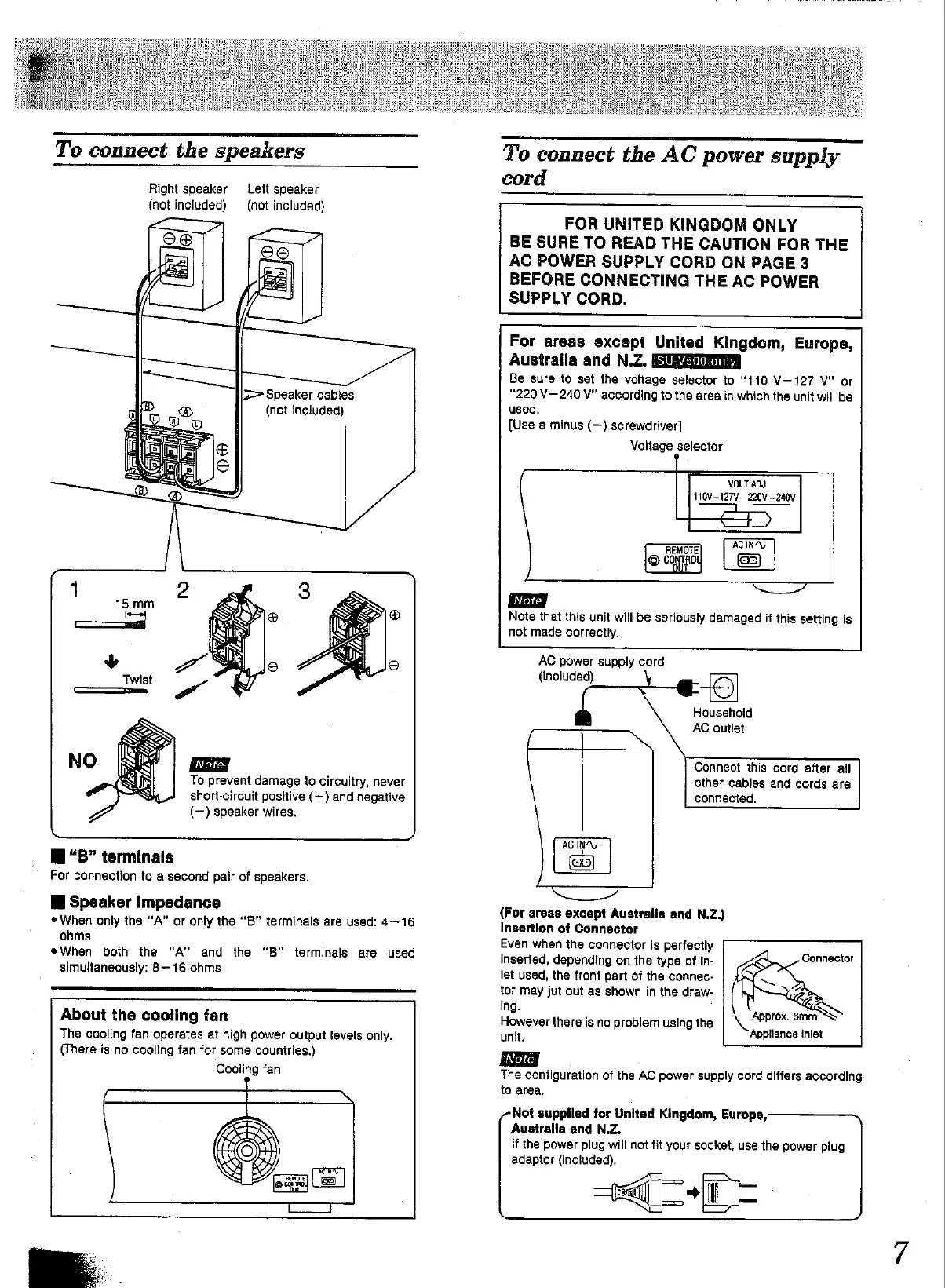

To connect the speakers
Right speaker Left speaker
{not included) —_ (not included)
2->> Speaker cables
(not included)
To prevent damage to circuitry, never
short-circuit positive (+) and negative
{—) speaker wires.
“8” terminals
For connection to a second pair of speakers.
WW Speaker impedance
* When only the “A” or only the “B” terminals are used: 4-16
ohms
*When both the “A” and the “B” terminals are used
simultaneously: 8-16 ohms
About the cooling fan
The cooling fan operates at high power output levels only.
(There is no cooling fan for some countries.)
Cooling fan
To connect the AC power supply
cord
FOR UNITED KINGDOM ONLY
BE
SURE
TO
READ
THE
CAUTION
FOR
THE
AC POWER SUPPLY CORD ON PAGE 3
BEFORE CONNECTING THE AC POWER
SUPPLY CORD.
For
areas
except
United
Kingdom,
Europe,
Australla
and
N.Z.
Be
sure
to
set
the
voltage
selector
to
“110
V—127
V”
or
“220
V—240
V"
according
to
the
area
in
which
the
unit
will
be
used.
{Use a minus (—) screwdriver]
Voltage selector
VOLT ADJ
11GV—127V 220V -240V
Note
that
this
unit
will
be
seriously
damaged
if
this
setting
is
not
made
correctly.
AC power supply cord
(included)
Household
AC outlet
Connect this cord aiter ail
other cables and cords are
connected.
ACI
(For areas except Australia and N.Z.)
Insertion of Connector
Even when the connector is perfectly
inserted,
depending
on
the
type
of
in-
Connector
let used, the front part of the connec-
tor may jut out as shown in the draw-
Ing.
However there is no problem using the
unit.
The configuration of the AC power supply cord differs according
to area.
Not supplied for United Kingdom, Europe,
Australia and N.Z.
Hf the power plug will not fit your socket, use the power plug
adaptor (included).
<E-Er
Approx. 6mm
Appliance intet

Technics SU-V500 Specifications

General

Type	Integrated Amplifier
Damping Factor	60
Input Sensitivity	2.5mV (MM), 150mV (line)
Channel Separation	55 dB (Line)
Signal to Noise Ratio	110dB (line)
Dimensions	430 x 125 x 320 mm
Speaker Load Impedance	4Ω to 16Ω
