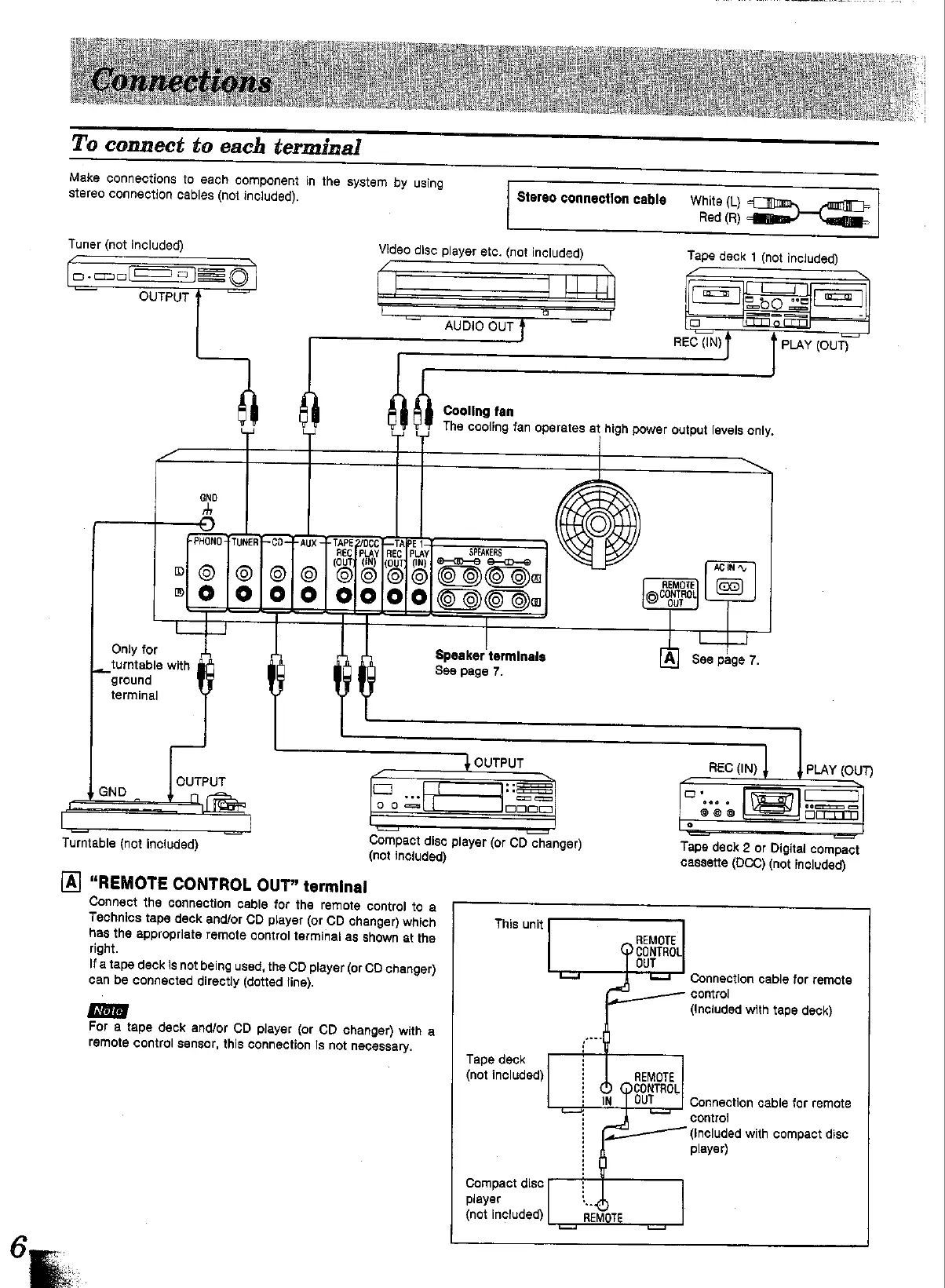

To
connect
te
each
terminal
Make
connections
to
each
component
in
the
system
by
using
stereo
connection
cables
(not
included).
Stereo
connection
cable
White
(L)
=
Red
(R)
Tuner
(not
included)
Video
disc
player
etc.
(not
included)
Tape
deck
1
(not
included)
(os
=
aT
a
iJ
eae
“Fi
a
"
ie
roar
"AUDIO
OUT
PLAY
(OUT)
Cooling
fan
The
cooling
fan
operates
at
high
power
output
levels
only.
Only
for
turntable
with
ground
terminal
Speaker
terminals
See
page
7.
Cc
a
ee
ot
Compact
disc
player
(or
CD
changer)
Tape
deck
2
or
Digital
compact
Turntable
(not
included)
(not
inciuded)
cassette
(DCC)
(not
included)
[A]
“REMOTE
CONTROL
OUT”
terminal
Connect
the
connection
cable
for
the
remote
control
to
a
Technics
tape
deck
and/or
CD
Player
(or
CD
changer)
which
has
the
appropriate
remote
control
terminal
as
shown
at
the
right.
If
a
tape
deck
is
not
being
used,
the
CD
player
(or
CD
changer)
can
be
connected
directly
(dotted
line).
For
a
tape
deck
and/or
CD
player
(or
CD
changer)
with
a
remote
conirol
sensor,
this
connection
Is
not
necessary.
This
unit
REMOTE
®
CONTROL
ou
Connection
cable
for
remote
control
(Inciuded
with
tape
deck)
Tape
deck
(not
included)
Connection
cable
for
remote
control
(included
with
compact
disc
player)
Compact
disc
player
{not
Included)
L
ee
