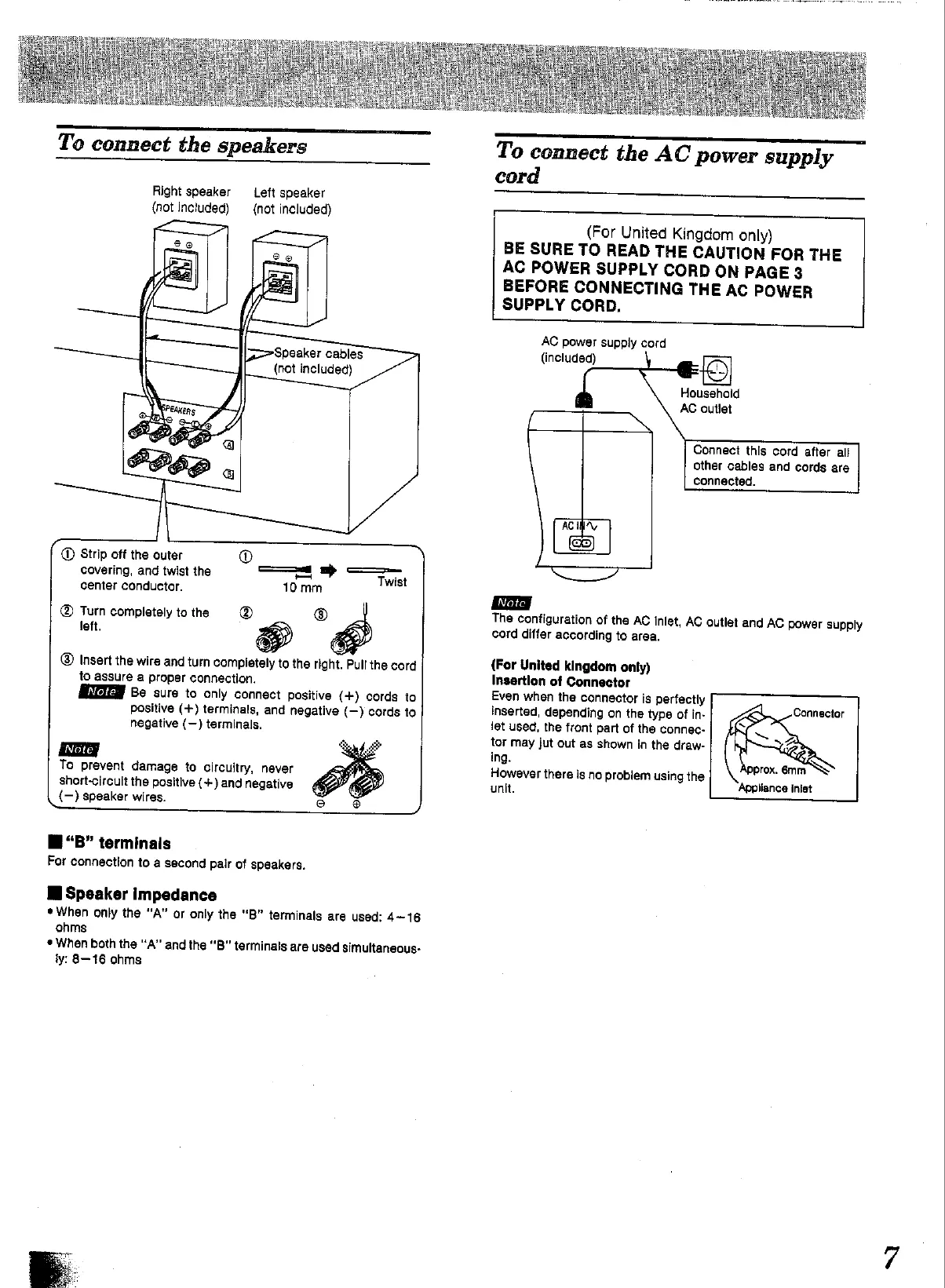

To
connect
the
speakers
Right speaker —_ Left speaker
{not Included) —_ (not included)
Speaker cables
(not included)
©® Strip off the outer
covering,
and
twist
the
=a
»>
Twist
center
conductor.
10
mm
@®
Turn
completely
to
the
®
left.
@
Insert
the
wire
and
turn
compietely
to
the
right.
Pull
the
cord
to
assure
a
proper
connection.
Be
sure
to
only
connect
positive
(+)
cords
to
Positive
(+)
terminals,
and
negative
(-)
cords
to
negative
(—)
terminals.
To
prevent
damage
to
circuitry,
never
short-circuit
the
positive
(+)
and
negative
{—)
speaker
wires.
M@“B” terminalis
For
connection
to
a
second
palr
of
speakers,
IB Speaker impedance
When
only
the
“A”
or
only
the
"B”
terminals
are
used:
4~16
ohms
*
When
both
the
“A”
and
the
“B”
terminals
are
used
simultaneous-
ly:
8-16
ohms
(For
United
Kingdom
only)
BE
SURE
TO
READ
THE
CAUTION
FOR
THE
AC
POWER
SUPPLY
CORD
ON
PAGE
3
BEFORE
CONNECTING
THE
AC
POWER
SUPPLY
CORD.
AC power supply cord
(included)
Household
AC outlet
Connect this cord after alt
other cables and cords are
connected.
The
configuration
of
the
AC
Inlet,
AC
outlet
and
AC
power
supply
cord
differ
according
to
area.
(For
United
kingdom
only)
Insertlon
of
Connector
Even
when
the
connector
is
perfectly
inserted,
depending
on
the
type
of
in-
let
used,
the
front
part
of
the
connec-
tor
may
jut
out
as
shown
in
the
draw-
ing.
However
there
is
no
problem
using
the
Approx. 6mm SS
unit. ‘Appliance inlet
