Technics SU-VX620 Service Manual

SU-VX620 |

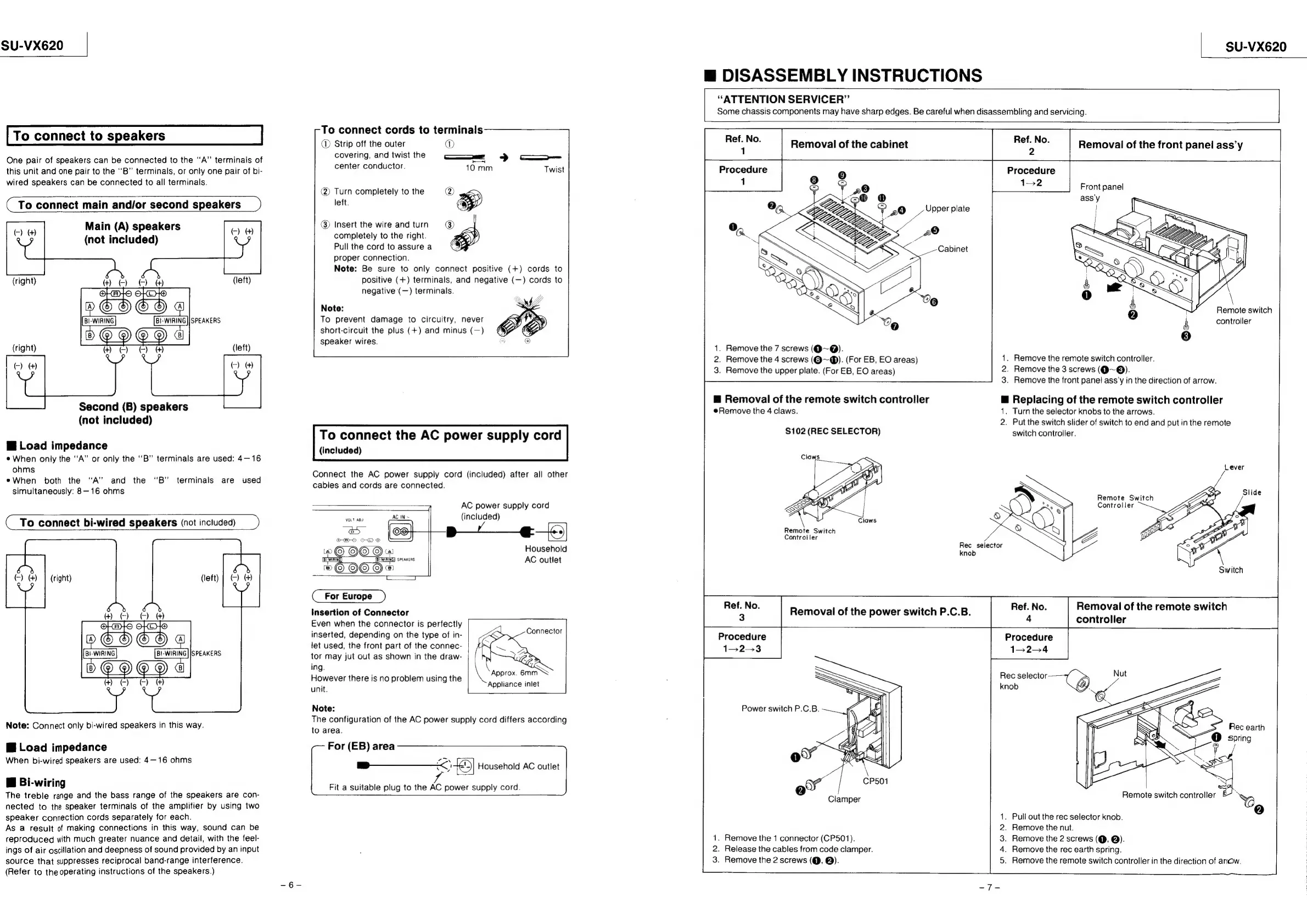

To connect to speakers
One pair of speakers can be connected to the “A” terminals of
this unit and one pair to the ‘‘B” terminals, or only one pair of bi-
wired speakers can be connected to all terminals.
( To connect main and/or second speakers __)
Main (A) speakers
(not included)
Second (B) speakers
(not included)
Mi Load impedance
When only the ‘‘A” or only the ‘‘B” terminals are used: 4—16
ohms
eWhen both the “A” and the “B” terminals are used
simultaneously: 8— 16 ohms
Cc. To connect bi-wired speakers (not included) +)
Note: Connect only bi-wired speakers in this way.
@ Load impedance
When bi-wired speakers are used: 4—16 ohms
@ Bi-wiring
The treble range and the bass range of the speakers are con-
nected to the speaker terminals of the amplifier by using two
speaker connection cords separately for each.
As a result of making connections in this way, sound can be
reproduced with much greater nuance and detail, with the feel-
ings of air oscillation and deepness of sound provided by an input
source that suppresses reciprocal band-range interference.
(Refer to the operating instructions of the speakers.)
To connect cords to terminals
@ Strip off the outer @
covering, and twist the —e 5S ———
center conductor. 10 mm Twit
@) Turn completely to the @ cy
left.
@® Insert the wire andturn @)
completely to the right.
Pull the cord to assure a
proper connection.
Note: Be sure to only connect positive (+) cords to
positive (+) terminals, and negative (—) cords to
negative {—) terminals.
Note:
To prevent damage to circuitry, never
short-circuit the plus (+) and minus (—)
speaker wires.
To connect the AC power supply cord
(included)
Connect the AC power supply cord (included) after all other
cables and cords are connected.
AC power supply cord
(included)
»>—__¢«—-
up
cal
Household
[ELWARING)
SPEAKERS
AC
outlet
©
*
Cc
( For Europe )
Insertion of Connector
Even when the connector is perfectly
inserted, depending on the type of in-
let used, the front part of the connec-
tor may jut out as shown in the draw-
ing.
However there is no problem using the
unit.
SS
Approx. 6mm
Appliance inlet
Note:
The configuration of the AC power supply cord differs according
to area.
For (EB) area
a —__<"
v 41) Household AC outlet
Fit a suitable plug to the AC power supply cord.
| su-vx620
m@ DISASSEMBLY INSTRUCTIONS
“ATTENTION SERVICER” |
Some chassis components may have sharp edges. Be careful when disassembling and servicing.
ae Removal of the front panel ass’y
Procedure
1-2
Front panel
controller
1. Remove the 7 screws (Q@~@).
2. Remove the 4 screws (Q@~@®). (For EB, EO areas)
3. Remove the upper plate. (For EB, EO areas)
1. Remove the remote switch controller.
2. Remove the 3 screws (@~®).
3. Remove the front panel ass’y in the direction of arrow.
H Removal of the remote switch controller
@Remove the 4 claws.
@ Replacing of the remote switch controller
1. Turn the selector knobs to the arrows.
2. Put the switch slider of switch to end and put in the remote
$102 (REC SELECTOR) switch controller.
Remote Switch
Controller
Y
Rec selector
knob
Switch
Removal of the power switch P.C.B. Ref. No. Removal of the remote switch
4 controller
Procedure Procedure
123 152-4
Rec selector
knob Ne
Power switch P.C.B.
Clamper
. Puli out the rec selector knob.
. Remove the nut.
Remove the 2 screws (@, @).
Remove the rec earth spring.
Remove the remote switch controller in the direction of arrow,
1. Remove the 1 connector (CP501).
2. Release the cables from code clamper.
3. Remove the 2 screws (@, @).
Akon
