Technics SU-VZ220 Service Manual

SU-VZ220-

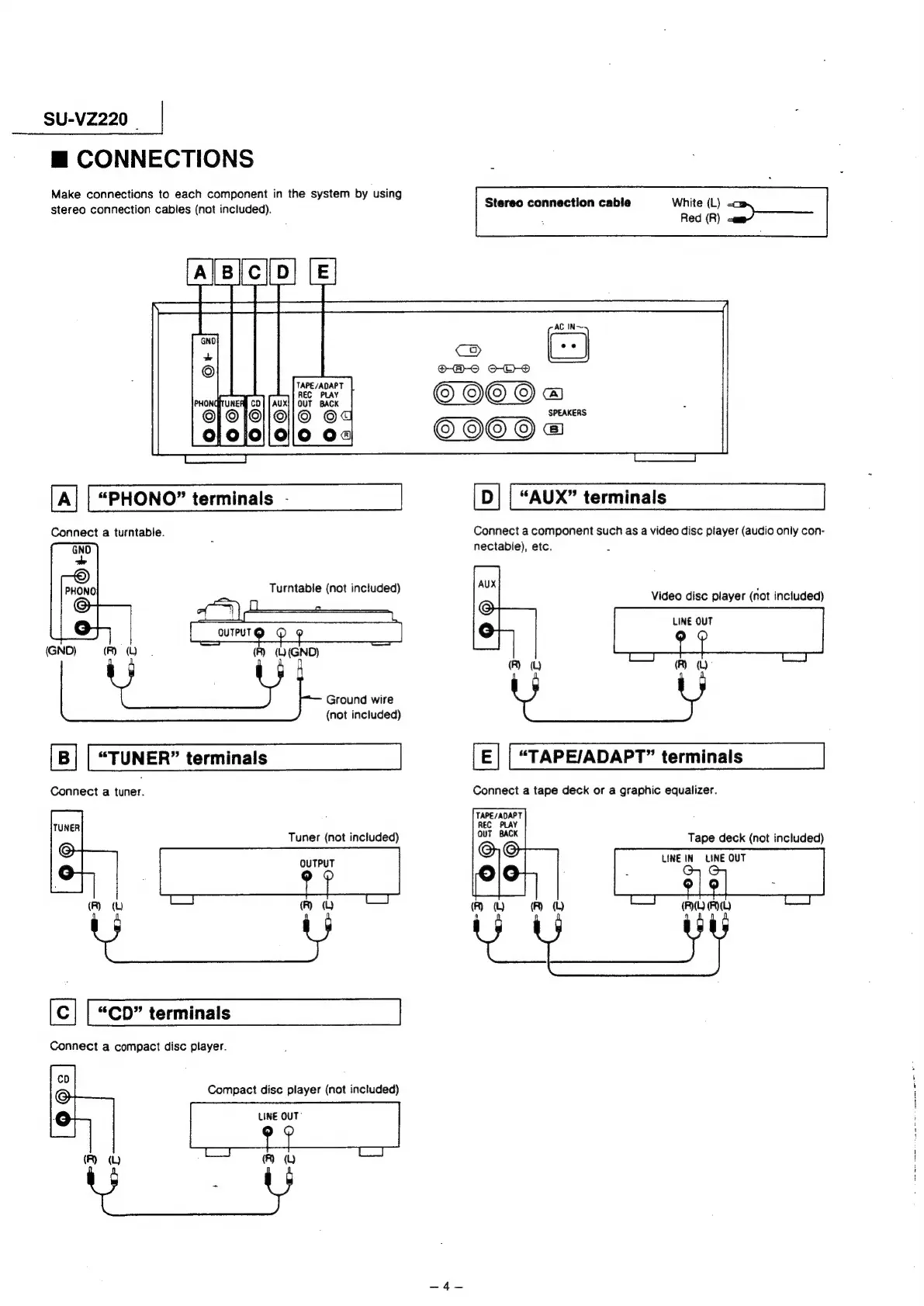

m@ CONNECTIONS
Make connections to each component in the system by using
stereo connection cables (not included).
Stereo connection cable
White (L)
Red (R) =e,
[ok ee
[A] “PHONO” terminals -
Connect a turntable.
Turntable (not included)
(GND) (R) . (R) (GND)
Ground wire
(not included)
Connect a tuner.
Tuner (not included)
ec : 0 Oo
= A CT
Ry
ai
[c] “CD” terminals
Connect a compact disc player.
Compact disc player (not included)
©
¢ LINE OUT’
2 >
CJ Co
® ®
[D] “AUX” terminals
Connect a component such as a video disc player (audio only con-
nectable), etc.
Video disc player (not included)
LINE OUT
R) (y
[| [“TAPE/ADAPT” terminals
Connect a tape deck or a graphic equalizer.
TAPE/ADAPT
Tape deck (not included)
LINE IN| LINE OUT
HA CO
