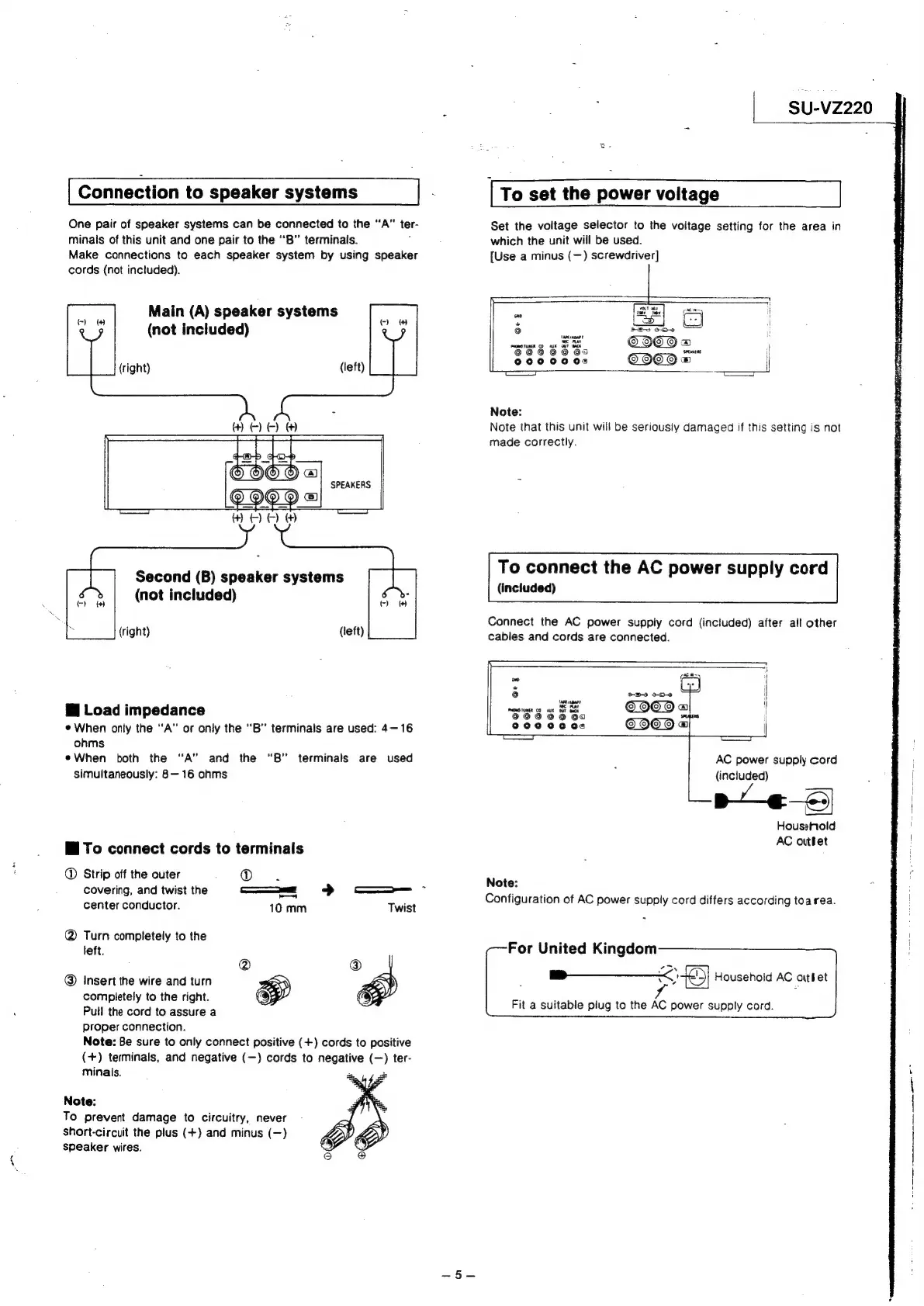

Connection to speaker systems
One pair of speaker systems can be connected to the “A” ter-
minals of this unit and one pair to the “B” terminais.
Make connections to each speaker system by using speaker
cords (not included).
Main (A) speaker systems
(not included)
(right) (left)
HOF) &
SPEAKERS
HOO
Second (B) speaker systems
(not included)
(right) (left)
Ml Load impedance
«When only the ‘‘A” or only the '‘B” terminals are used: 4—16
ohms
eWhen both the “A” and the “B”
simultaneously: 8— 16 ohms
terminals are used
Mi To connect cords to terminals
@® Strip off the outer ®@ .
covering, and twist the
center
conductor.
Twist
@ Turn completely to the
left.
10 mm
@ @
@ Insert the wire and turn
compietely to the right. BD
Pull the cord to assure a
proper connection.
Note: Be sure to only connect positive (+) cords to positive
(+) terminals, and negative (—) cords to negative (—) ter-
minais. 2 -
Note:
To prevent damage to circuitry, never
short-circuit the plus (+) and minus (—)
speaker wires.
— > — ~-
—
| eee
To set the power voltage
Set the voltage selector to the voltage setting for the area in
which the unit will be used.
[Use a minus (—) screwdriver]
on
+ al
® TAPE ADAPT n
pair
ign aa wit’ OE ‘
©0900 05 i
0000008 i
l
Note:
Note that this unit will be seriously damaged if this setting is not
made correctly.
To connect the AC power supply cord
(included)
Connect the AC power supply cord (included) after all other
cables and cords are connected.
AC power supply cord
(included)
5
Household
AC outhet
Note:
Configuration of AC power supply cord differs according toarea.
For United Kingdom
°—$§£§$————< 6] Household AC outhet
7 :
Fit a suitable plug to the AC power supply cord.
