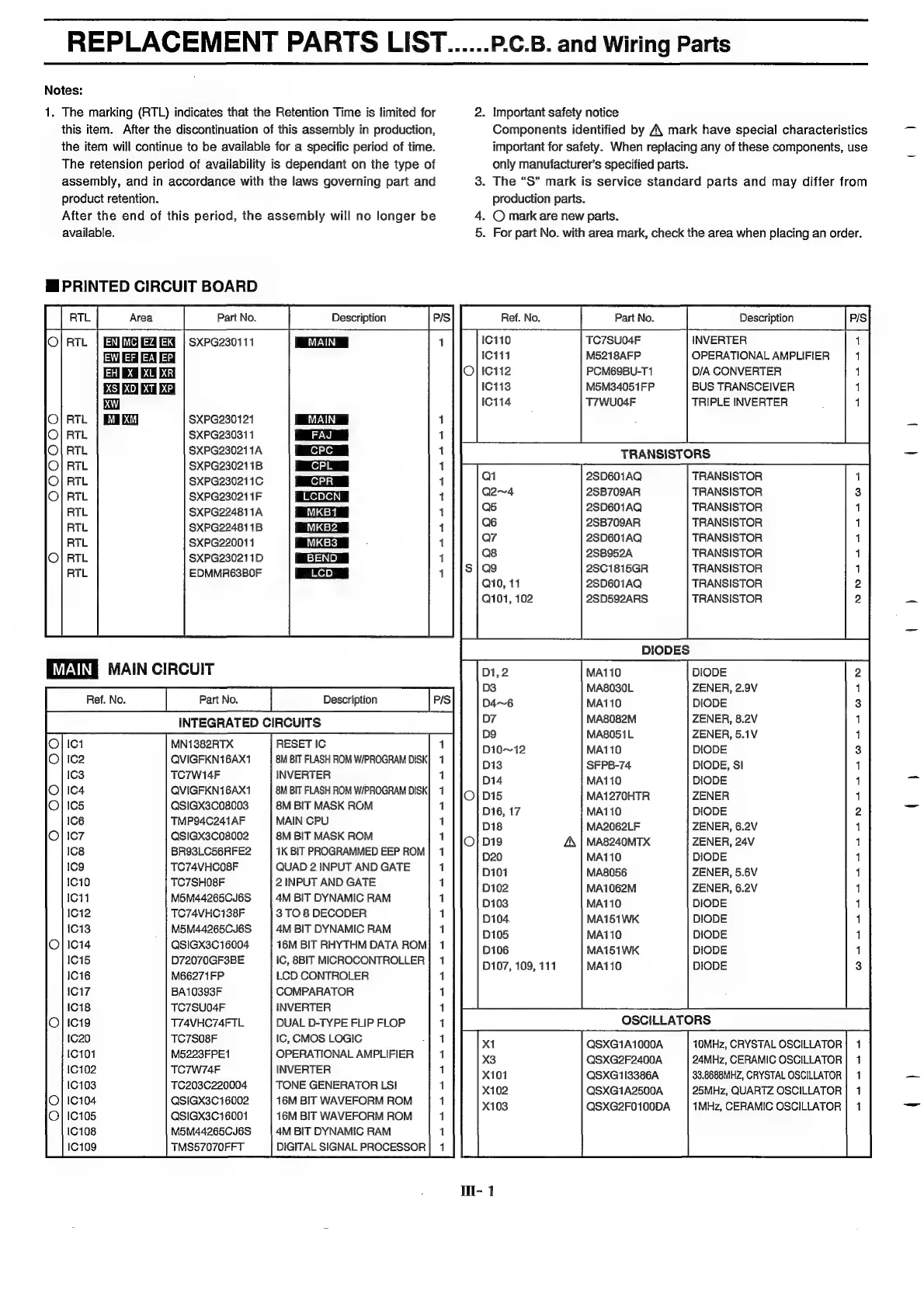

Technics SX-KN1400 - Ml REPLACEMENT PARTS LIST

REPLACEMENT PARTS LIST......P.C.B. and Wiring Parts
Notes:
1. The marking (RTL) indicates that the Retention Time is limited for
this item. After the discontinuation of this assembly in production,
the item will continue to be available for a specific period of time.
The retension period of availability is dependant on the type of
assembly, and in accordance with the laws governing part and
product retention.
After the end of this period, the assembly will no longer be
available.
MIPRINTED CIRCUIT BOARD
Tr
O| RTL | BY Gg | sxpGa230111
EXE
| MXM) SXPG230121
SXPG230311
SXPG230211A
SXPG230211B
SXPG230211C
SXPG230211F
SXPG224811A
SXPG224811B
SXPG220011
SXPG230211D
EDMMR63B0F
ie)
O
1@)
oO
O
O
ore eee ee ee ee ee ee ee eS
MAIN CIRCUIT
INTEGRATED CIRCUITS
MN1382RTX RESET IC
QVIGFKN16AX1 8M BIT FLASH ROM W/PROGRAM DISK
TC7W14F INVERTER
QVIGFKN16AX1 8M BIT FLASH ROM W/PROGRAM DISK
QSIGX3C08003 8M BIT MASK ROM
TMP94C241AF MAIN CPU
QSIGX3C08002 8M BIT MASK ROM
BR93LC56RFE2 1K BIT PROGRAMMED EEP ROM
TC74VHCO8F QUAD 2. INPUT AND GATE
TC7SHO8F 2 INPUT AND GATE
M5M44265CJ6S 4M BIT DYNAMIC RAM
TC74VHC138F 3 TO 8 DECODER
M5M44265CJ6S 4M BIT DYNAMIC RAM
QSIGX3C16004 16M BIT RHYTHM DATA ROM
D72070GF3BE IC, 8BIT MICROCONTROLLER
M66271FP LCD CONTROLER
BA10393F COMPARATOR
TC7SU04F INVERTER
T74VHC74FTL DUAL D-TYPE FLIP FLOP
TC7S08F IC, CMOS LOGIC
M5223FPE1 OPERATIONAL AMPLIFIER
TC7W74F INVERTER
TC2030220004 TONE GENERATOR LSI
QSIGX3C16002 16M BIT WAVEFORM ROM
QSIGX3C16001 16M BIT WAVEFORM ROM
M5M44265CJ6S 4M BIT DYNAMIC RAM
TMS57070FFT DIGITAL SIGNAL PROCESSOR tenn nn ene et rere en eee en eee ee er ew et we
2. Important safety notice
Componenis identified by A\ mark have special characteristics
important for safety. When replacing any of these components, use
only manufacturer’s specified parts.
3. The “S” mark is service standard parts and may differ from
production parts.
4. O mark are new parts.
5. For part No. with area mark, check the area when placing an order.
TC7SU04F INVERTER
M5218AFP OPERATIONAL AMPLIFIER
PCM69BU-T1 D/A CONVERTER
M5M34051FP BUS TRANSCEIVER
T7WU04F TRIPLE INVERTER
TRANSISTORS
2SD601AQ TRANSISTOR
2SB709AR TRANSISTOR
2SD601AQ TRANSISTOR
2SB709AR TRANSISTOR
2SD601AQ TRANSISTOR
2SB952A TRANSISTOR
28C1815GR TRANSISTOR
2SD601AQ TRANSISTOR
2SD592ARS TRANSISTOR
MA110 DIODE
D3 MA8030L ZENER, 2.9V
MA110 DIODE
D7 MA8082M ZENER, 8.2V
D9 MA8051L ZENER, 5.1V
D1i0~12 MA110 DIODE
Di3 SFPB-74 DIODE, SI
Di4 MA110 DIODE
Di5 MA1270HTR ZENER
Di6, 17 MA110 DIODE
Di8& MA2062LF ZENER, 6.2V
D1i9 MA8240MTX ZENER, 24V
D20 MA110 DIODE
Di01 MA8056 ZENER, 5.6V
Di02 MA1062M ZENER, 6.2V
D103 MA110 DIODE
D104. MA151WK DIODE
D105 MA110 DIODE
D106 MA151WK DIODE
D107, 109, 111 MA110 DIODE
Owe oa ane non nan pM Benn WDOae au Wan
OSCILLATORS
QSXG1A1000A 10MHz, CRYSTAL OSCILLATOR
QSXG2F2400A 24MHz, CERAMIC OSCILLATOR
QSXG113386A 33.8688MHZ, CRYSTAL OSCILLATOR
QSXG1A2500A 25MHz, QUARTZ OSCILLATOR
QSXG2F0100DA 1MHz, CERAMIC OSCILLATOR
III- 1
