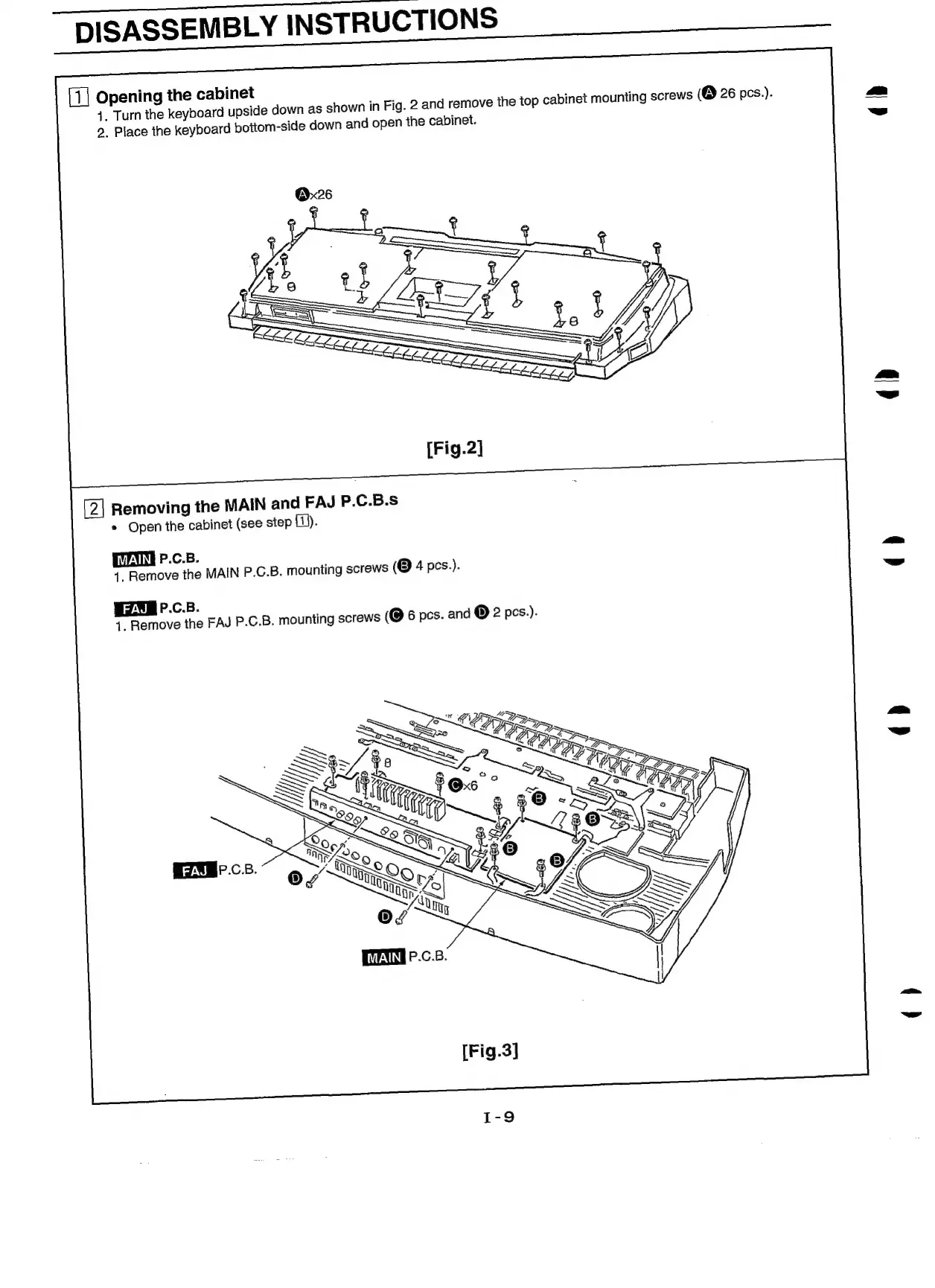

DISASSEMBLY
INSTRUCTIONS
Opening
the
cabinet
4.
Turn
the
keyboard
upside
down
as
shown
in
Fig.
2
and
remove
the
top
cabinet
mounting
screws
(®
26
pcs.).
2.
Place
the
keyboard
bottom-side
down
and
open
ihe
cabinet.
(>
Removing
the
MAIN
and
FAd
P.C.B.s
*
Open
the
cabinet
(see
step
{i)).
[WAM P.c.B.
1.
Remove
the
MAIN
P.C.B.
mounting
screws
(@
4
pes.).
P.C.B
4.
Remove
the
FAJ
P.C.B.
mounting
screws
(@
6
pes.
and
©
2
pcs.).
a0
.c.e.
