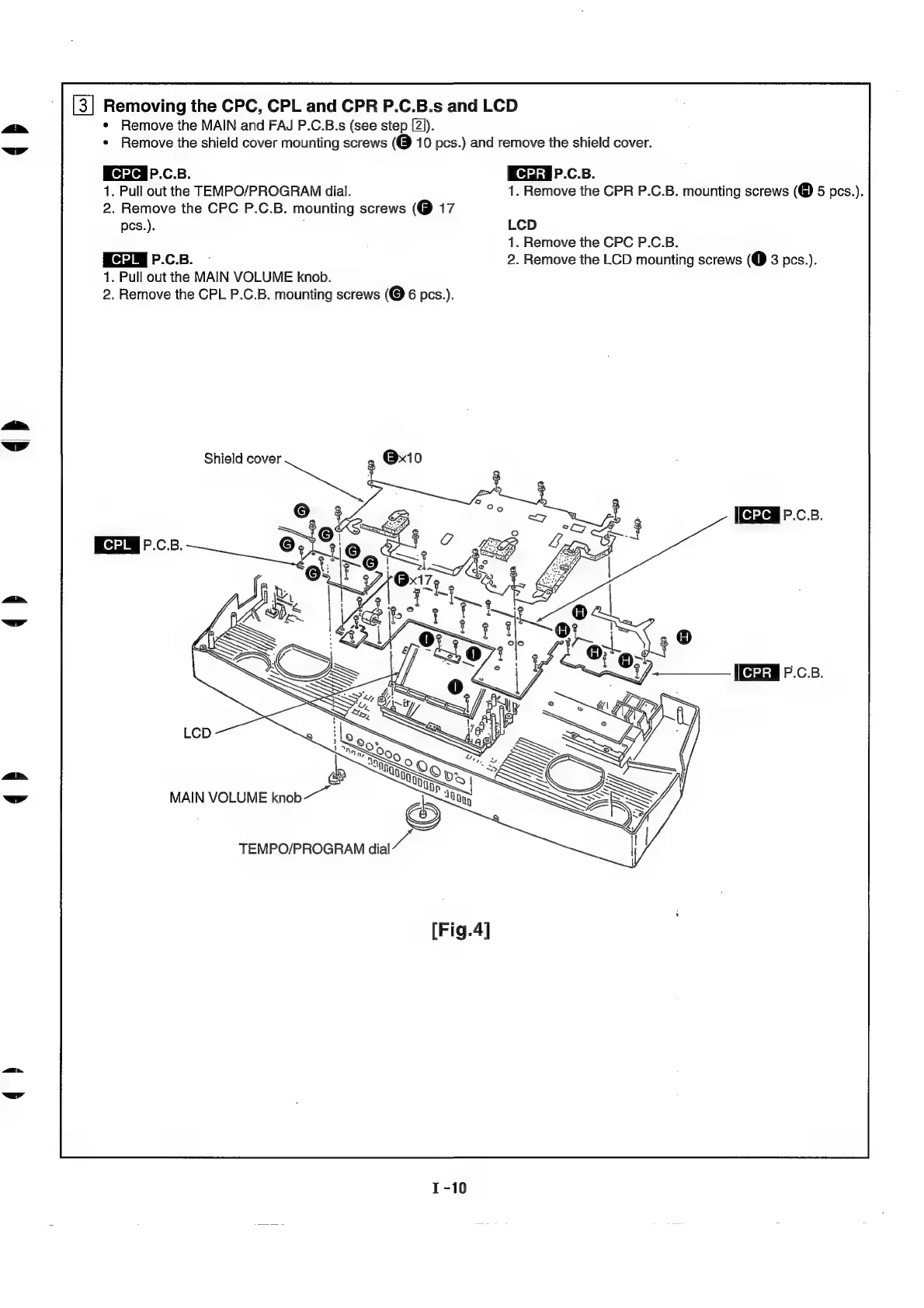

Removing the CPC, CPL and CPR P.C.B.s and LCD
¢ Remove the MAIN and FAd P.C.B.s (see step [2/).
* Remove the shield cover mounting screws (@ 10 pcs.) and remove the shield cover.
Keitel P.c.B.
1. Pull out the TEMPO/PROGRANM dial.
2. Remove the CPC P.C.B. mounting screws (@ 17
pcs.).
P.C.B.
1. Pull out the MAIN VOLUME knob.
2. Remove the CPL P.C.B. mounting screws (@ 6 pcs.).
Shield cover
©
mmc
RN
!
a
8
Aime 1
&
MAIN VOLUME knob
TEMPO/PROGRAM dial
[Fig.4]
Keds P.c.B.
1. Remove the CPR P.C.B. mounting screws (@ 5 pcs.).
LCD
1. Remove the CPC P.C.B.
2. Remove the LCD mounting screws (@ 3 pcs.).
Keitel P.c.B.
[eal P.c.B.
