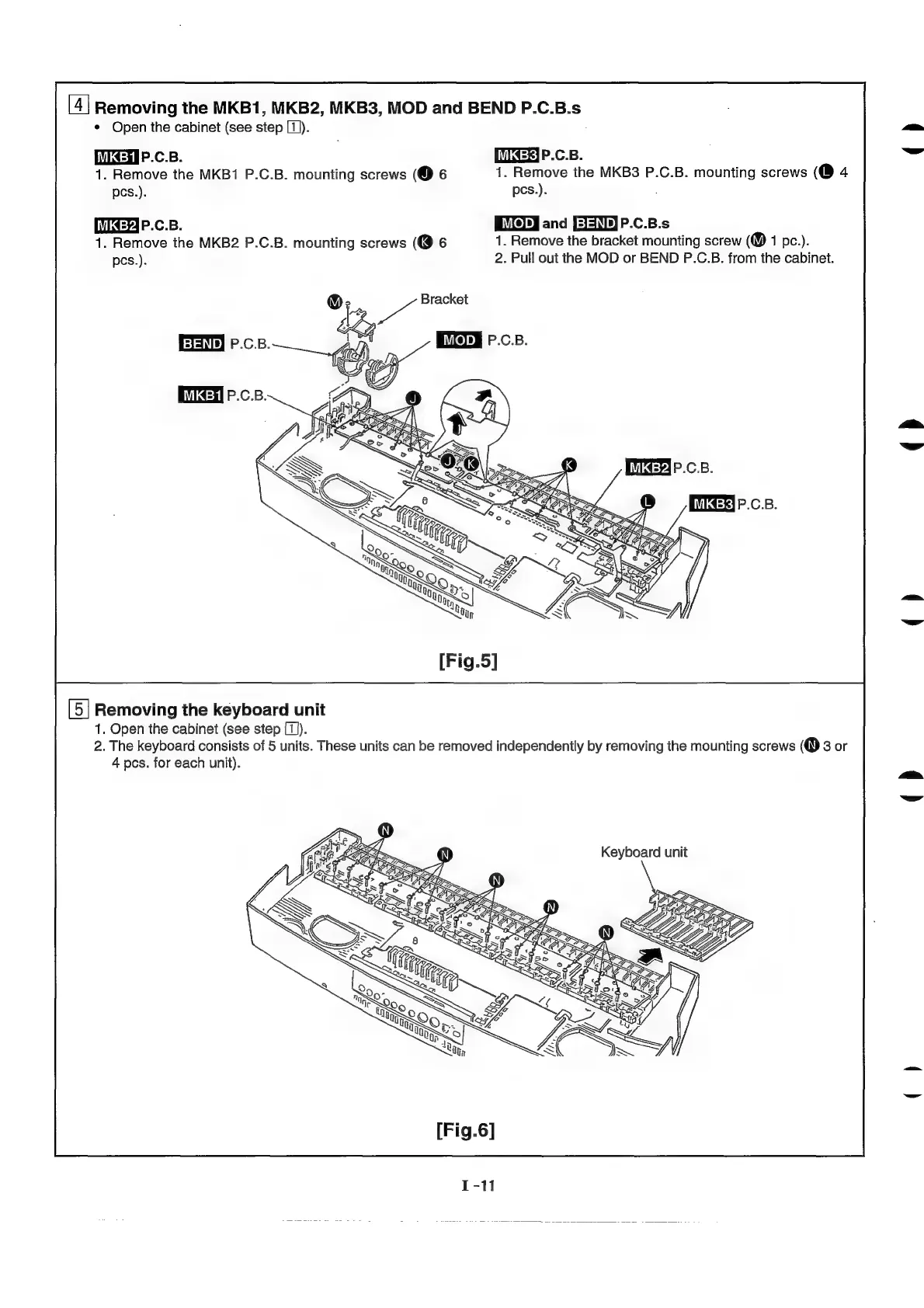

Removing the MKB1, MKB2, MKB3, MOD and BEND P.C.B.s
¢ Open the cabinet (see step [1]). ™
=]
P.C.B.
iE]
P.C.B.
~~
1. Remove the MKB1 P.C.B. mounting screws (@ 6 1. Remove the MKB3 P.C.B. mounting screws (@ 4
pces.). pes.).
Dey P.c.B. Wey and EEXD)P.c.B.s
1. Remove the MKB2 P.C.B. mounting screws (@ 6 1. Remove the bracket mounting screw (@ 1 pc.).
pcs.). 2. Pull out the MOD or BEND P.C.B. from the cabinet.
ea Bracket
P.C.B.
Wiidee} P.C.B.
A,
~~
ce
=
[Fig.5]
Removing the keyboard unit
1. Open the cabinet (see step [1)).
2. The keyboard consists of 5 units. These units can be removed independently by removing the mounting screws (@ 3 or
4 pes. for each unit).
PN
=
Keyboard unit
