1. Description of the machine
The XM700 is a numerically controlled micro-percussion marking machine. This machine works by moving the
stylus along the X and Y axes of a grid.
The control electronics and the screen are integrated. Together with the power unit, they form a compact and
portable assembly.
Communication interface:
• 7" colour touch screen: used to program and launch the marking files (3).
• marking start trigger: push button in the handle (4)
• On / Off switch (under the handle) (5)
The unit is controlled by a simple, user-friendly marking program.
The machine is powered either by a mains power supply adapter or by a portable battery attached to the belt.
Its light and ergonomic design makes it possible to take the machine to the parts to be marked, wherever they are
located.

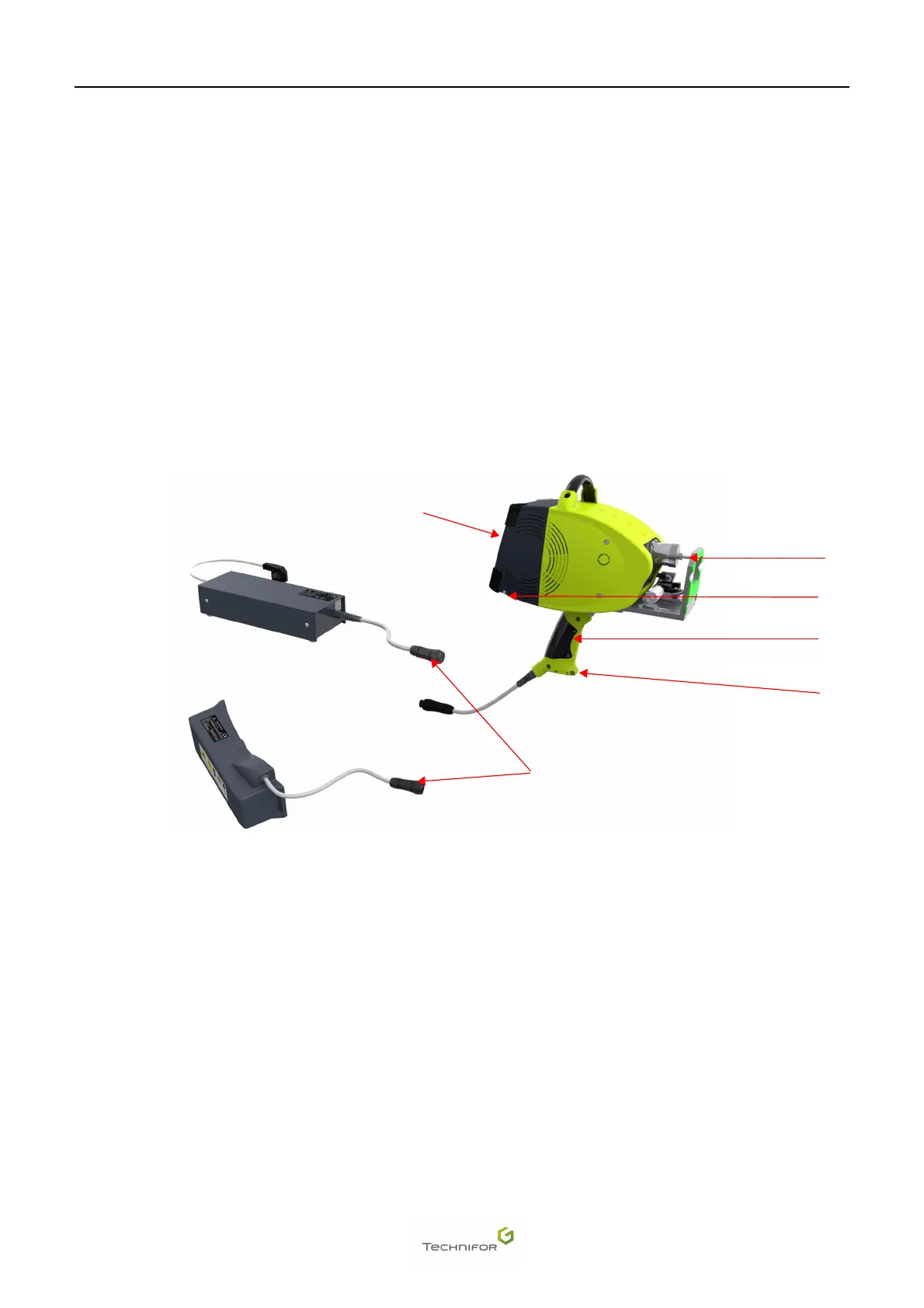

1 : Stylus
2 : Connecting the machine to the mains power supply or to the battery
3 : 7" colour touch screen
4 : Touch screen pen
5 : Marking start trigger
6 : On / Off switch
1
M7000 marking gun
Battery
Power supply
2
3
5
6
4
