Wall Mounting
WALL MOUNTING
1. The base must first be removed. Place
the TV face down.
2. Remove the three screws holding the
base in position.
3. Remove and store the base and
screws.

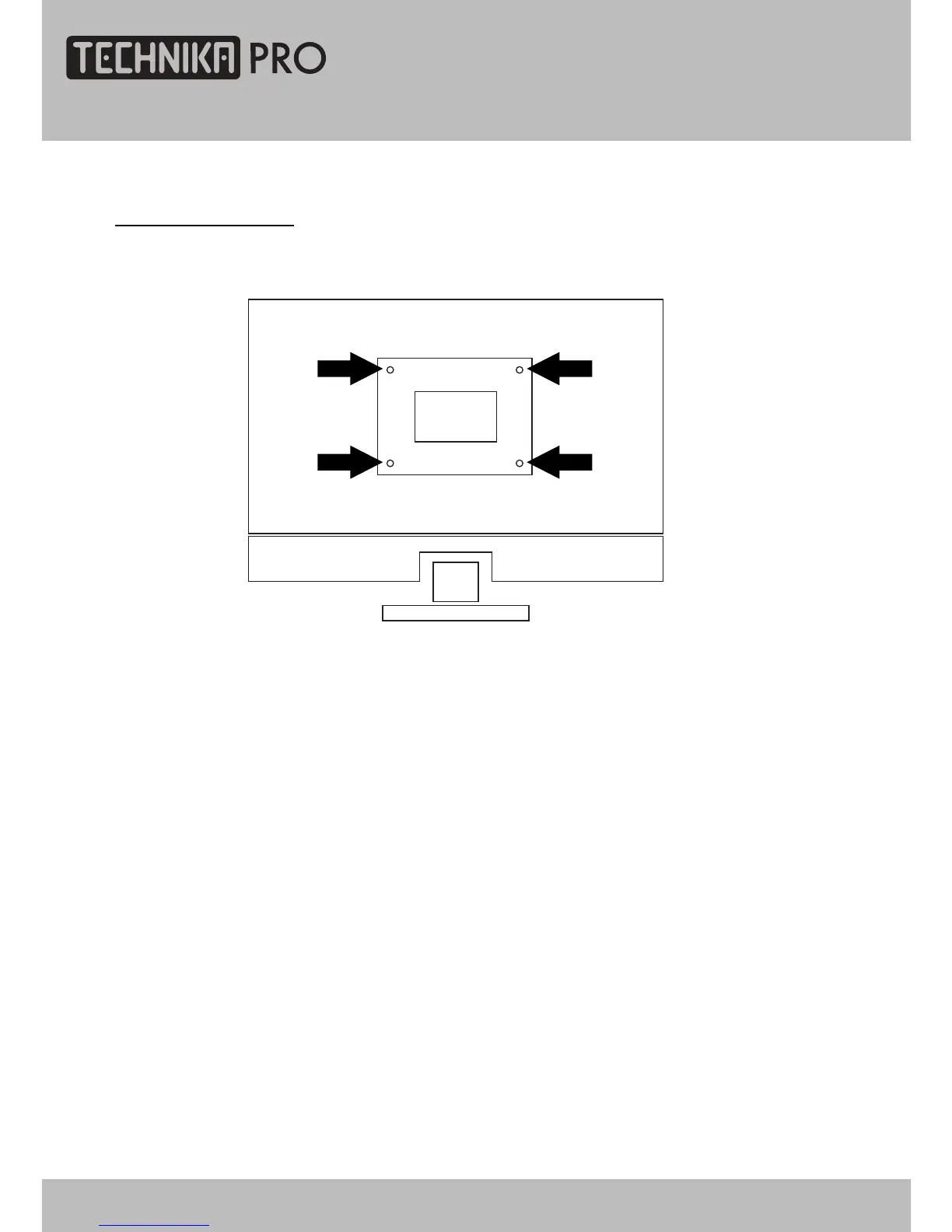

4. Use four machine screws (M4 x 10 mm)
to mount the TV on the bracket.
Mounting the wall bracket - please refer
to the user instructions supplied with
the wall bracket (not supplied).
Suitable for wall mounting - VESA 100 x 100 mm
24" HD Ready 1080p DVD LCD TV User Guide 13
