Technika LCD24-620 - Side Panel Connectors

SIDE PANEL

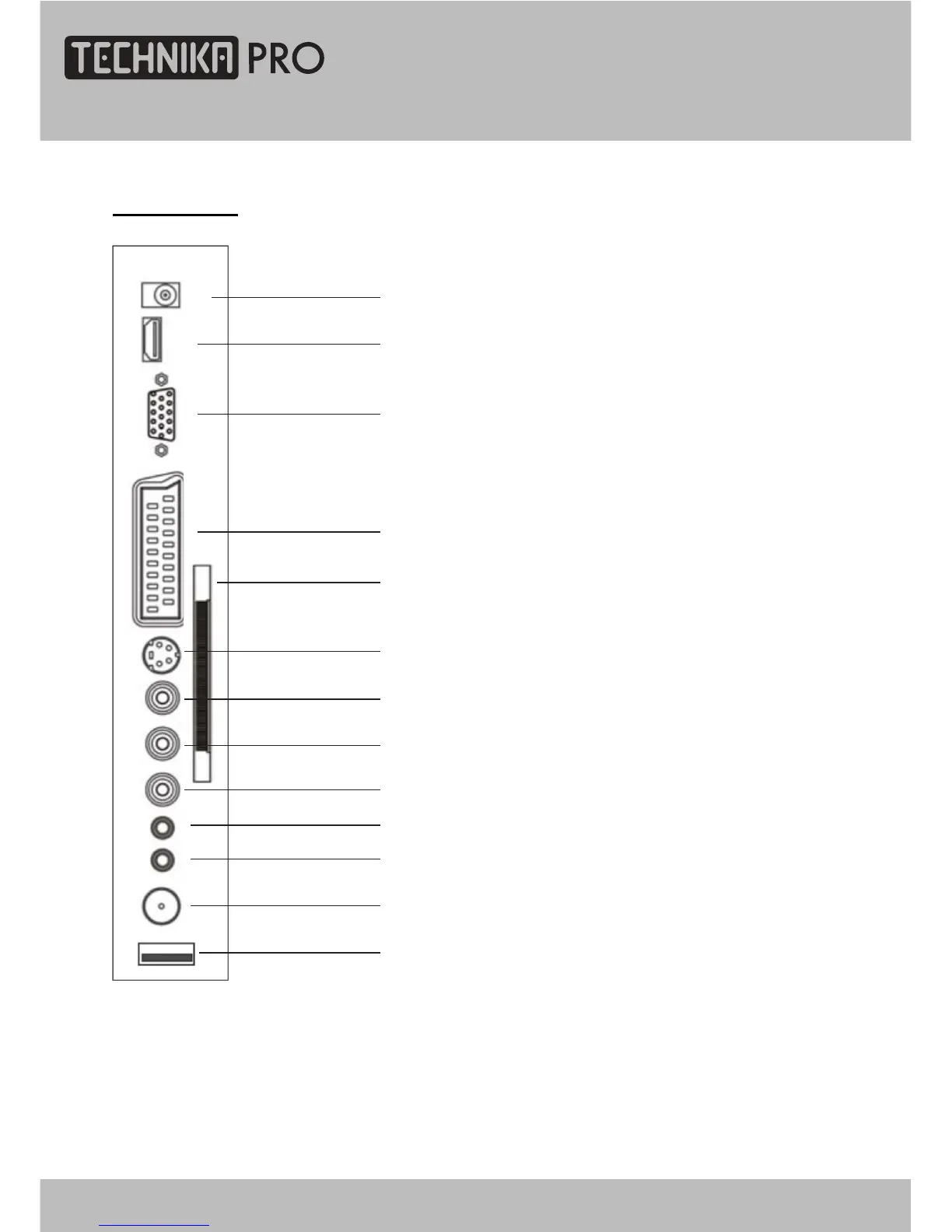

Parts Identification
1. 12V DC power input (intended for feeding
to the TV using a car battery power or
external 12V DC power supply adapter)
2. HDMI input
3. PC VGA input
4. SCART connecting terminal
5. CI connector
6. S-VIDEO input
7. CVBS input
8. CVBS / S-Video Left audio input
9. CVBS / S-Video Right audio input
10. PC audio input
11. Audio Earphone output
12. TV signal input
13. USB connector
1
2
3
4
5
6
7
8
9
12
13
10
11
24" HD Ready 1080p DVD LCD TV User Guide 9
