Weight and Dimensions are approximate. Because we continually strive to improve our
products we may change specifications and designs without prior notice.
Installation
Selection of installation equipment
L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm)
TGGCE64-5 590 520 50 46 565 495 50 min
TGGCE74
700
520 50 46 565 495 50 min
Ensure the hob is well ventilated and the air inlet and outlet are not blocked.
Ensure the hob is in good working order.
Install Rangehoods and Exhaust
Fans in accordance to the manufacturer’s
instructions. No closer than 600mm above the hob for Rangehoods and 750mm
for Exhaust Fans.

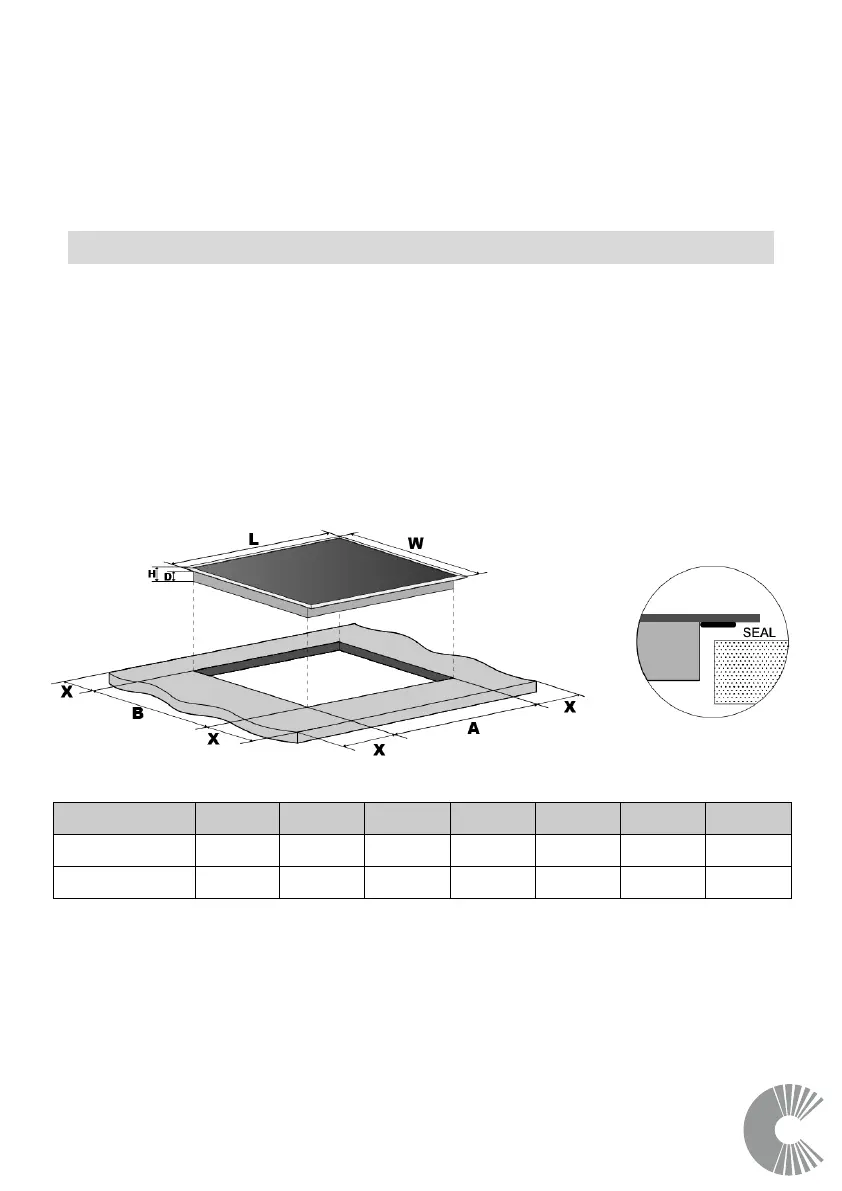

• Cut out the
work surface according to the sizes shown in the drawing.
• For the purpose
of installation and use, a minimum of 50mm space shall be
preserved around the hole.
• Be sure the thickness of the work surface is at least 30mm. and suitable for
the application.
