23
When you have installed the hob, make sure that
• The power supply cable is not accessible through cupboard doors or drawers.
• There is adequate flow of air from outside the cabinetry to the base of the hob.
• If the hob is installed above a drawer or cupboard space, a thermal protection
barrier is installed below the base of the hob.
• The isolating switch is easily accessible by the customer.

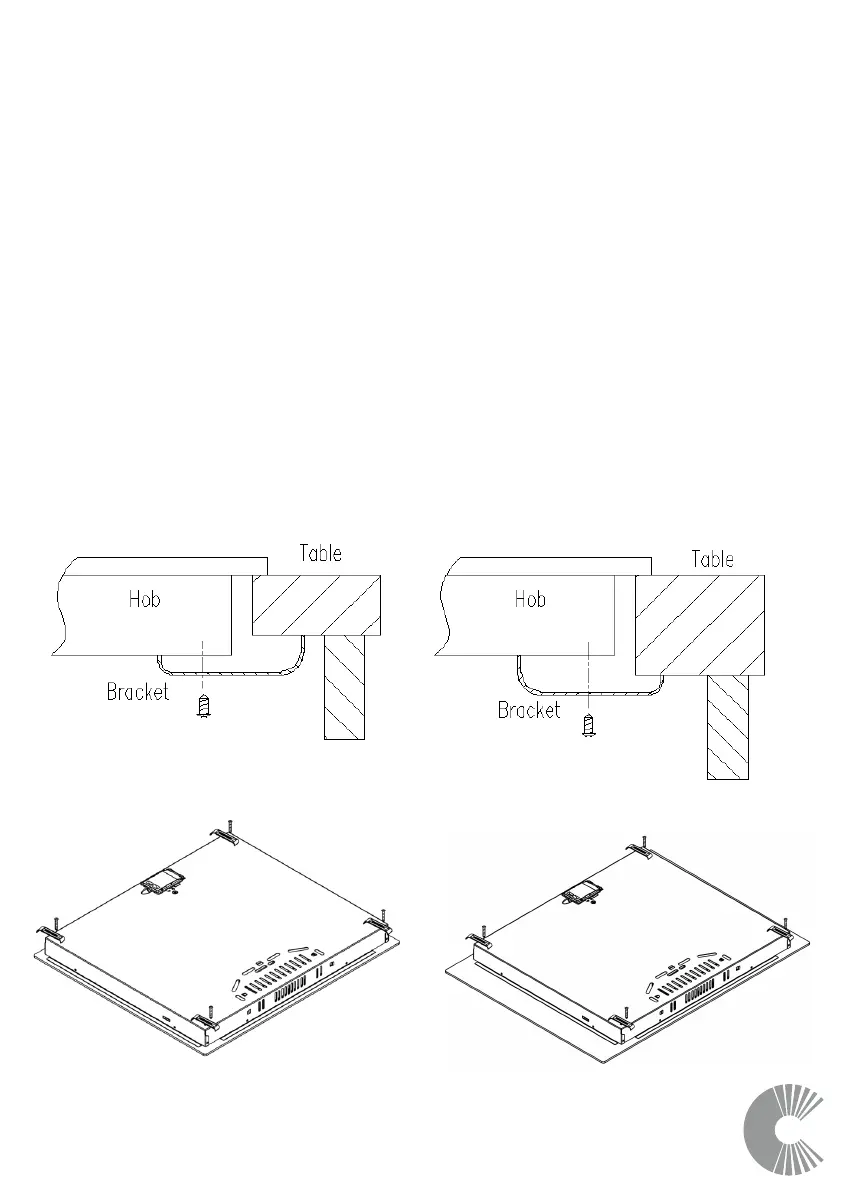

Locating the fixing brackets
• Fix the hob on the work surface by screwing the four brackets on the bottom of
hob after installation.
• Adjust the bracket position to suit for different work surface’s thickness.
• Ensure the hob sits flat and square to the work surface and doesn’t slide around.
• Turn the unit over and carefully attach the foam seal to the underside
edge of the glass.
Fitting the foam seal
TGGCE64-5
TGGCE74
