Connecting the record player
Connection to the amplifier

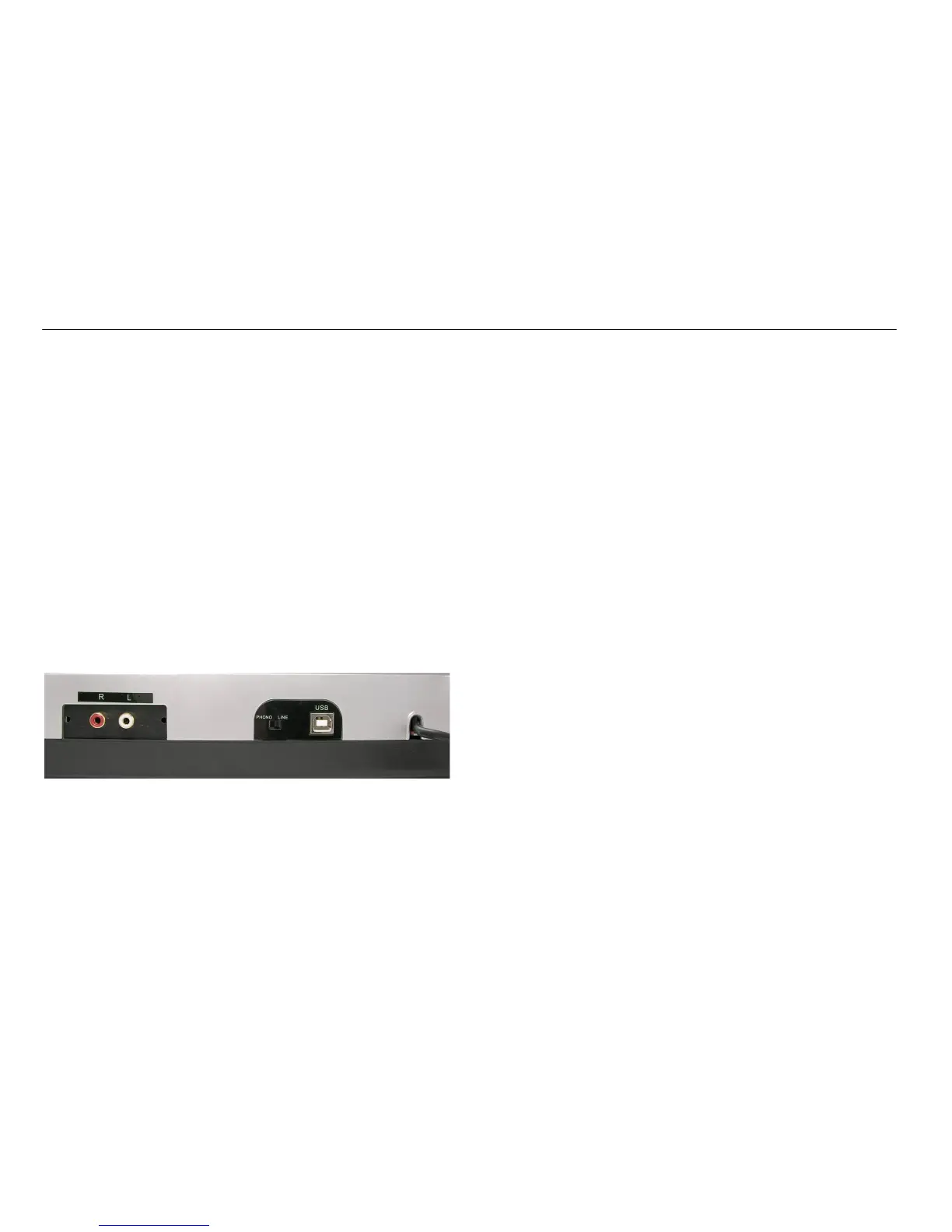

Š Connect the audio cable to the RCA OUTPUT jacks
22 and the LINE/AUX or phono jacks on the
amplifier.
Note:
Make sure that you make the correct left and right
channel connections (red = right channel, white = left
channel).
Connection to the computer
Š Connect the USB terminal 20 with a free USB port on
your computer. Follow the instructions on p. 20.
Mains connection
Š Push the mains plug into a socket.
How to set the PHONO/LINE switch
Š Move the PHONO/LINE switch 21 to PHONO if the
record player is connected to the PHONO jack.
Š Move the PHONO/LINE switch 21 to LINE if the record
player is connected to the LINE jack (or AUX or
AUDIO).
