TechniSat TechniStar S2 How-To

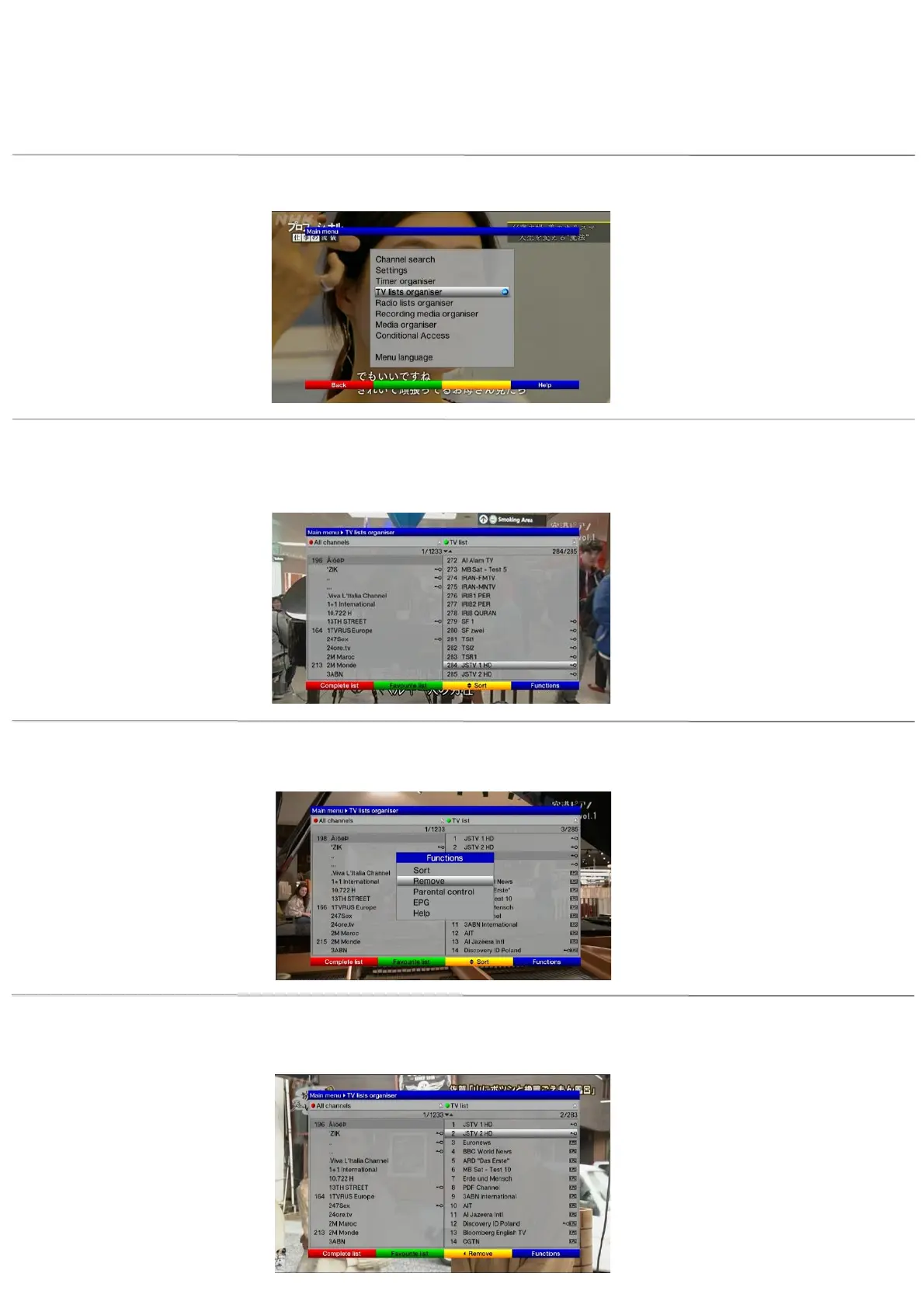

How to remove the old channels
(This procedure will take approximately 5 minutes)
2
3
1
When the TV list organizer menu screen appears, make sure the cursor is on the right side of the screen.
If the cursor is on the left side, press the green button and move the cursor to the TV list on the right.
Press the Menu button on your remote control to show the Main menu on your screen.
Using the arrow button, select TV list organizer (fourth item on the list) and press the OK button.
4
Move the cursor to JSTV 1 and press the blue button on your remote control. A small window will
appear on the screen.
5
Select Remove by using the arrow buttons on your remote control and press the OK button.
Then press the yellow button, and the channel JSTV1 will be removed.)

TechniSat TechniStar S2 Specifications

General

Audio output channels	- channels
Power output per channel (20-20KHz@8 Ohm)	- W
PC in (D-Sub)	No
USB ports quantity	3
S-Video inputs quantity	0
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Speakers connectivity type	-
Audio formats supported	MP2, MP3
Image formats supported	JPG
Video formats supported	TS, VOB
Ethernet LAN	Yes
Product color	Black
Audio decoders	Dolby Digital Plus
Input frequency range	950 - 2150 MHz
Video compression formats	MPEG2
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, GRE, HUN, ITA, POL, POR, RUS, SWE, TUR
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 75 %
Package weight	1600 g

Weight and Dimensions

Depth	135 mm
Width	280 mm
Height	37 mm
Weight	600 g
