Program 432: Pump A1 runs when:
 S1 is greater than the threshold min1  and S1 is greater than S2 by the difference diff1
 and S2 has not exceeded the threshold max1.
The feed pump A2 runs when:
 S3 is greater than the threshold min2  and S3 is greater than S4 by the difference diff2
 and S4 has not exceeded the threshold max2.
Output A3 switches on when S5 falls below threshold min3.
Output
A3 switches off (dominant) when S4 exceeds max3.
A1 = S1 > (S2 + diff1) & S1 > min1 & S2 < max1
A2 = S3 > (S4 + diff2) & S3 > min2 & S4 < max2
A3 (on) = S5 < min3 A3 (off) = S4 > max3
Program 433:
Pump
A1 runs when:
 S1 is greater than the threshold min1  and S1 is greater than S2 by the difference diff1
 and S2 has not exceeded the threshold max1.
The feed pump A2 runs when:
 S3 is greater than the threshold min2  and S3 is greater than S2 by the difference diff2

and S2 has not exceeded the threshold max2.
Output A3 switches on when S5 falls below threshold min3.
Output
A3 switches off (dominant) when S4 exceeds max3.
A1 = S1 > (S2 + diff1) & S1 > min1 & S2 < max1
A2 = S3 > (S2 + diff2) & S3 > min2 & S2 < max2
A3 (on) = S5 < min3 A3 (off) = S4 > max3
All programs +2:
The burner requirement (A3) only occurs via sensor S5.
A3 (on) = S5 < min3 A3 (off) = S5 > max3 (dominant)
All programs+4: if sensor S2 has reached the threshold max1 pump A2 is activated and
pump
A1 continues running. A "cooling function" to the boiler or the heating is thereby
achieved without the occurrence of standstill temperatures at the collector.
All programs +8: An active solar circuit blocks the burner requirement. After switching off the
solar circuit the release of the requirement occurs with a delay of 5 minutes.

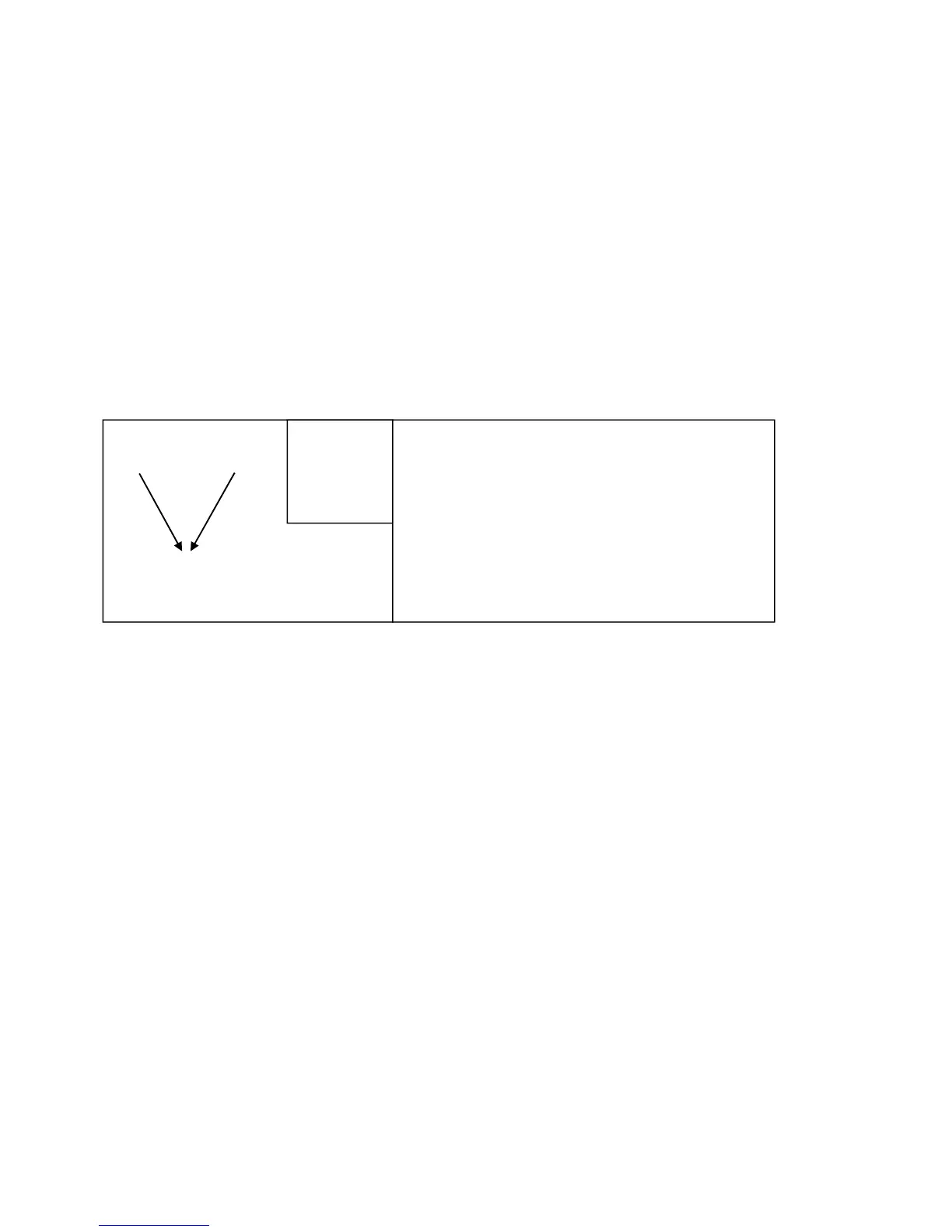

S1 S3
min1 min2
S2
max1
max2
diff2
A2
diff1
A1
Burner
A3
S5 min3
S4 max3
Required settings:
max1 … limit CYL S2  A1
max2 … limit CYL S2  A2
max3 … burner req. off CYL S4  A3
min1 … switch-on temp. coll.1 S1  A1
min2 … switch-on temp. boiler 2 S3  A2
min3 … burner req. on CYL S5  A3
diff1 … coll. S1 – CYL S2  A1
diff2 … boiler S3 – CYL S2  A2
