73
Time window TIME W (3 times)
Setting of 3 time windows
A total of 3 time windows are available.
For each time window, the outputs that affect the window can be freely set.
Each output can have up to 3 time windows assigned to it.
If an output is released in a time
window (between the switch-on / off times), the remaining time windows do not affect this
output any longer.
Assigned outputs Release time Block time

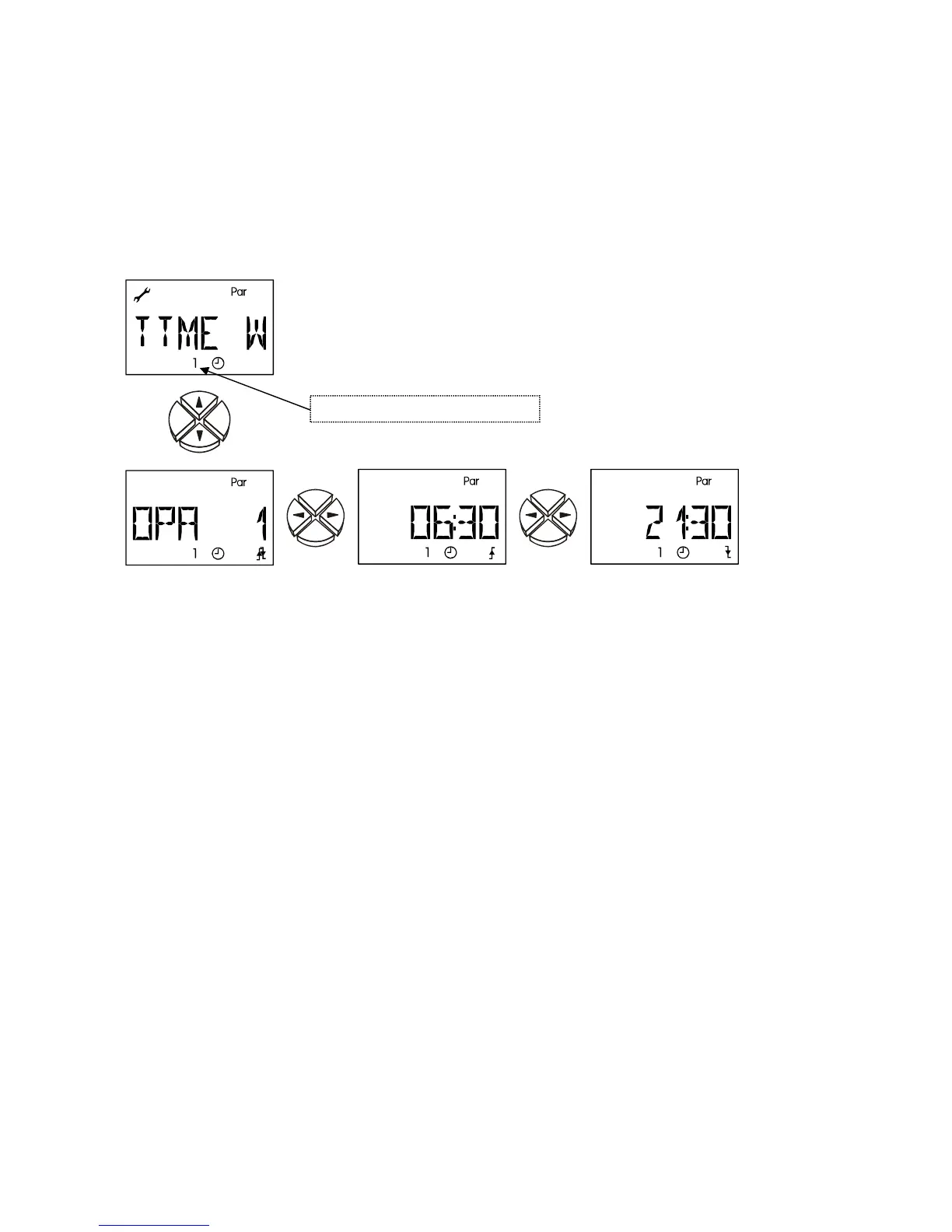

In the example, output 1 has been assigned to time window 1 (index). This output can be
switched between 06:30 AM and 09:30 PM.
The following outputs are assigned to the time window. (ex works = --)
OPA A (AND) In the time window the respective program determines the status of the
selected outputs. Outside the time window they are switched off.
OPO O (OR) The selected outputs are switched on in the time window. Outside the time
window the respective program determines the output status.
Setting range: Combination of all outputs (e.g. OP 1, OP 23, OP 123)
OPA 1 to OPA 123 and OPO 1 to OPO 123
OP -- = no output (time window disabled)
The time at which the set outputs are allowed (ex works = 00:00 AM)
Setting range: 12:00 AM to 11:50 PM in increments of 10 min
The time at which the set outputs are blocked (ex works = 00:00 AM)
Setting range: 12:00 AM to 11:50 PM in increments of 10 min
Number of the time window
