Technische Alternative UVR61-3 User Manual

52
Program 608 - 2 generators on 2 consumers + burner requirement
No diagram available!
Program 608: Pump A1 runs when:
 S1 is greater than the threshold min1  and S1 is greater than S3 by the difference diff1
 and S3 has not exceeded the threshold max1.
or
 S2 is greater than the threshold min2  and S2 is greater than S3 by the difference diff1
 and S3 has not exceeded the threshold max1.
Pump A2 runs when:
 S1 is greater than the threshold min1  and S1 is greater than S4 by the difference diff2
 and S4 has not exceeded the threshold max2.
or
 S2 is greater than the threshold min2  and S2 is greater than S4 by the difference diff2
 and S4 has not exceeded the threshold max2.
Output A3 switches on when S6 falls below threshold min3.
Output
A3 switches off (dominant) when S5 exceeds max3.
A1 = S1 > (S3 + diff1) & S1 > min1 & S3 < max1
or S2 > (S3 + diff1) & S2 > min2 & S3 < max1
A2 = S1 > (S4 + diff2) & S1 > min1 & S4 < max2
or S2 > (S4 + diff2) & S2 > min2 & S4 < max2
A3 (on) = S6 < min3 A3 (off) = S5 > max3
Program 609: The burner requirement (A3) only occurs via sensor S6.
A3 (on) = S6 < min3 A3 (off) = S6 > max3 (dominant)
Program 610: As with program 608, but the burner requirement (A3) comes from S2 and S5
A3 (on) = S2 < min3 A3 (off) = S5 > max3 (dominant)

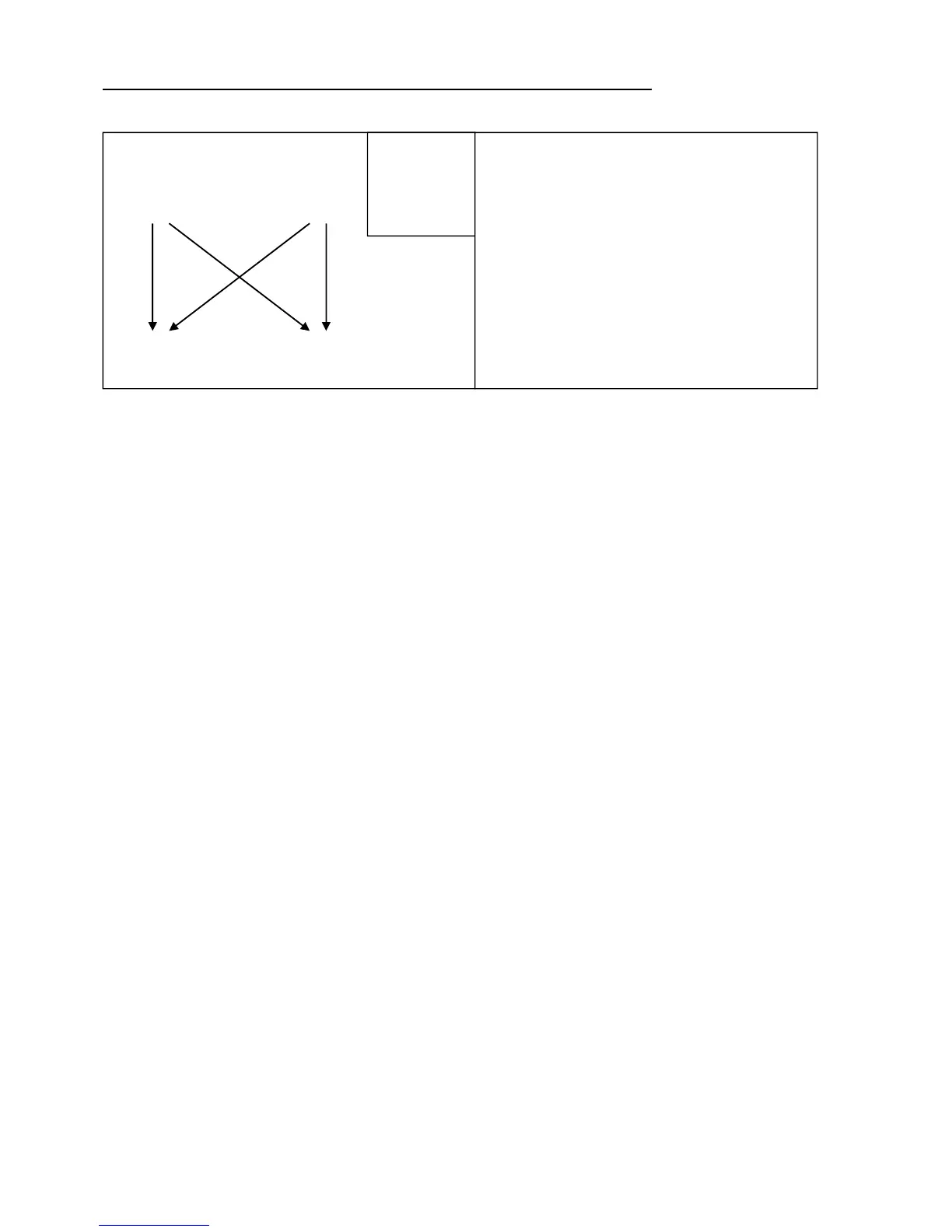

S1 S2
min1 min2
S3 S4
max1 max2
Burner
A3
S6 min3
S5 max3
Required settings:
max1 … limit CYL 1 S3  A1
max2 … limit CYL 2 S4  A2
max3 … burner req. off S5  A3
min1 … switch-on t. boiler1 S1  A1
min2 … switch-on t. boiler2 S2  A2
min3 … burner req. on S6  A3
diff1 … boiler1 S1 – CYL 1 S3  A1
… boiler2 S2 – CYL 1 S3  A1
diff2 … boiler1 S1 – CYL 2 S4  A2
… boiler2 S2 – CYL 2 S4  A2
diff1
A1
diff1
A1
diff2
A2
diff2
A2
