Program 611:
As with program 608, but the burner requirement (A3) comes from sensor S2.
A3 (on) = S2 < min3 A3 (off) = S2 > max3 (dominant)
Program 612:
As with program 608, but the burner requirement (A3) comes from S4 and S5.
A3 (on) = S4 < min3 A3 (off) = S5 > max3 (dominant)
Program 613:
As with program 608, but the burner requirement (A3) comes from sensor S4.
A3 (on) = S4 < min3 A3 (off) = S4 > max3 (dominant)
All programs +8:
The pump A1 runs if:
 S1 is greater than threshold min1  and S1 is higher than S3 by the difference diff1
 and S3 has not exceeded threshold max1.
or
 S1 is greater than threshold min1  and S1 is higher than S4 by the difference diff1
 and S4 has not exceeded threshold max2.
The pump A2 runs if:
 S2 is greater than threshold min2  and S2 is higher than S3 by the difference diff2
 and S3 has not exceeded threshold max1.
or
 S2 is greater than threshold min2  and S2 is higher than S4 by the difference diff2
 and S4 has not exceeded threshold max2.
A1 = S1 > (S3 + diff1) & S1 > min1 & S3 < max1
or S1 > (S4 + diff1) & S1 > min1 & S4 < max2
A2 = S2 > (S3 + diff2) & S2 > min2 & S3 < max1
or S2 > (S4 + diff2) & S2 > min2 & S4 < max2

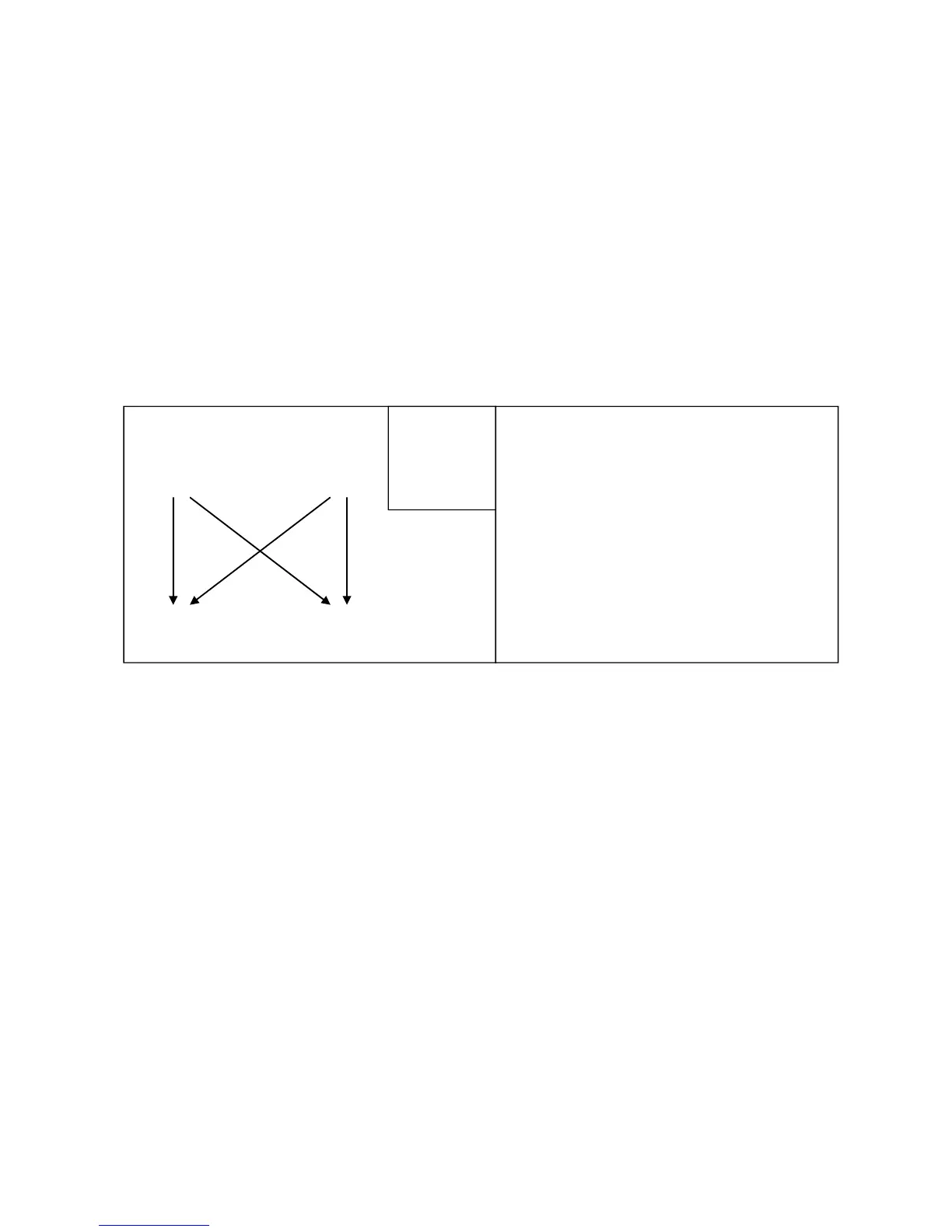

S1 S2
min1 min2
S3 S4
max1 max2
Burner
A3
S6 min3
S5 max3
Required settings:
max1 … limit CYL 1 S3  A1,  A2
max2 … limit CYL 2 S4  A1,  A2
max3 … burner req. off S5  A3
min1 … switch-on t. boiler1 S1  A1
min2 … switch-on t. boiler2 S2  A2
min3 … burner req. on S6  A3
diff1 … boiler1 S1 – CYL 1 S3  A1
… boiler1 S1 – CYL 2 S4  A1
diff2 … boiler2 S2 – CYL 1 S3  A2
… boiler2 S2 – CYL 2 S4  A2
diff2
A2
diff1
A1
diff2
A2
diff1
A1
