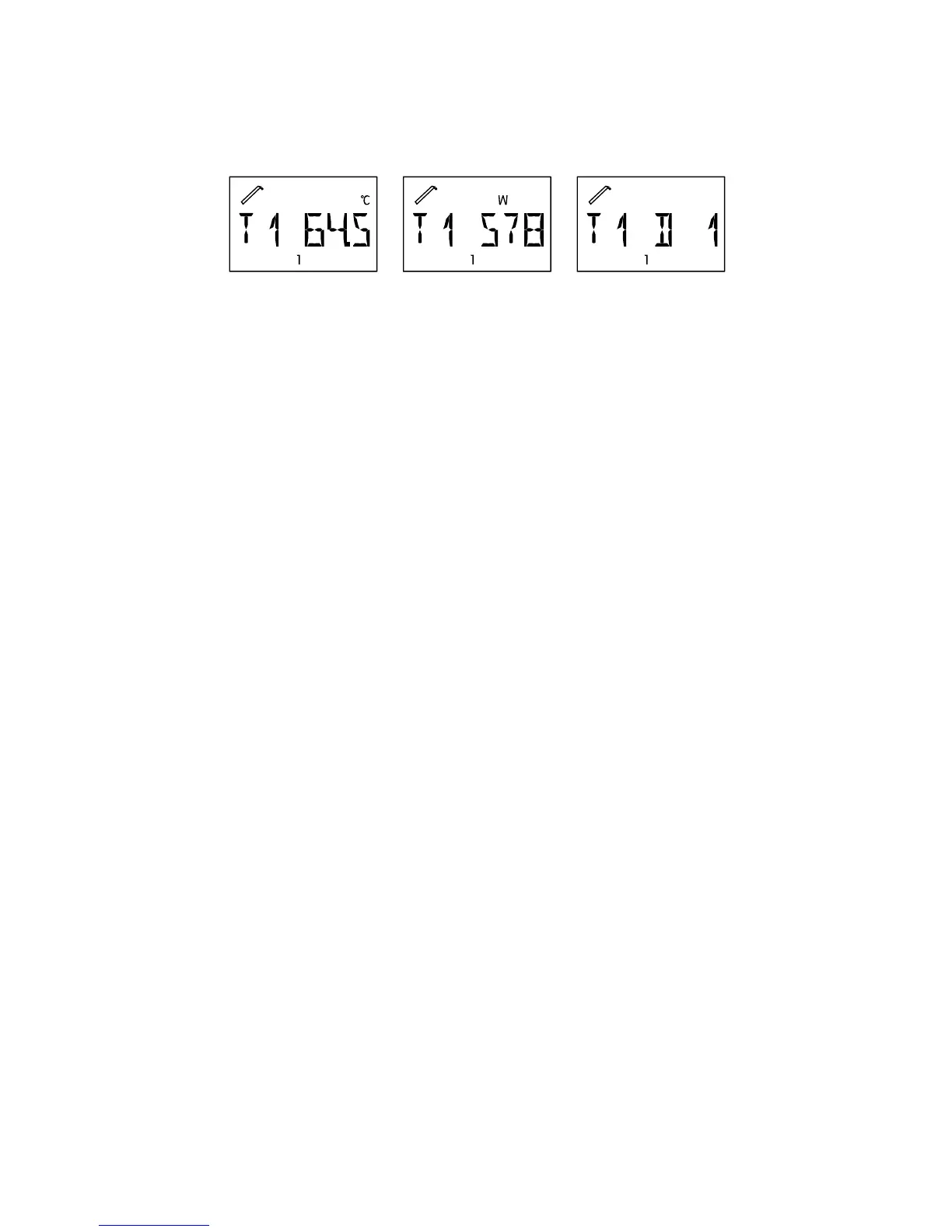

(radiation sensor)
Digital status 1 =
ON (digital input)
If in the
SENSOR menu (main menu ENTER/Men) one sensor is set to OFF, then
the value display of this sensor is displayed in the main level.
S6 Volume flow, shows the flow rate of the volume flow encoder in litres per hour
KM Wind velocity in km/h, if S6 is a wind sensor WIS01.
E1 to E9 Displays the values from external sensors which are read via the data link. Only
activated inputs are displayed.
ERR means that no valid value has been read. In this case the external value is
set to 0.
DAYS Legionella function: number of days, in which the required minimum temperature
was not attained in the cylinder. This menu item is only displayed, if the legionella
function is active.
SPS Speed stage, indicates the current speed stage. This menu item is only displayed
if the speed control is activated.
Display range: 0 = output is off
30 = speed control is running at the highest stage
ANL Analogue level, indicates the current analogue level of the 0-10V output. This
menu item is only displayed if a control output has been activated. The number of
control outputs is displayed below the text rows.
Display range: 0 = output voltage = 0V or 0% (PWM)
100 = output voltage = 10V or 100% (PWM)
kW The current output of the heat counter indicated in kW.
MWh Megawatt hours, indicates the megawatt hours of the heat counter.
kWh Kilowatt-hours, indicates the kilowatt-hours of the heat counter.
When 1000 kWh have been reached the counter restarts at 0 and the MWh are
increased by 1.
Menu items kW, MWh, kWh are only displayed if the heat quantity counter has
been activated. The number of heat quantity counters is displayed below the text
rows.
