90

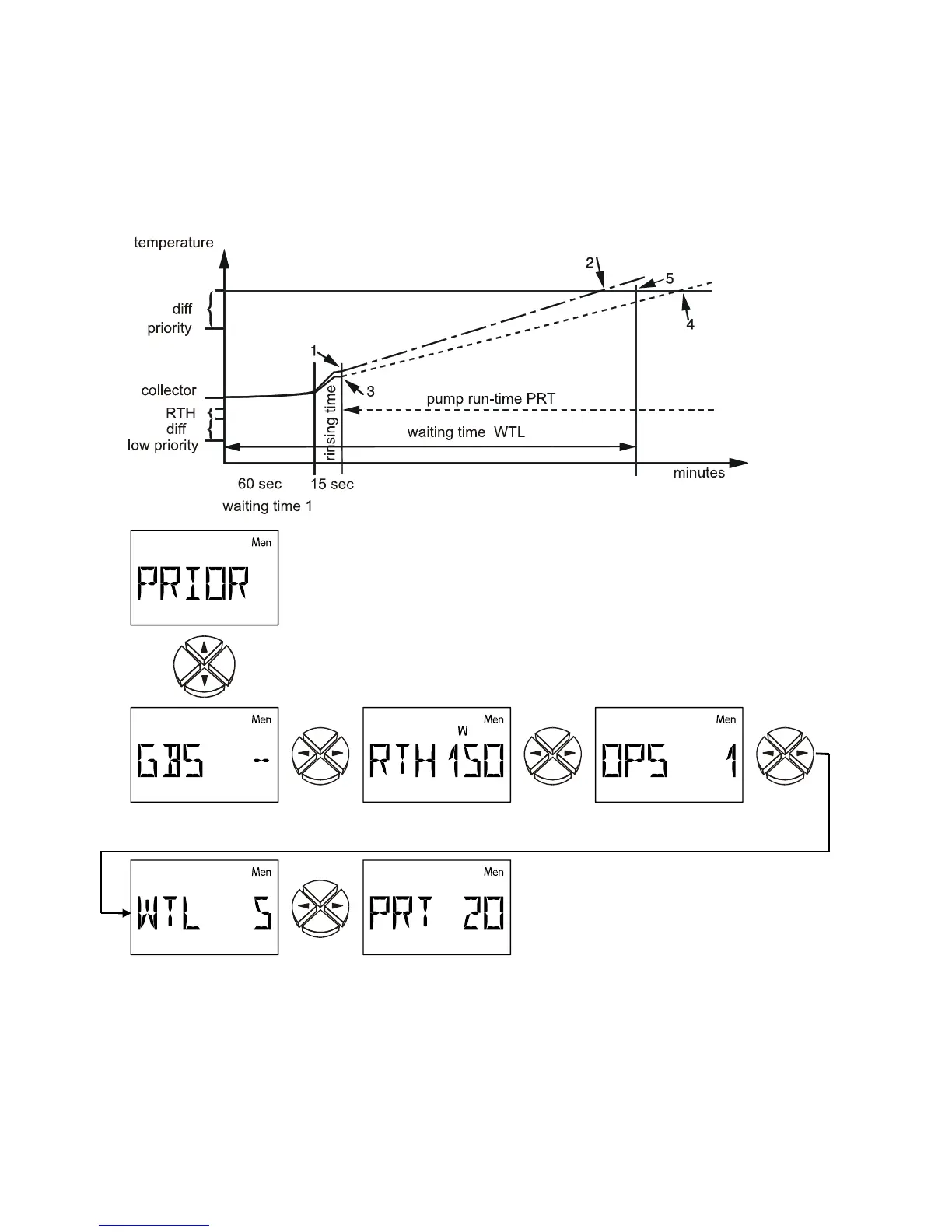

After the rinsing time (1, 3), the computer calculates the increase in collector temperature.
It detects whether the set waiting time WTL has been reached to heat the collector to the
priority temperature. In the second case, the unit waits until the priority has been reached to
switch. If the computer detects that the increase will not suffice within the WTL time (4, 5), it
discontinues the process and reactivates the time again after PRT.
At PRT=0, the low-
priority is only allowed when the maximum threshold for the priority is reached (=
absolute priority).
Radiation sensor Radiation
threshold
Rinse outputs
Waiting time Pump run-time of low-priority
GBS Radiation sensor GBS 01 - non-standard accessory: Indicates a sensor input if
a radiation sensor is used.
If the radiation sensor exceeds the radiation
threshold (RTH), the priority timer is launched. Without the radiation sensor, the
launch is based on the collector temperature. (ex works = --)
Setting range: S1 to S6 Input of radiation sensor
E1 to E9 Value of the external sensor
GBS -- no radiation sensor
