Easy Lamp: Service & maintenance manual – rev. 1.0\
Page 4.6

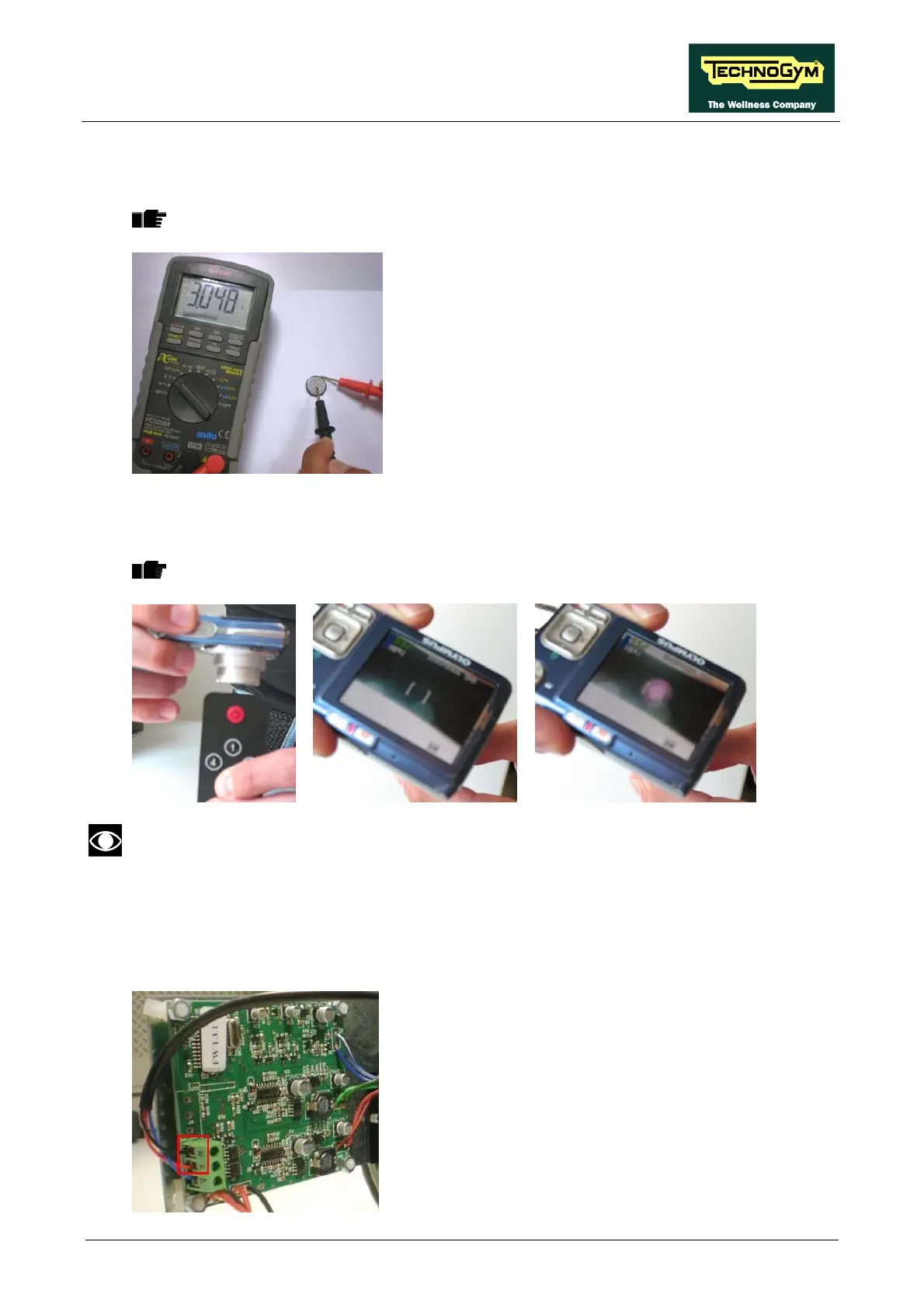

(7) Check the remote control Lithium battery as showed in the picture below.
Full battery is about 3,3Vdc.
(8) Place the remote control infrared led transmitter just in front of a camera lens and press a
button. If it works, by the camera screen, you can see the light as showed in the picture below.
You can also use the mobile phone camera.
Button not pressed Button pressed
You can also do the same check, by measuring remote control pulses, between black
(R1) and blue (R3) remote control sensor cables (see 2.6.3 paragraph).
(9) By using a multimeter, check the power supply voltage provided from the electronic board, to
the remote control sensor, between black (R1) and red (R2) cables, in the green connector
highlighted in the picture below. You should measure about 4,8Vdc.
