ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 3.10
3.6. MACHINE SECURING
WARNING: it is necessary that some machines detailed below, are fixed to the wall or
ceiling, for their particular shape and / or how to use.
3.6.1. FIXING A WALL: ERCOLINA, ERCOLINA REHAB E CROSS CABLES
1. Insert the screws (a) in frame holes (b) as indicated in the figure,
2. insert brackets (c) and washers (d) in the protruding screw section,
The brackets may be rotated around the fastening axis to facilitate sub sequent wall-
fastening and then repositioned correctly.
3. tighten the brackets slightly using selflocking nuts (e) to hold them in position,

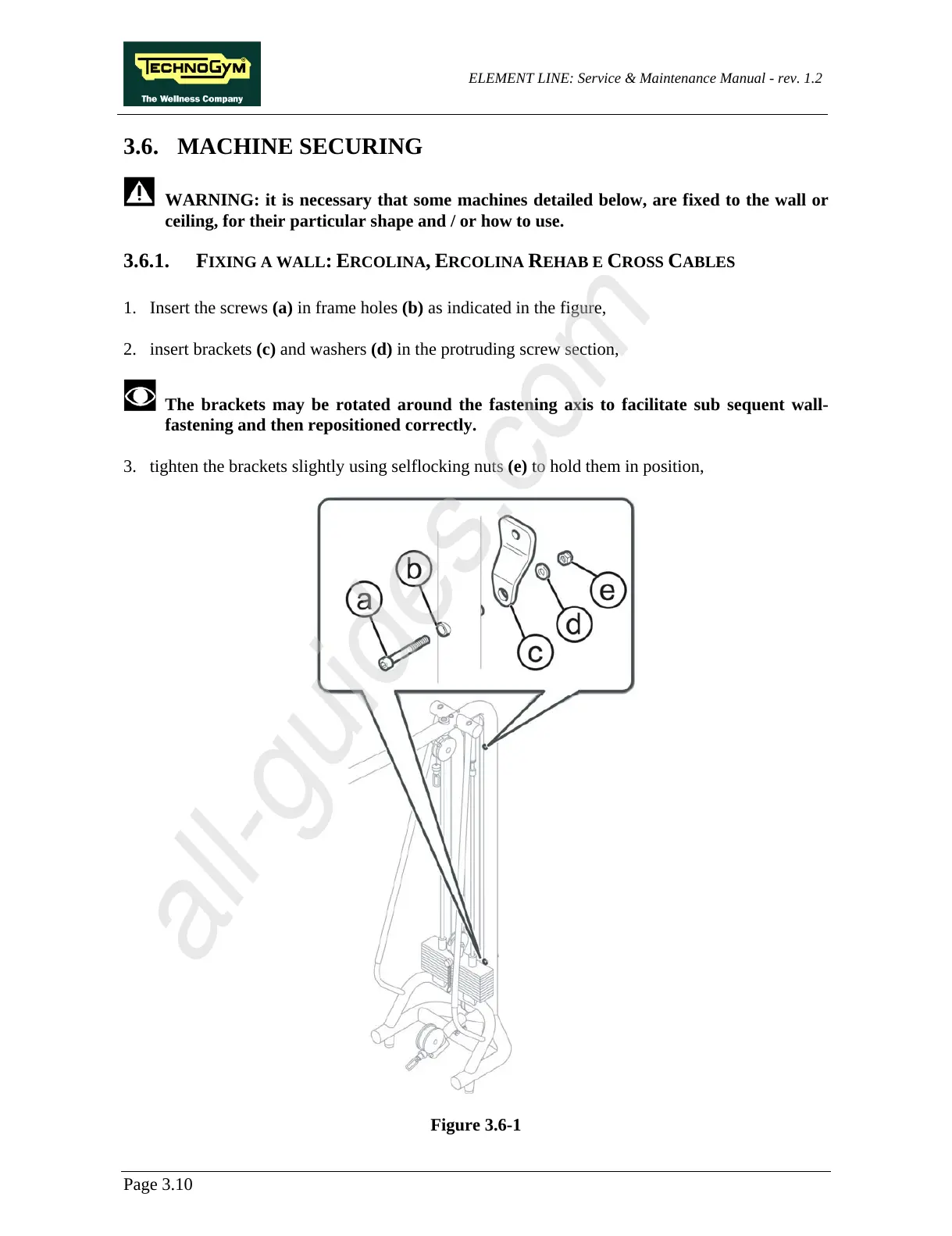

Figure 3.6-1
