ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
Page 5.1

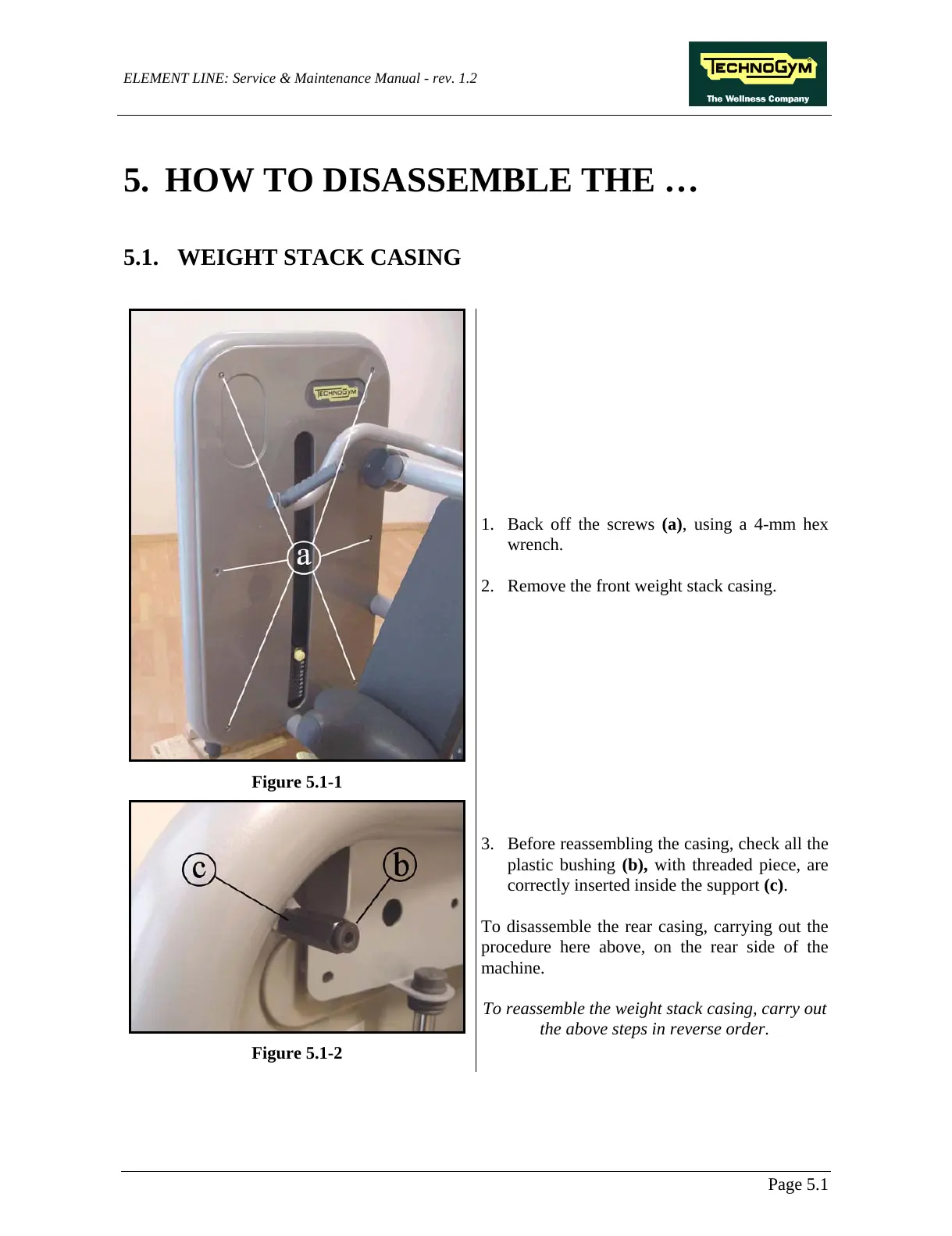

5. HOW TO DISASSEMBLE THE …
5.1. WEIGHT STACK CASING
Figure 5.1-1
1. Back off the screws (a), using a 4-mm hex
wrench.
2. Remove the front weight stack casing.
Figure 5.1-2
3. Before reassembling the casing, check all the
plastic bushing (b), with threaded piece, are
correctly inserted inside the support (c).
To disassemble the rear casing, carrying out the
procedure here above, on the rear side of the
machine.
To reassemble the weight stack casing, carry out
the above steps in reverse order.
