Technogym GROUP CYCLE - Adjusting Belt Tension

14
F
E
H
A
B
C
C
D
G
C
Group Cycle

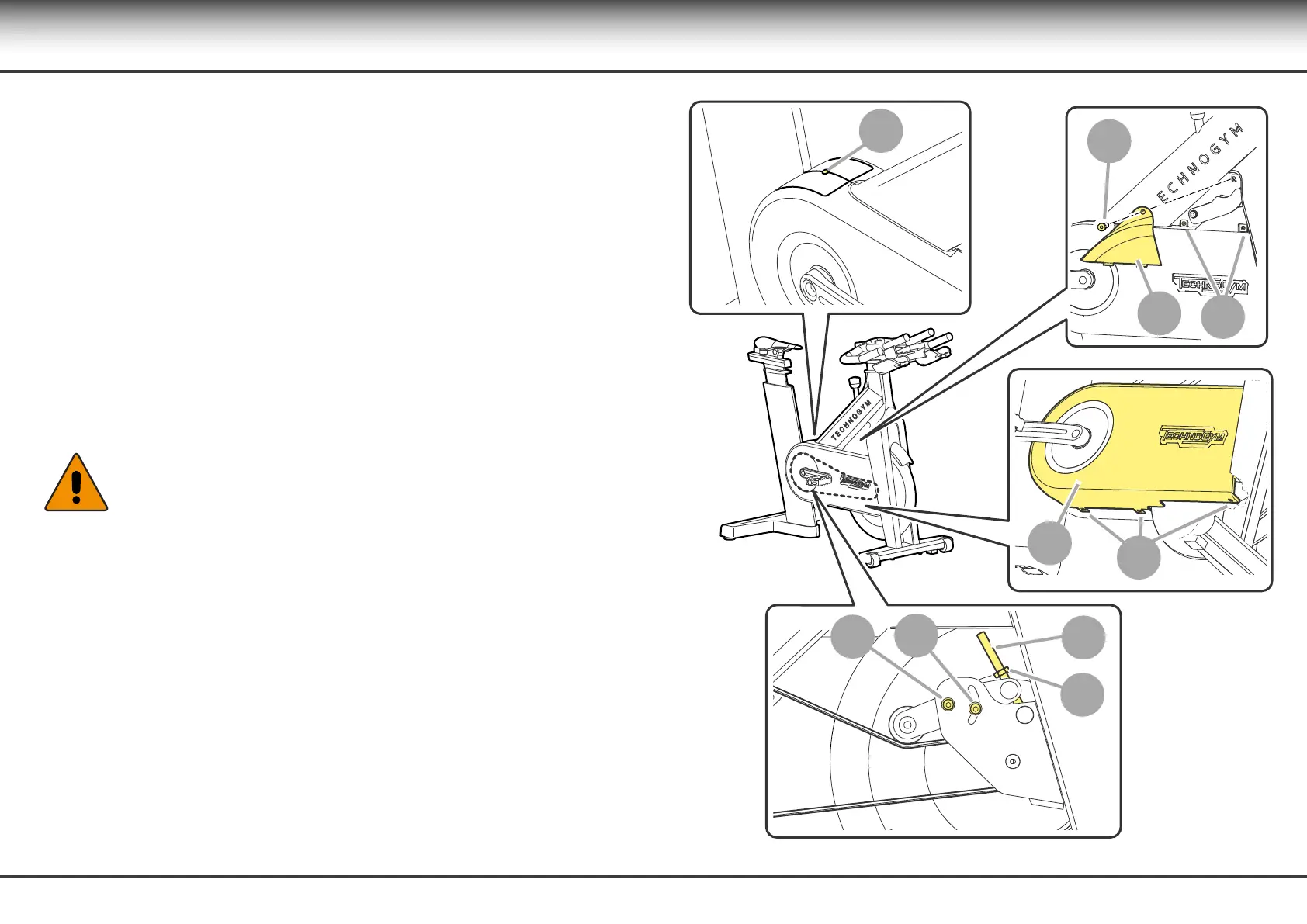

Adjusting the belt tension.
To adjust belt tension, proceed as follows:
- undo the screw (A) and remove the safety guard (B);
- undo the screw (C) and remove the safety guard (D);
- using a 5 mm hex wrench slacken the screws (E) and (F);
- using a 17 mm wrench slacken the lock nut (G) on the belt adjustment
screw (H);
- to tighten the belt, tighten the screw (H);
- to slacken the belt, slacken the screw (H);
- tighten the lock nut (G), and the screws (E) and (F);
- ret the safety guards (B) and (D).
W
Do not over-tighten the belt. Excessive tension on the belt
shortens its lifetime.
The correct tension of the belt is 94 ± 5 Hz.
