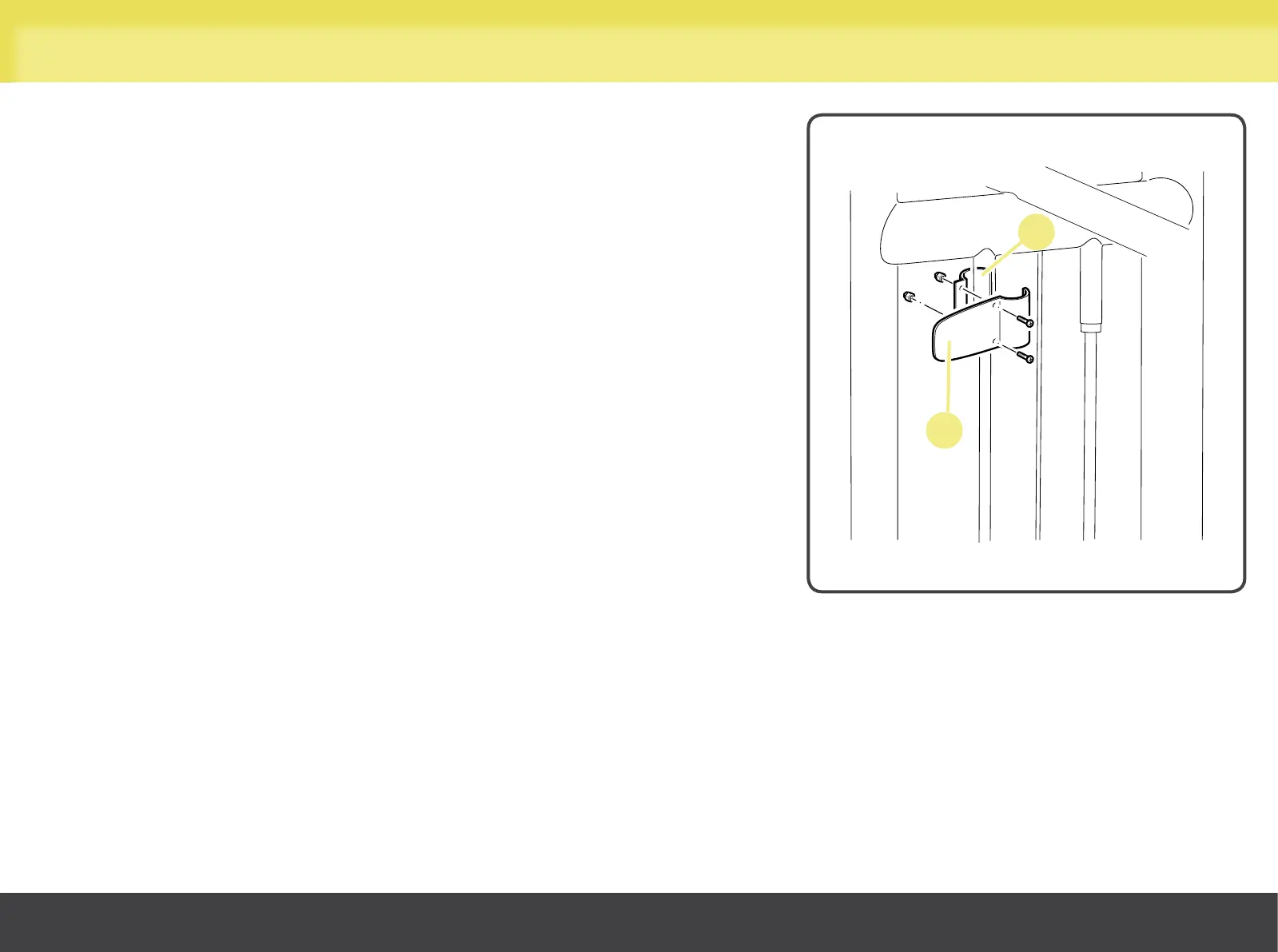

Fitting the number holder
The number holder must be fixed immediately underneath the cross-bars: standing
facing the equipment, attach the number holder to the left tube supporting the
guide rail, so that it is flush with the rubber stop on the guide rail.
The number holder is made up of two sections: the larger section (A) must be
placed at the front; the curved closing section (B) must be placed at the back of
the equipment.
Insert the two screws (Tbic M5x6 Z) from the front of the equipment, coupling them
with the two M5 cap nuts at the rear; then tighten the nuts using the appropriate
spanners.
The number holder is optional.
