Low Row
A
D
C
B
E

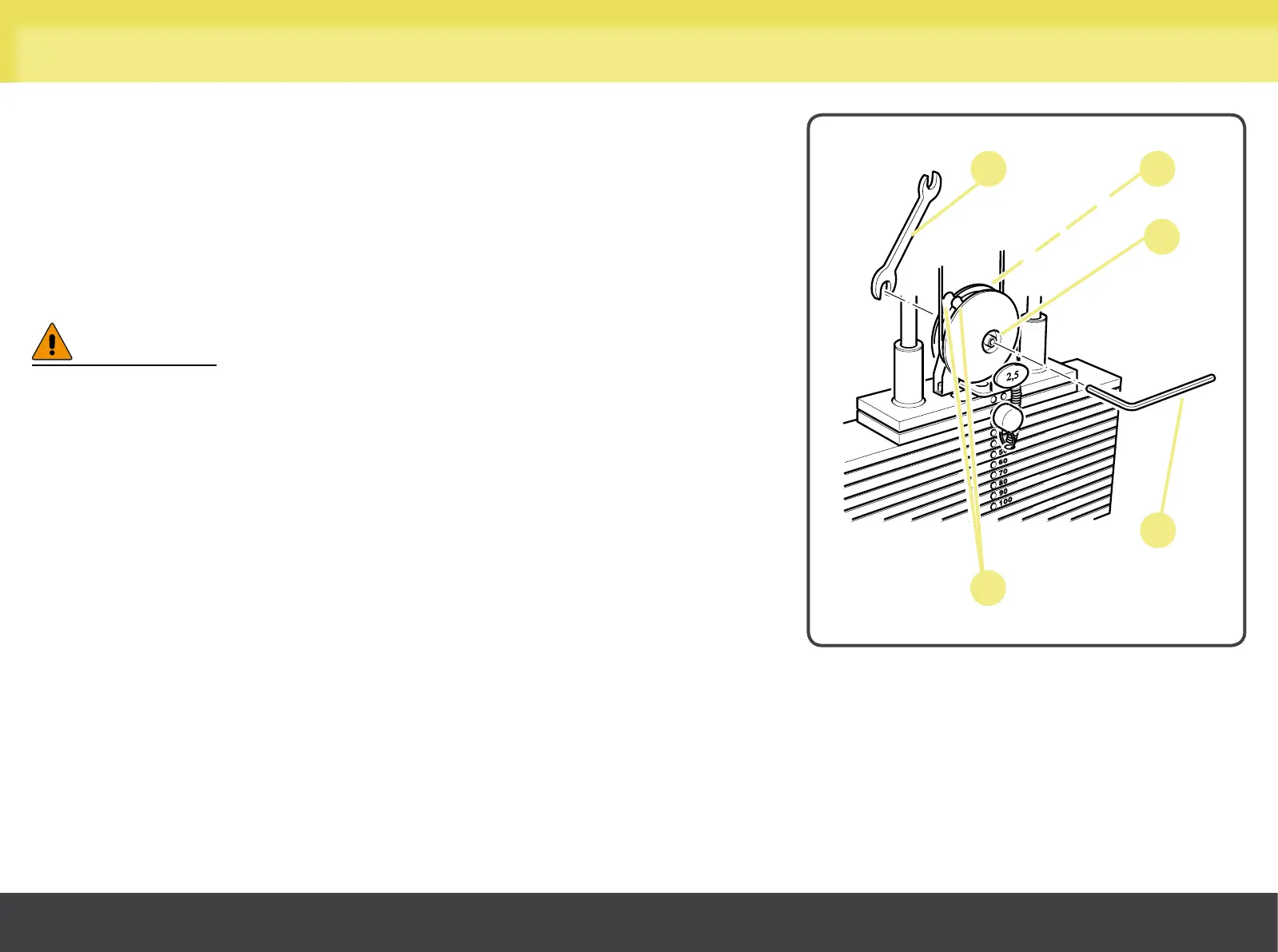

Adjusting cable tension
To take up some of the slack in the weight stack cable proceed as follows:
- remove the front protective panel on the weight stack;
- use an Allen key (A) and an open spanner (B);
loosen nut (C) securing screw (D) by half a turn in an anticlockwise direction;
- simultaneously turn both housings of the pulley, clockwise to tighten the cable
or anticlockwise to loosen it;
WARNING
Both housings must be turned the same distance on their respective
sides: to do this, constantly check that tabs (E) remain perfectly aligned.
- after completing the operation, tighten nut (C) to secure screw (D);
- refit the front protective panel on the weight stack.
