Techpro TRIDVR-ELE4ME - Rear Panel

59

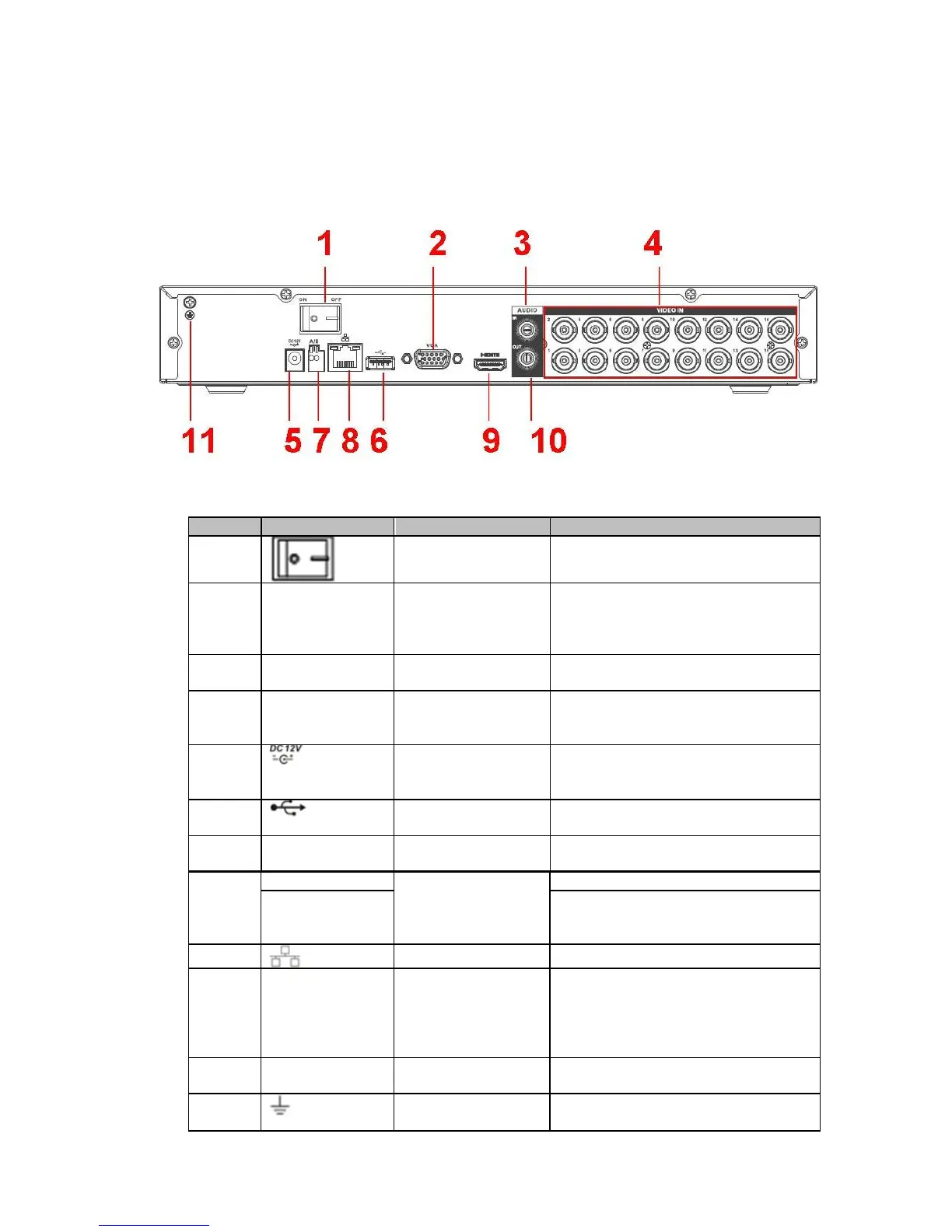

Figure 2-40
Please refer to the following sheet for detailed information.
SN Icon Name Note
1
Power on-off button Power on/off button.
2 VGA VGA video output
port
VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
3 AUDIO IN Audio input port Connect to audio input device such
as speaker.
4 VIDEO IN Video input port Connect to analog camera, video
input signal.
5
Power input port Input 12V DC.
6 USB2.0 port Connect to USB storage device,
mouse, burning DVD-ROM and etc.
7 A
RS485（RS-485）
RS485_A port. It is the cable A. You
can connect to the control devices
Rear Panel
communication port such as speed dome PTZ.
B RS485_B.It is the cable B. You can
connect to the control devices such
as speed dome PTZ.
8 Network port
100M Ethernet port
9 HDMI definition High
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
10 AUDIO OUT Audio output port Connect to video output device such
as sound box.
11 GND Ground end
TRIDVR-ELE4ME
TRIDVR-ELE8ME
TRIDVR-ELE16ME
