Chapter 2 Overview of DVR

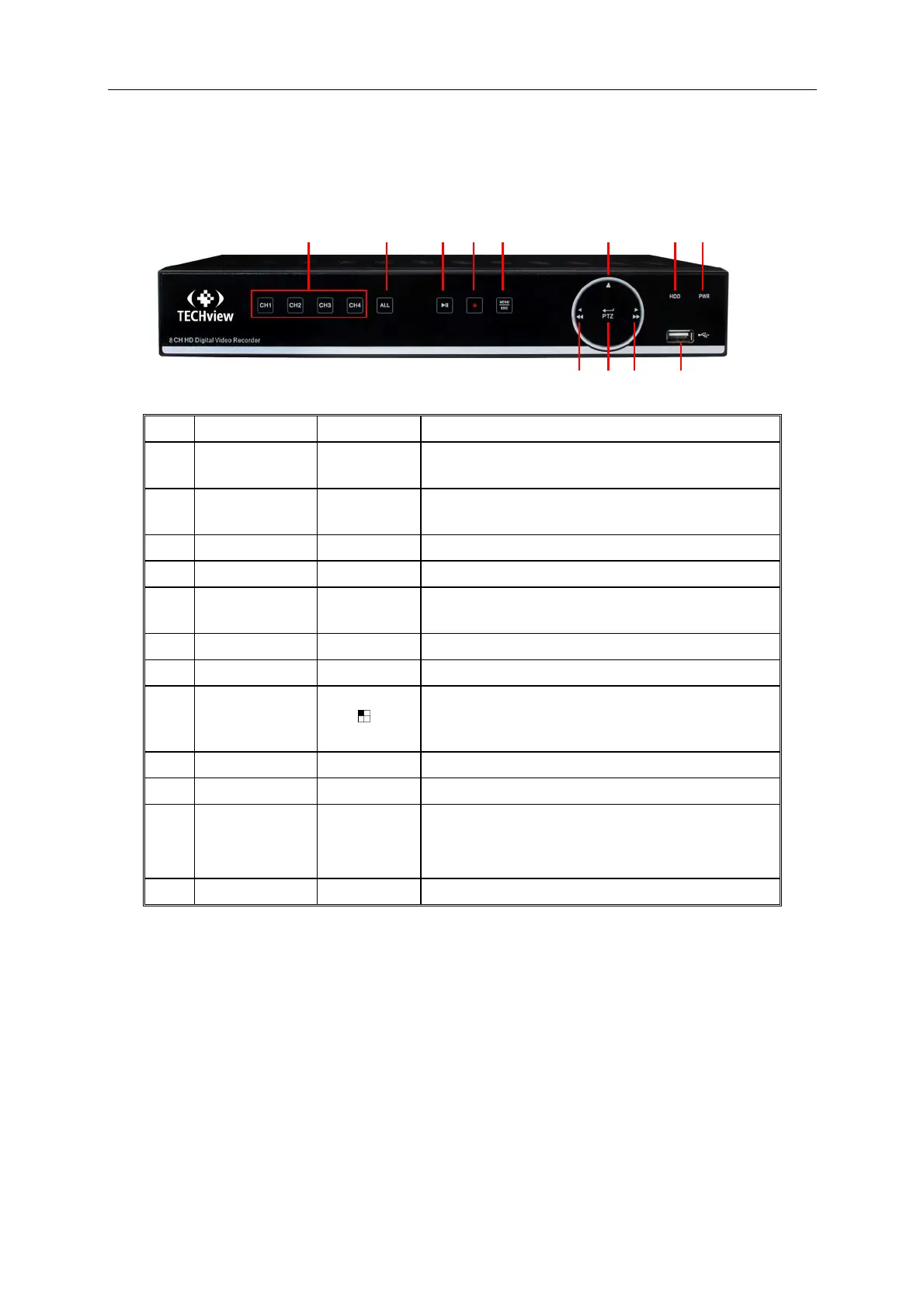

2.1 Front Panel
SN Key or indicator Identification Functions
1 Power indicator PWR
If the “Green” indicator is on, DVR is getting power
normally.
2 HDD indicator HDD
If the “Red” indicator flashes, the hard drive is being
read or written to.
3 Up key  Move up
4 Menu key MENU/ESC Enter into the main menu/Return
5
Manual
recording key
● Start manual recording
6 II
7
ALL
Multiple display mode
8
CH1 CH2
CH3 CH4
Single channel selection(4-Channel DVR)
9 USB USB port
10 Right key / Move right; Fast forward at various speed
11 Confirmation key PTZ
Enter into PTZ menu; Confirm operation; Edit
12 Left key / Move left; Fast backward at various speed
