English - 8 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.
Note: You can use YPbPr to VGA cable (not supplied) to enable YPbPr signal via PC input.
WARNING: You cannot use PC and YPbPr at the same time.
S/PDIF Coaxial Out5. outputs digital audio signals of the currently watched source.
Use an SPDIF coaxial cable to transfer audio signals to a device that has S/PDIF input
DC 12 V Input 6. is used for connecting the supplied power adaptor.
V+
V+
V-
V-
.

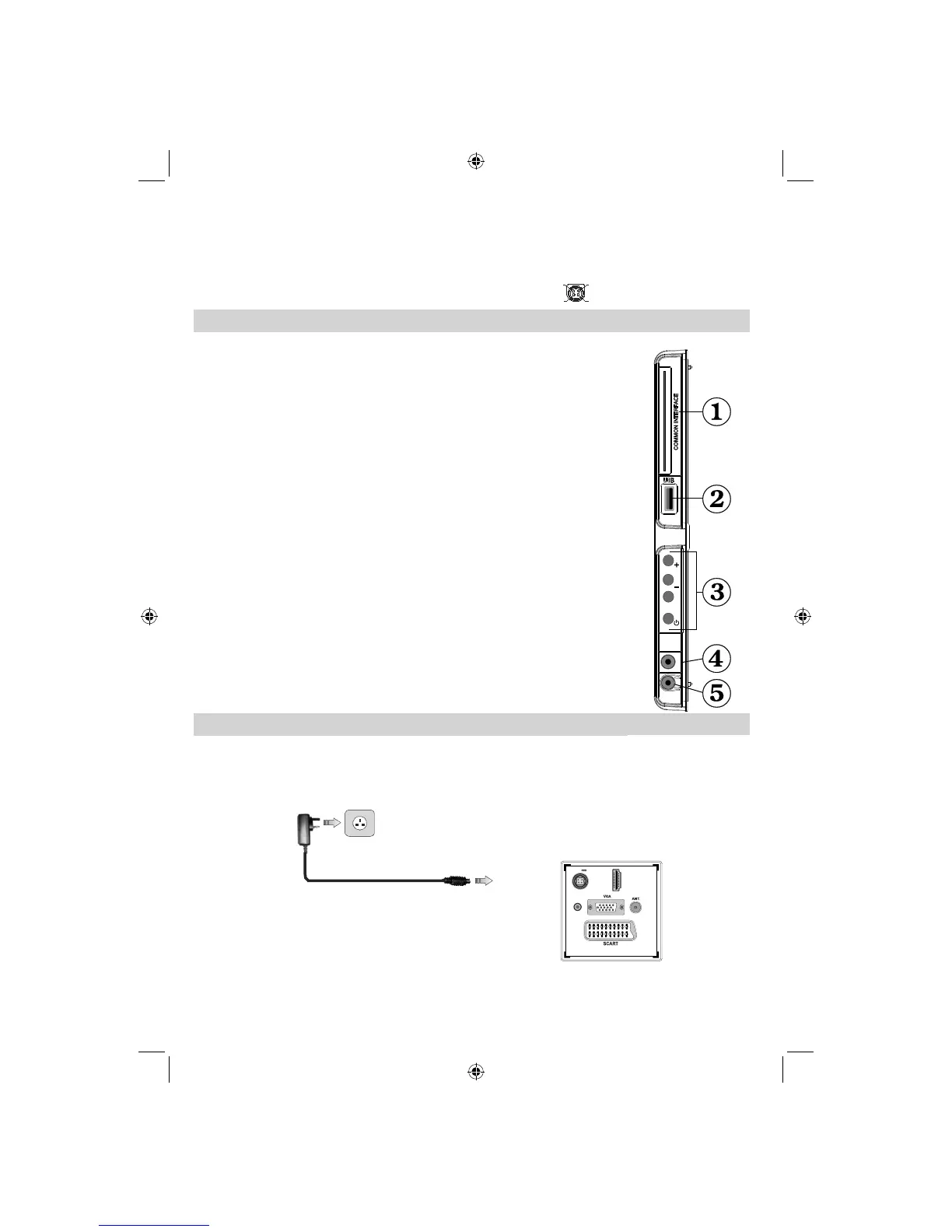

Viewing the Connections - Side Connectors
CI Slot is used for inserting a CI card. A CI card allows you to view all the 1.
channels that you subscribe to. For more information, see “Conditional Access”
section.
USB input.2.
TV control buttons.3.
Side audio-video connection4. input is used for connecting video and audio
signals of external devices. To make a video connection, you must use the
supplied AV connection cable for enabling connection. First, plug singular jack
of the cable to the TV’s Side AV socket. Afterwards, insert your video cable’s
(not supplied) connector into the YELLOW input of the supplied AV connection
cable. Colours of the connected jacks should match.
To enable audio connection, you must use RED and WHITE inputs of the side
AV connection cable supplied. Afterwards, insert your device’s audio cable’s
connectors into the RED and WHITE jack of the supplied side AV connection
cable. Colours of the connected jacks should match.
Note: You should use audio inputs of side AV connection cable (RED & WHITE)
to enable sound connection when connecting a device to your TV by using PC
or COMPONENT VIDEO input.
Headphone jack is used for connecting an external headphone to the system. 5.
Connect to the HEADPHONE jack to listen to the TV from headphones
(optional).
Power Connection
IMPORTANT: The TV set is designed to operate on 12 V DC. For this, an adaptor is used which gives
12 V voltage. Connect this adaptor to a system that supplies 110-240V AC,50/60Hz.
After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the •
mains .
AC adapter
To POWER
INPUT DC 12 V
terminal
HDM
I
1
SPDIF
Coax.OUT
12V
DC IN
USB
5Vdc
Max:500mA
P\V-AV
SIDE AV
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 800_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 8 27.12.2010 17:21:5427.12.2010 17:21:54
