DISMANTLING THE DOOR

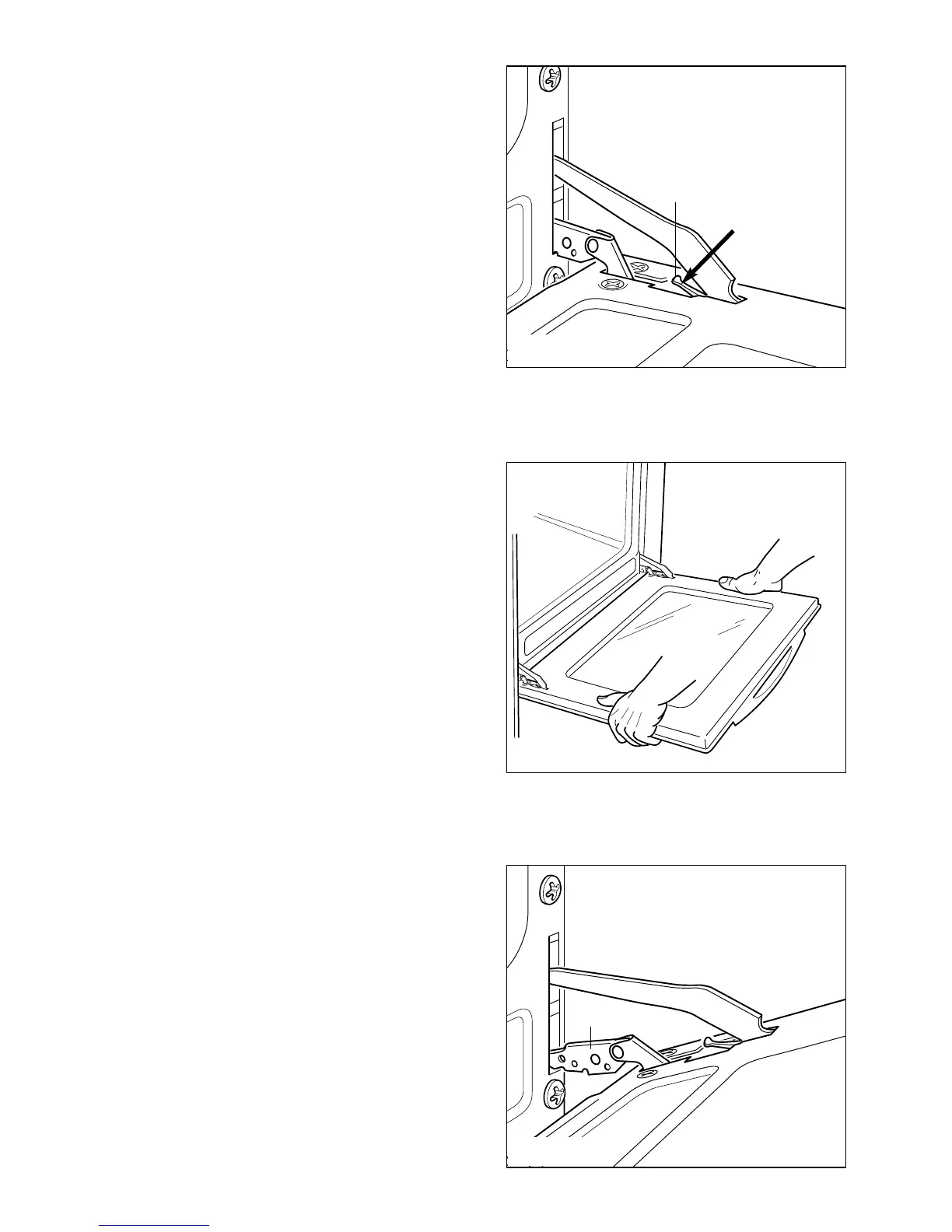

Please operate as follows:
– Open the door completely.
– Push down the lever “L” fig. 3.3 and,
keeping it in this position, slowly close
the door in order to block the hinge.
– Grip the door (as indicated in fig. 3.4)
and, while closing it, release the two
hinges as shown in fig. 3.5.
L
H
DOOR ASSEMBLY
– Grip the door with your hands placed
near the hinges and raise the levers
“H” with your forefingers (fig. 3.5)
– Insert the hinges in their position until
levers “H” are hooked.
– Open the door completely to obtain
the release of levers “L”.
Fig. 3.3
Fig. 3.4
Fig. 3.5
