Teco Electro Drives TSTA Series User Manual

5-21
5-3-10 Torque limit of speed control mode
In speed mode, the motor torque limit input contact TLMT could be used to select one of the two methods
below:
(1) Internal toque limit: Using default Cn010 (CCW Torque command limit ) and
Cn011(CW Torque command limit ).
(2) External analog command: Using two separate analog voltage command signals at input terminals
PIC(CN1-27) to limit CCW torque and NIC(CN1-28) to limit CW torque.
As shown in the table below:
Input contact
TLMT
CCW torque command limit
source
CW torque command limit
source
Control
mode
0
Cn010 Cn011
ALL
1
External analog command
PIC(CN1-27)
External analog command
NIC(CN1-28)
Pi/Pe/S
Note: Input contacts status “1” (ON) and “0” (OFF).
Please check 5-6-1 to set the required high /Low signal levels ( PNP/NPN) selection.
Caution!
To use external analog torque command limit , If analog torque command limit is greater than
internal torque command limit, the internal torque command limit has the priority over external
analog torque command limit.
Internal Torque command limit is set as below.
Parameter Name Default Unit Setting range
Control
mode
Cn010 CCW torque command limit 300 % 0~300 ALL
Cn011 CW torque command limit -300 % -300~0 ALL

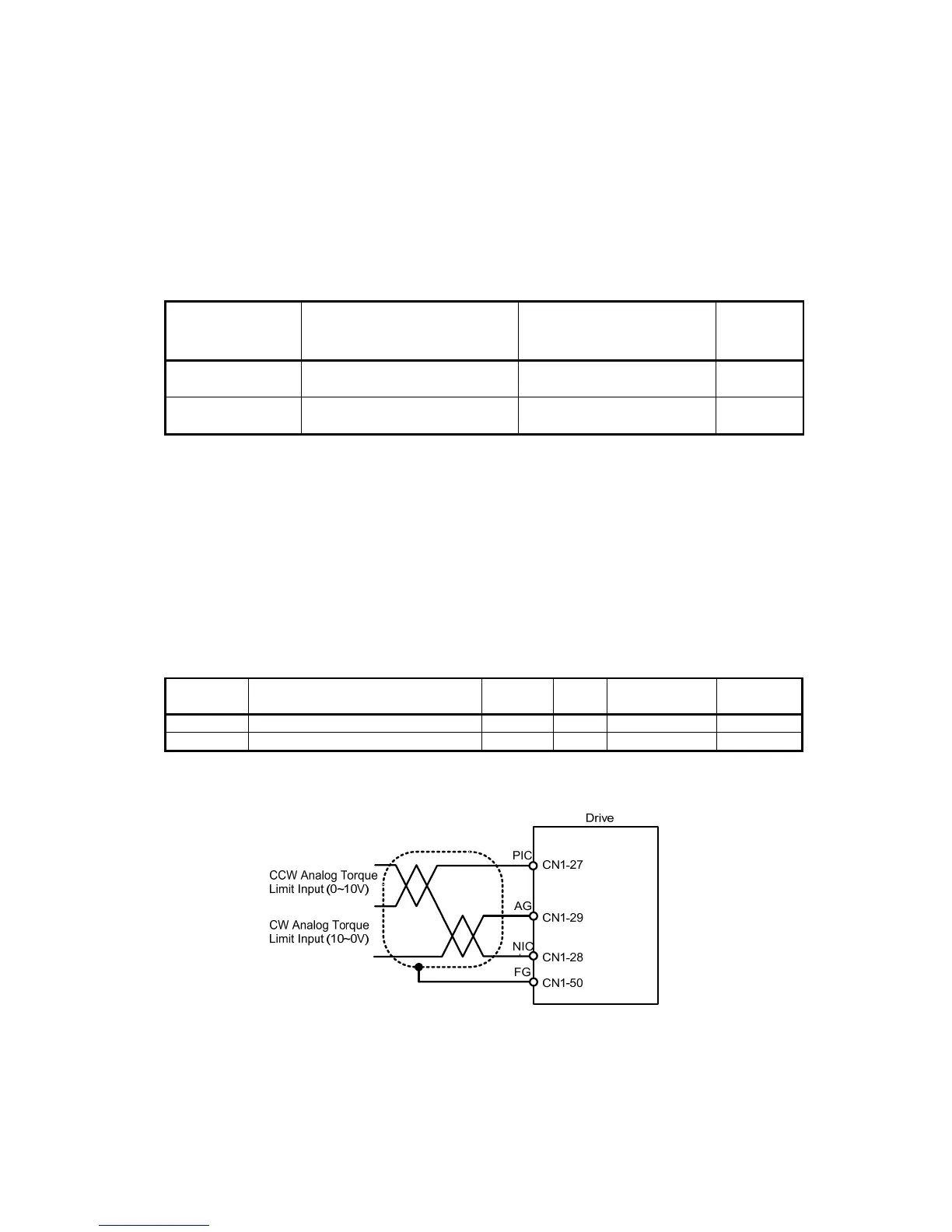

The diagram below shows the external analog torque limit command wiring:
