TECO JSDEP-20A User Manual

9-8

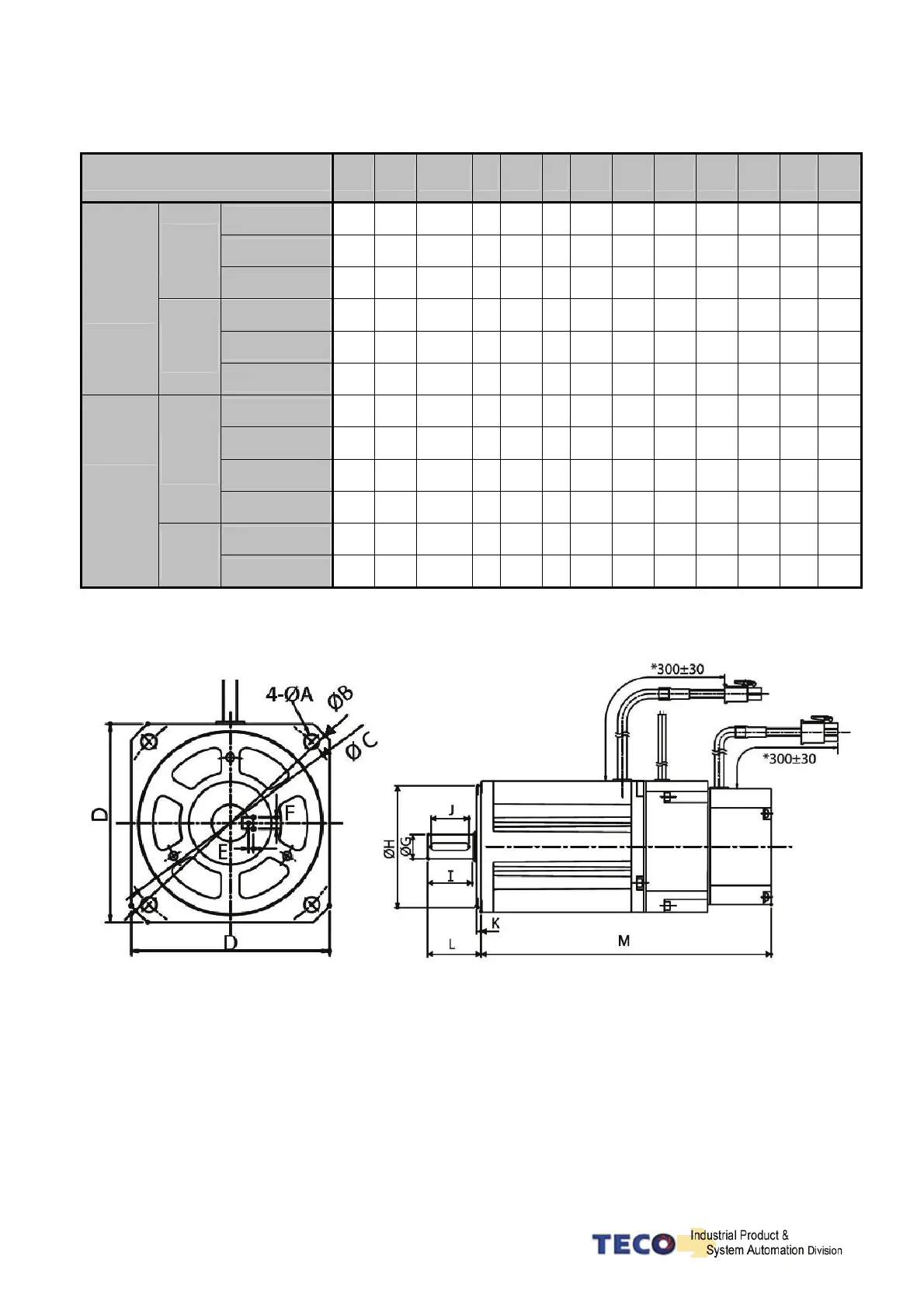

※JSMA-PSC/PLC dimension diagram
Motor Mode A B C D E F G H I J K L M
LC03AB/H ψ5.5 ψ100 ψ90 76 2 5 ψ14 ψ70 25 20 3 30 113.4
LC08AB/H ψ6.5 ψ112 ψ100 86 2 5 ψ16 ψ80 30 25 3 35 148
Without
Brake
LC08AB/H-0C ψ6.5 ψ112 ψ100 86 2 5 ψ19 ψ80 30 25 3 35 148
LC03AB/H ψ5.5 ψ100 ψ90 76 2 5 ψ14 ψ70 25 20 3 30 147.8
LC08AB/H ψ6.5 ψ112 ψ100 86 2 5 ψ16 ψ80 30 25 3 35 183.2
JSMA-PL
Series
With
Brake
LC08AB/H-0C ψ6.5 ψ112 ψ100 86 2 5 ψ19 ψ80 30 25 3 35 183.2
SCP5AB/H ψ3.5 ψ55 ψ48 42 - - ψ8 ψ30 22.5 16 2.5 25 85.8
SC01AB/H ψ3.5 ψ55 ψ48 42 - - ψ8 ψ30 22.5 16 2.5 25 106.8
SC04AB/H ψ5.5 - ψ70 60 2 5 ψ14 ψ50 25 20 3 30 121.7
Without
Brake
SC08AB/H ψ5.5 - ψ90 80 2.5 6 ψ19 ψ70 35 30 3 40 139
SC04AB/H ψ5.5 - ψ70 60 2 5 ψ14 ψ50 25 20 3 30 157.1
JSMA-PS
Series
With
Brake
SC08AB/H ψ5.5 - ψ90 80 2.5 6 ψ19 ψ70 35 30 3 40 174
Unit: mm
