5-59
Process for
Auto tuning

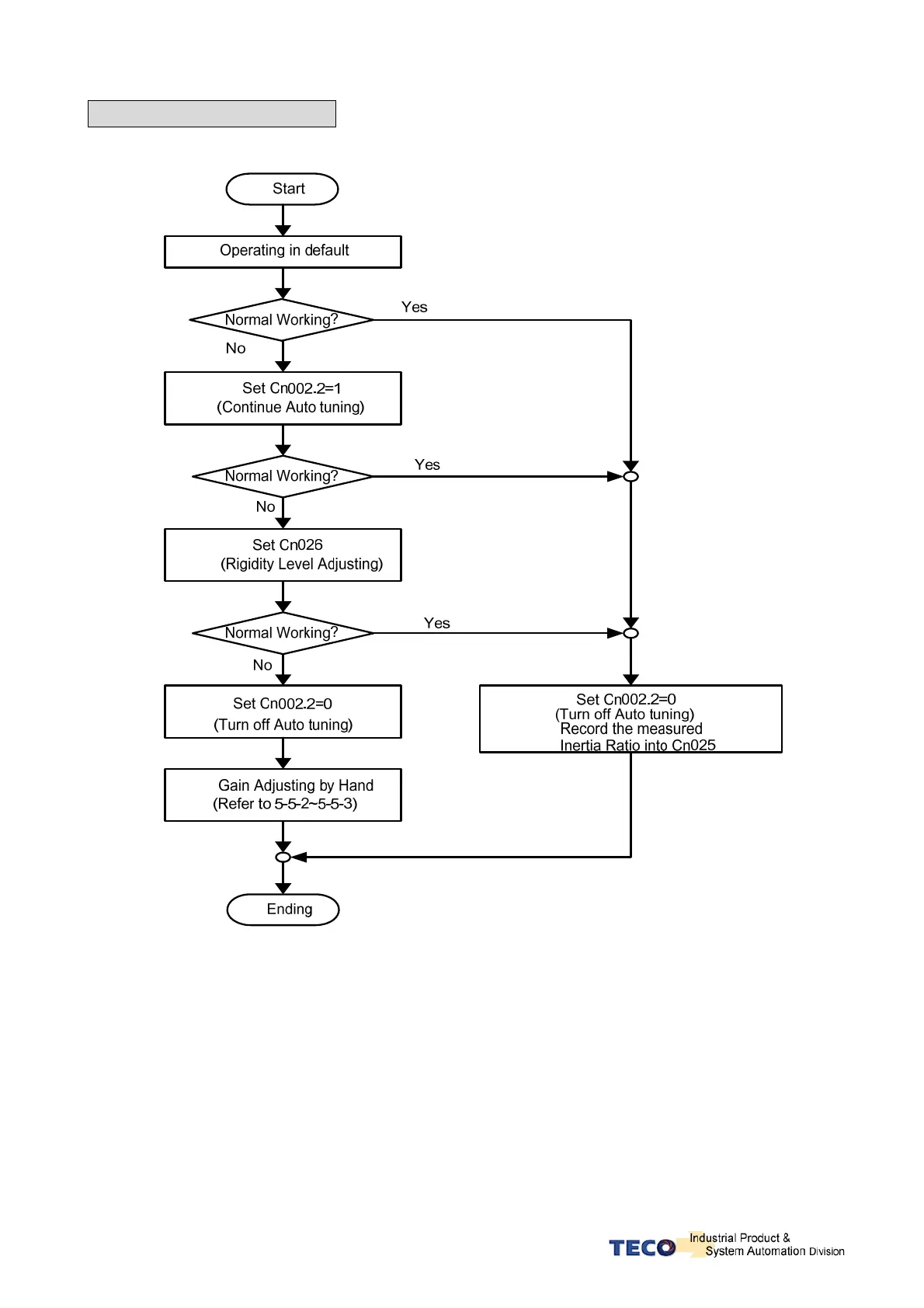

The Diagram below shows the process for
Auto tuning.
Note:
After
A
uto tuning is complete Set 0 in Cn
002.2, otherwise it will
not record the present
measured Load Inertia Ratio.
If the power is cut off during
Au
to tuning then when the power is
established, Servo controller will use the previously recorded setting
of Load Inertia Ratio which is stored in parameter Cn025.
