5-27
5-3-12 Other Functions

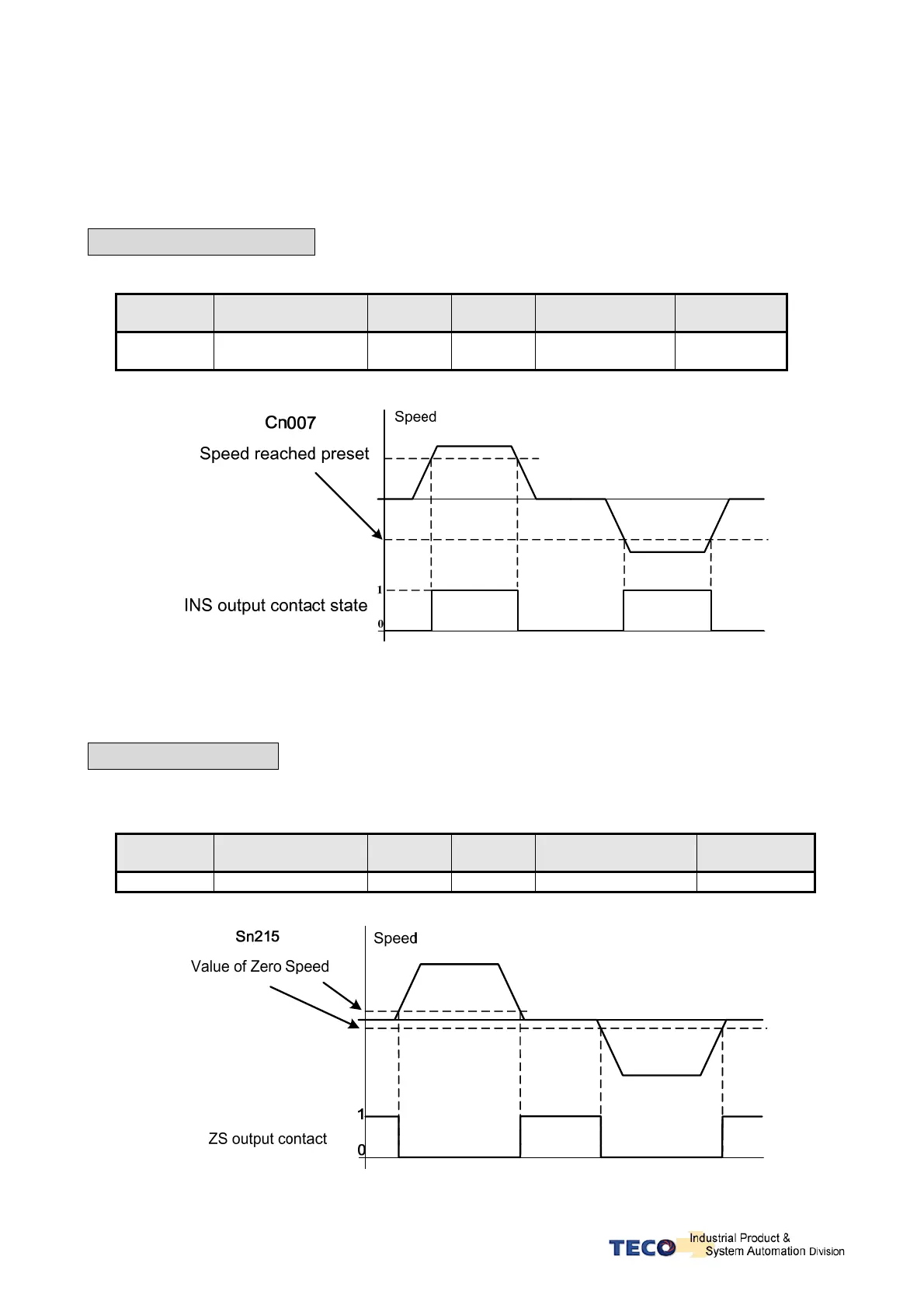

When the speed level in CW or CCW directions becomes greater than the value set in
Cn007 (Speed reached preset), the output contact INS operates.
Speed reached preset
Parameter
Signal
Name Default Unit Setting Range Control Mode
Cn007
Speed reached
preset
Rated rpm
× 1/3
rpm 0~4500 S/T
Note: Input contacts status “1” (ON) and “0” (OFF).
Please check section 5-6-1 to set the required high /Low signal levels (PNP/NPN) selection.
Zero Speed preset
When the speed is less than the speed set in Sn215 (Value of ZS), the output contact
ZS operates.
Parameter
Signal
Name Default Unit Setting Range Control Mode
Sn215 Value of zero speed 50 rpm 0~4500 ALL
Note: Input contacts status “1” (ON) and “0” (OFF)
Please check section 5-6-1 to set the required high /Low signal levels (PNP/NPN) selection.
