TECO JSMA-PMC15AB User Manual
5
of 1
of 1 rating
68 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
19

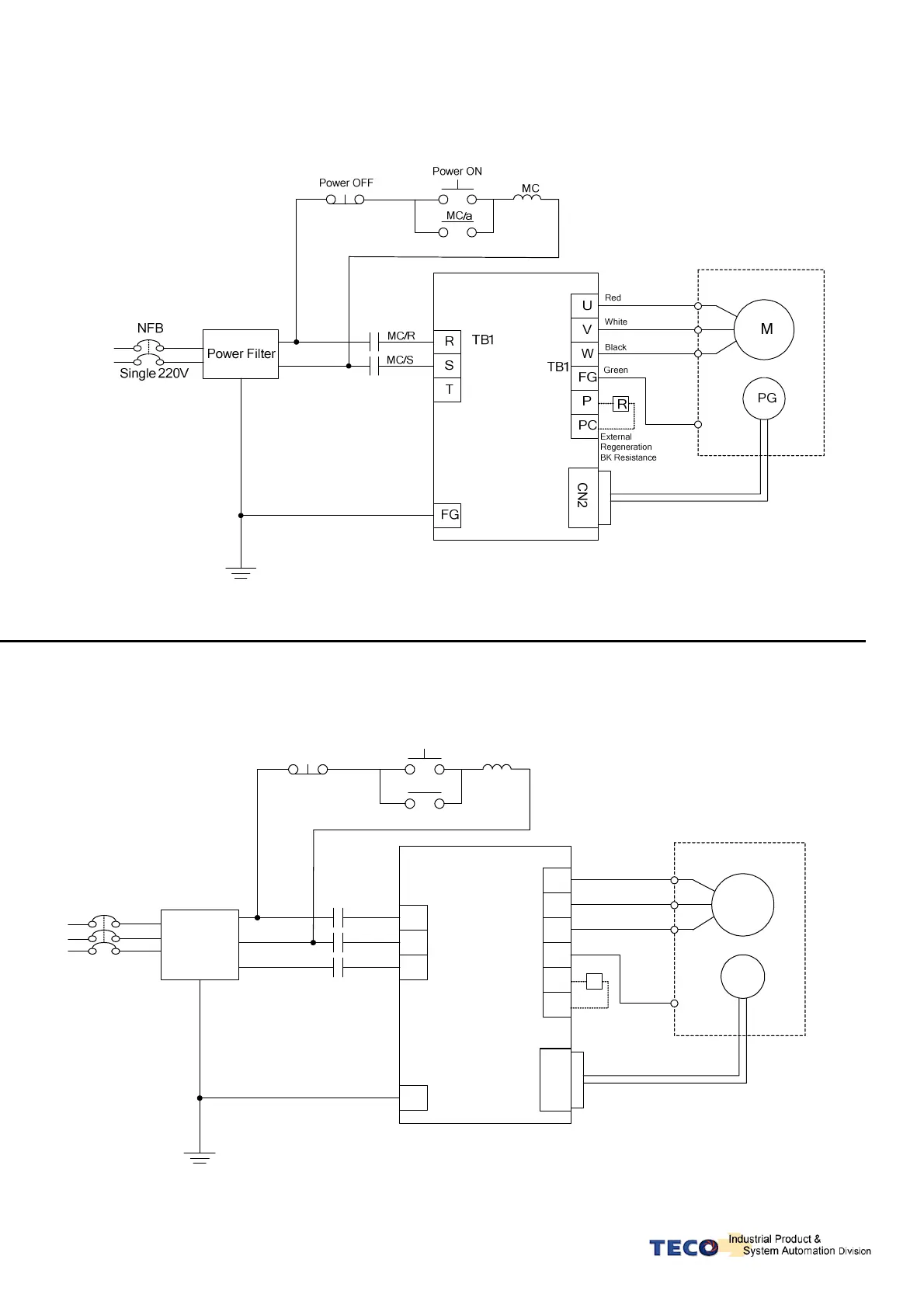

2-1-5 T
ypical Wiring for Motor and Main Circuit
* The Wiring Example
of Single Phase M
ain Pow
er (Less than 1KW
)
* The Wiring Example
of 3 Phase M
ain Pow
er (More than 1KW
)
R
S
T
PC
P
FG
W
V
U
3 Phase 220V
R
TB
1
TB
1
NFB
MC
M
PG
FG
Red
White
Black
Green
External
Regeneration
BK Resistance
Power ON
Power OFF
Power Filter
MC/R
MC/S
MC/T
MC/a
CN2
18
20
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 Checking and Installing
5
Checking Products
5
Confirming with Servo Drives
5
Confirming with Servomotors
6
Servo Motor Model Code Display
7
A Brief Introduction of Operation for Drives
9
Conditions for Installation of Drives
10
Environmental Conditions
10
Direction and Distance
11
Conditions for Installation of Servomotors
12
Environmental Conditions
12
Method of Installation
12
Notice for Install Motor
13
Chapter 2 Wiring
14
Basic Wiring for Servo System
14
Wiring for Main Circuit and Peripheral Devices
14
Wiring for Servo Drives
15
Specifications of Wiring
16
Motor Terminal Layout
17
Typical Wiring for Motor and Main Circuit
19
TB Terminal
20
Wiring for Mechanical Brake
20
I/O Terminal
21
Output Signals from the Servo Pack
22
Encoder Connector (CN2) Terminal Layout
23
Typical Circuit Wiring Examples
25
Position Control Mode (Pe Mode) (Line Driver)
25
Position Control Mode (Pe Mode) (Open Collector)
26
Position Control Mode (Pi Mode)
27
Speed Control Mode (S Mode)
28
Torque Control Mode (T Mode)
29
Chapter 3 Panel Operator / Digital Operator
30
Panel Operator on the Drives
30
Trial Operation for Servomotor Without Load
31
Chapter 4 Parameter Function
32
Explanation of Parameter Groups
32
Parameter Display Table
32
Chapter 5 Troubleshooting
67
Alarm Functions
67
Troubleshooting of Alarm and Warning
68
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the TECO JSMA-PMC15AB and is the answer not in the manual?
Ask a question
TECO JSMA-PMC15AB Specifications
General
Brand
TECO
Model
JSMA-PMC15AB
Category
Servo Drives
Language
English
Related product manuals
TECO JSMA-PLC08AB
68 pages
TECO JSMA-LC08AB
68 pages
TECO JSDAP-15A
255 pages
TECO JSDAP-20A
255 pages
TECO JSDEP-50A
210 pages
TECO JSDAP-50A3
255 pages
TECO JSDAP-100A3
255 pages
TECO JSDEP Series
210 pages
TECO JSDAP Series
255 pages
