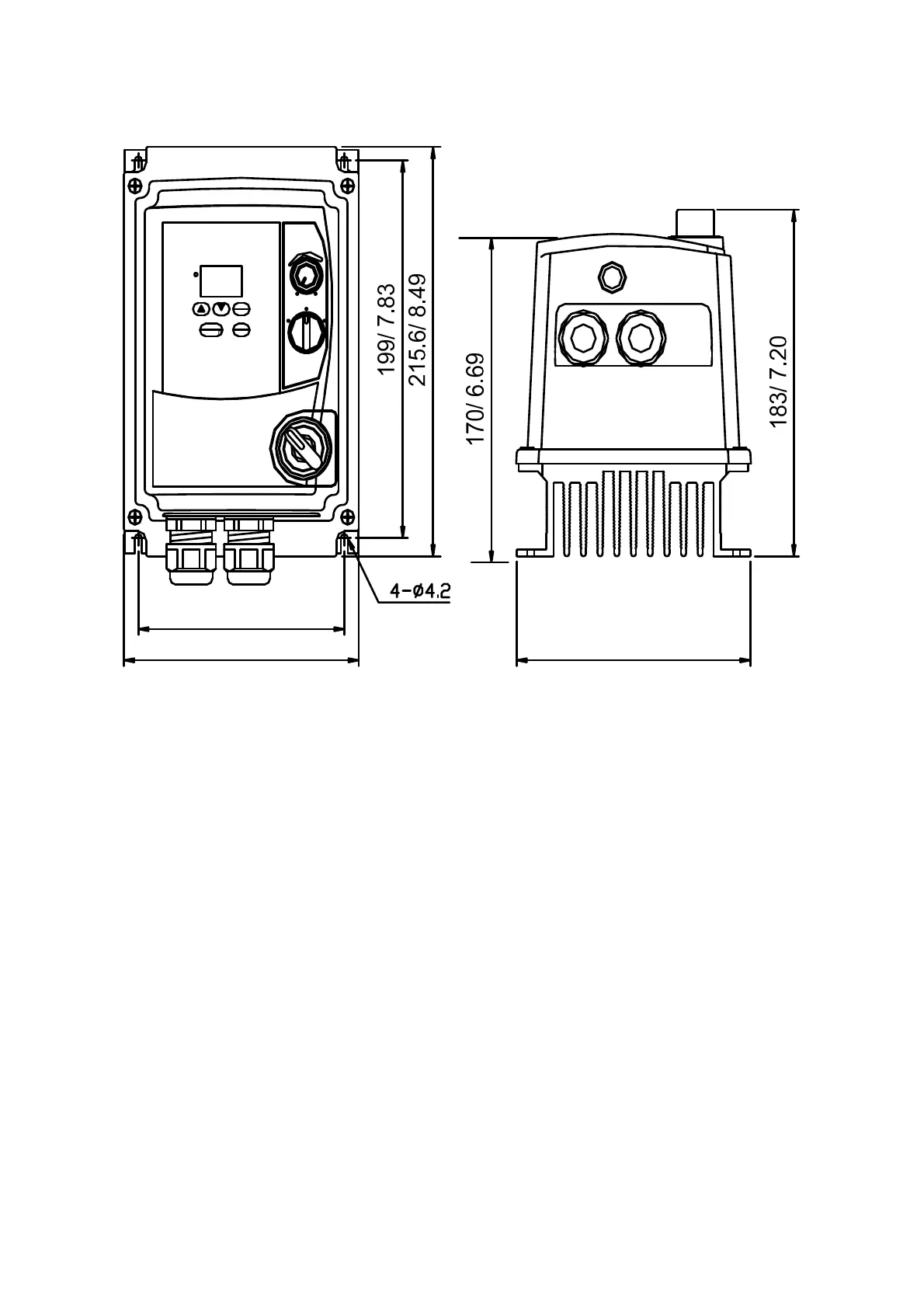

E2-1P2/1P5/101/2P2/2P5/201- N4X (IP65)TYPE:

STOP

RUN

ENT

DATA

FUN

DSP

RESET

140.6/ 5.54

123.4/ 4.86

UNIT : mm/inch
