ChallengerPlus Installation and Quick Programming Manual 41
Appendix C: Operating temperature
The operating ambient (room) temperature for the Challenger is 0 to 50°C.
If the Challenger is to operate for prolonged periods in an environment with an
ambient temperature above 40°C, de-rate the user current drawn from the NAC
according to the chart in Figure 15 below.

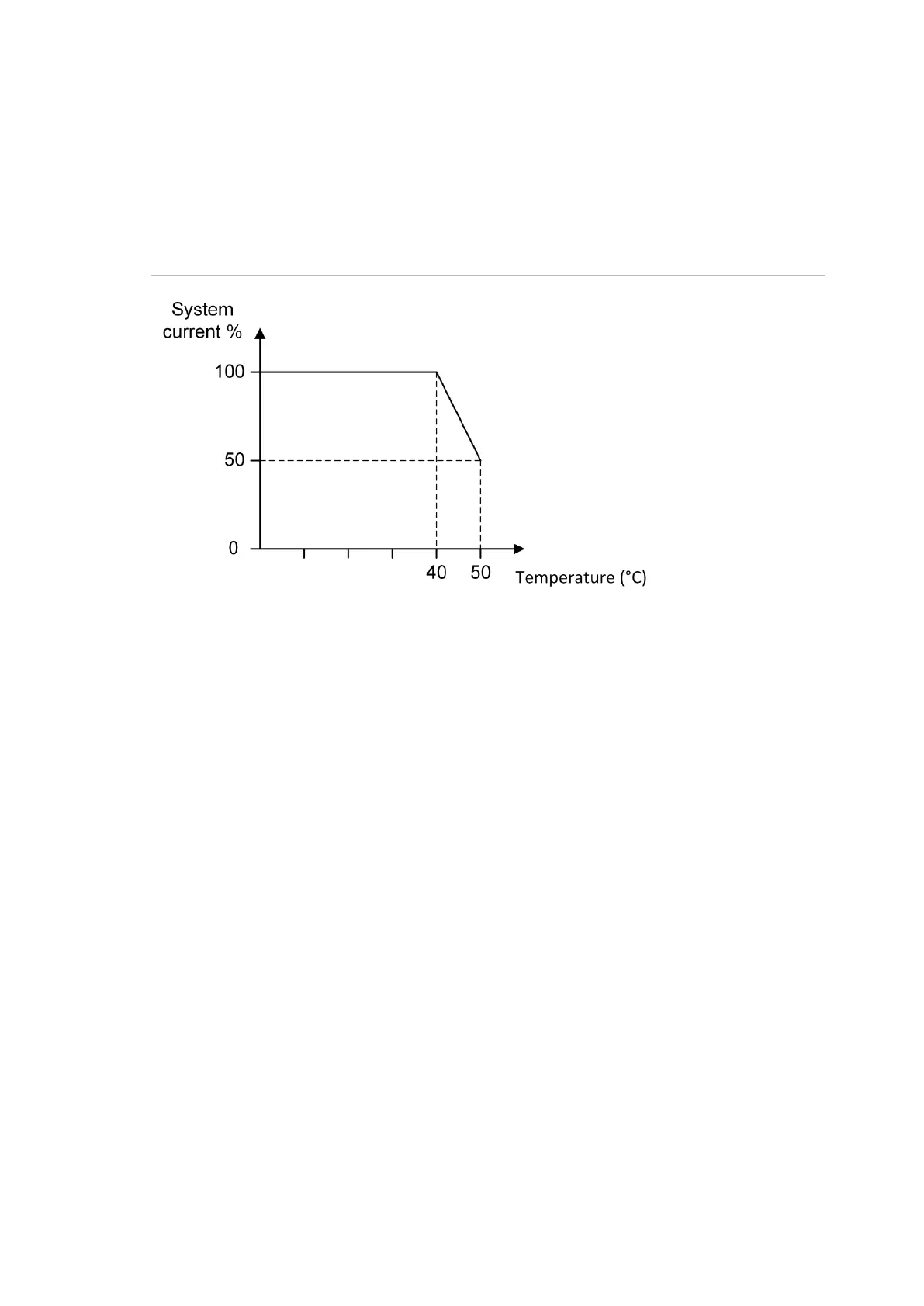

Figure 15: Power derating chart
