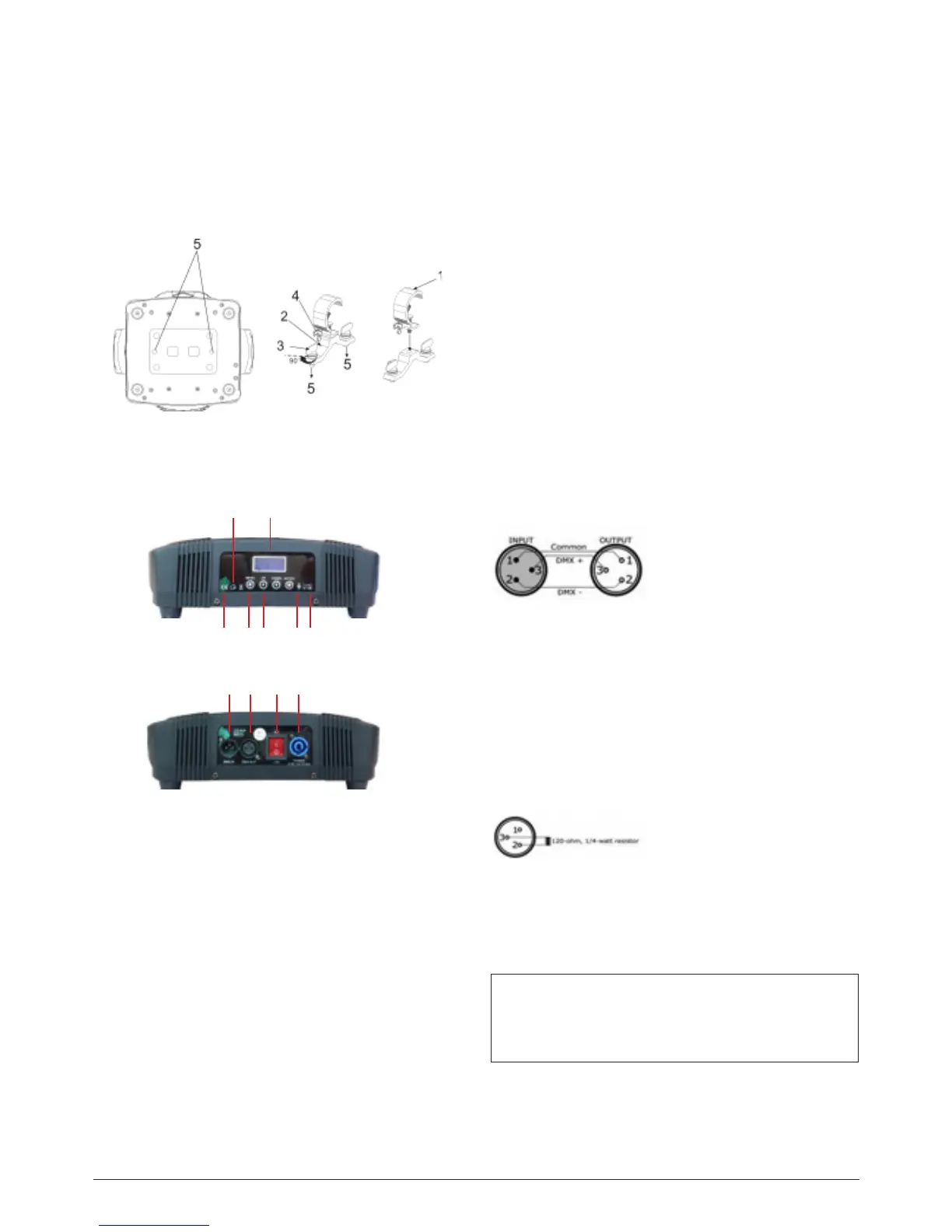

Installation
• This machine should be mounted through the screw
holes of truss. Safety wire is a must to x xture well.
Make sure truss and safety wire have strong load capaci-
ty to bear 3 times weight than xture at least.
• This machine should be installed by qualied technician.
Controlling Board
1. Indoor Used
This unit is for indoor used, cannot bear moist or dusty envi-
ronment.
2. LCD Display
Shows menu
3. CE Certication
This unit had obtained CE certication.
4. Treatment of Retirement
This unit cannot be dropped to trash can.
5. Control Button
Choose function
6. External Lamp Ignited.
This machine with high voltage sodium lamp unit, needs ex-
ternal igniter.
1 2
3
8 9 10 11
4 5 6 7
7. Operating Environment
Maximum operating environment temperature is 35°C, 5m
minimum distance away from ammable materials.
9. DMX In
Connect 3 pin XLR signal cable with male connector to obtain
signal from other unit or controller
10. DMX Out
Connect 3 pin XLR signal cable with female connector to
transfer signal to next unit
11. Switch
Power on/power o
12. Power Input
Connect power cable to obtain power.
Machine Connection
Cable Connectors
Cables must have a male XLR connector on one end and a
female XLR connector on the other end.
A word on termination: DMX is a resilient communication
protocol, however errors still occasionally occur. Termi-
nation reduces signal errors, and therefore best practices
include use of a terninator in all circumstances. If you are
experiencing problems with erratic xture behavior, espe-
cially over long signal cable runs, a terminator may help
improve performance.
To build your own DMX Terminator: Obtain a 120-ohm, 1/4-
watt resistor, and wire it between pins 2&3 of the last xture.
They are also readily available from specialty retailers.
Complimentary signal cable can transmit signals to
20 unit xtures at most. Signal amplier is a must to
connect more xtures
