BD_BE_BF_BSP 777 d
22 Betriebsanleitung / Operating manual / Instructions de service / Instrucciones de uso
GB
Correct purpose of use
The equipment is only authorised for proper use for its correct
purpose. Failure to do this will invalidate all warranties and release
the manufacturer from all responsibility! The equipment is
constructed in compliance with IP65 and should be protected
from excessive amounts of water and dust. The equipment must
be installed so that it is protected from external damage. It must
be ensured that the manometer is correctly installed and has the
relevant IP protection. The limits specified in the data sheet must
be complied with.
3. Commissioning
Installation
The digital manometer must be connected to the pressure tapping
point in a suitable manner using your own tools. In this case
there must be no occurrence of pressure which exceed the device’s
maximum pressure values. Pressures which exceed the digital
manometer’s maximum range can lead to permanent damage to the
measuring device. When screw-fitting the gauges the force required
for this must not be applied through the case or terminal box but
just through the spanner flats (with suitable tool) provided for this

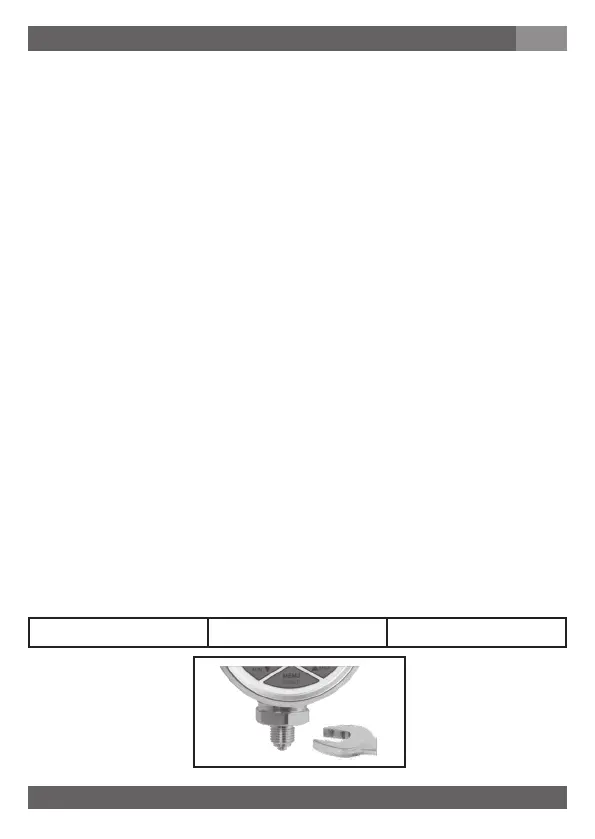

purpose. For the assembly the following moments may not be
exceeded:
G 1/8 = max. 20Nm G 1/4 = max. 25Nm G 1/2 = max. 50Nm
