INSTALLATION OF INDOOR AND OUTDOOR UNITS
Read completely, then follow step by step.

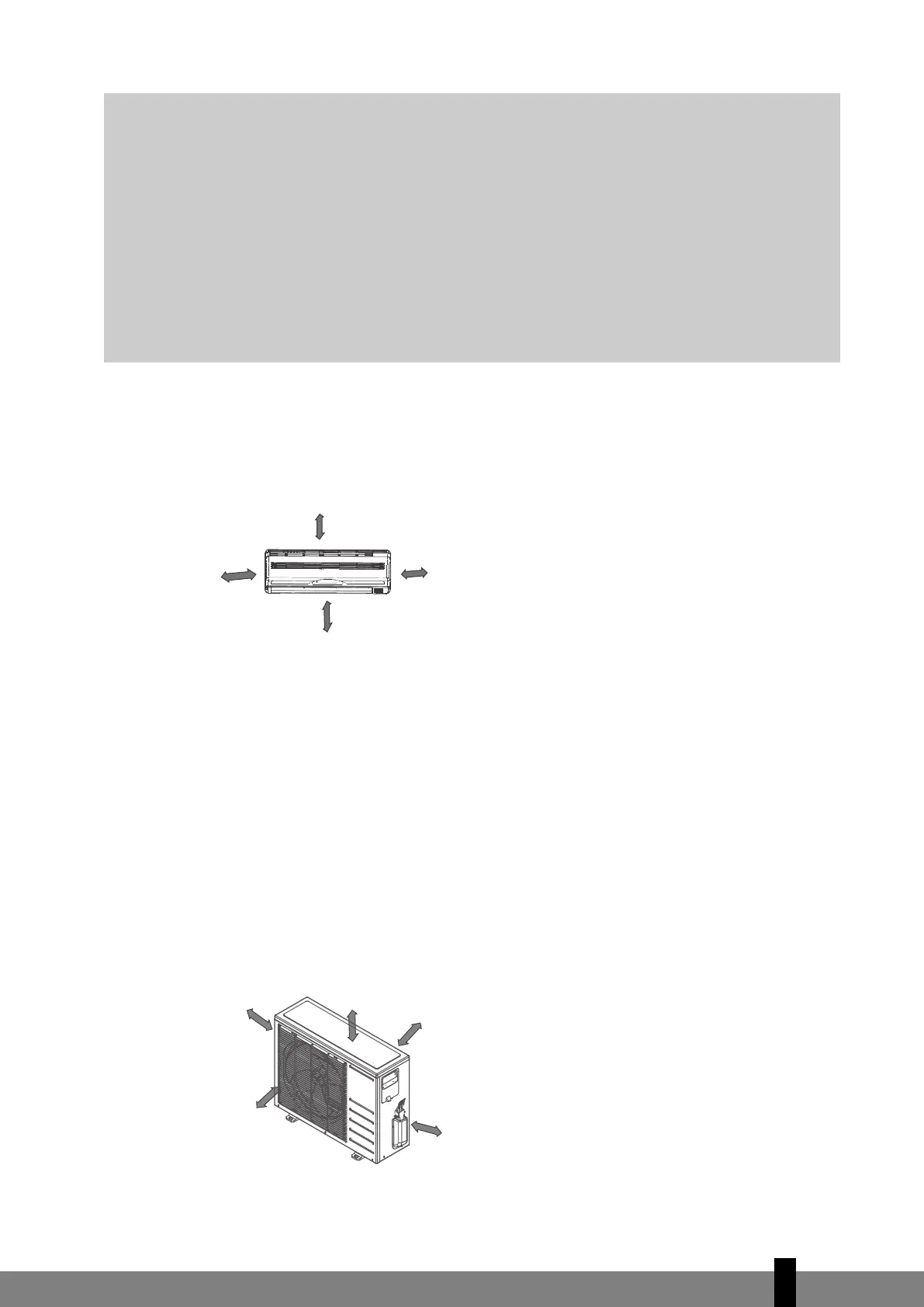

Fig. 1
Indoor unit
• Do not expose the indoor unit to heat or steam.
• Select a place where there are no obstacles in front or around the unit.
• Make sure that condensation drainage can be conveniently routed away continuously going down-
wards.
• Do not install near a doorway.
• Ensure that the space on the left and right of the unit is more than 12cm.
• Use a wire detector to detect wires and/or electric cables. to locate studs to prevent unnecessary
damage to the wall.
• The top of the indoor unit should be installed on the wall at a height of 2.3 metres or more from the floor.
• The indoor unit should be installed allowing a minimum clearance of 15cm from the ceiling.
• Any variations in pipe length will/may require adjustment to refrigerant charge.
Fig. 2
More than 15 cm.
M
ore than 12 cm.
M
ore than 12 cm.
2.3 m or more
LEFT
More than 30 cm.
BACK
More than 30 cm.
RIGHT
More than 60 cm.
FRONT
More than 200 cm.
More than 60 cm.
G
C
AUTIONS
This equipment must be earthed and installed with an earth leakage breaker. It can possibly cause
electrical shock if grounding is not perfect.
Do not use an extension cable. Otherwise it can cause electric fire or shock.
Do not install the unit in a place where a flammable gas leaks.
• If gas leaks and accumulates in the area surrounding the unit, it could cause an explosion.
Perform the drainage/piping work according to the installation instruction.
• If there is a defect in the drainage/piping work, water could leak from the unit and household
goods could get wet and be damaged.
To Next Page
