Fig. 5

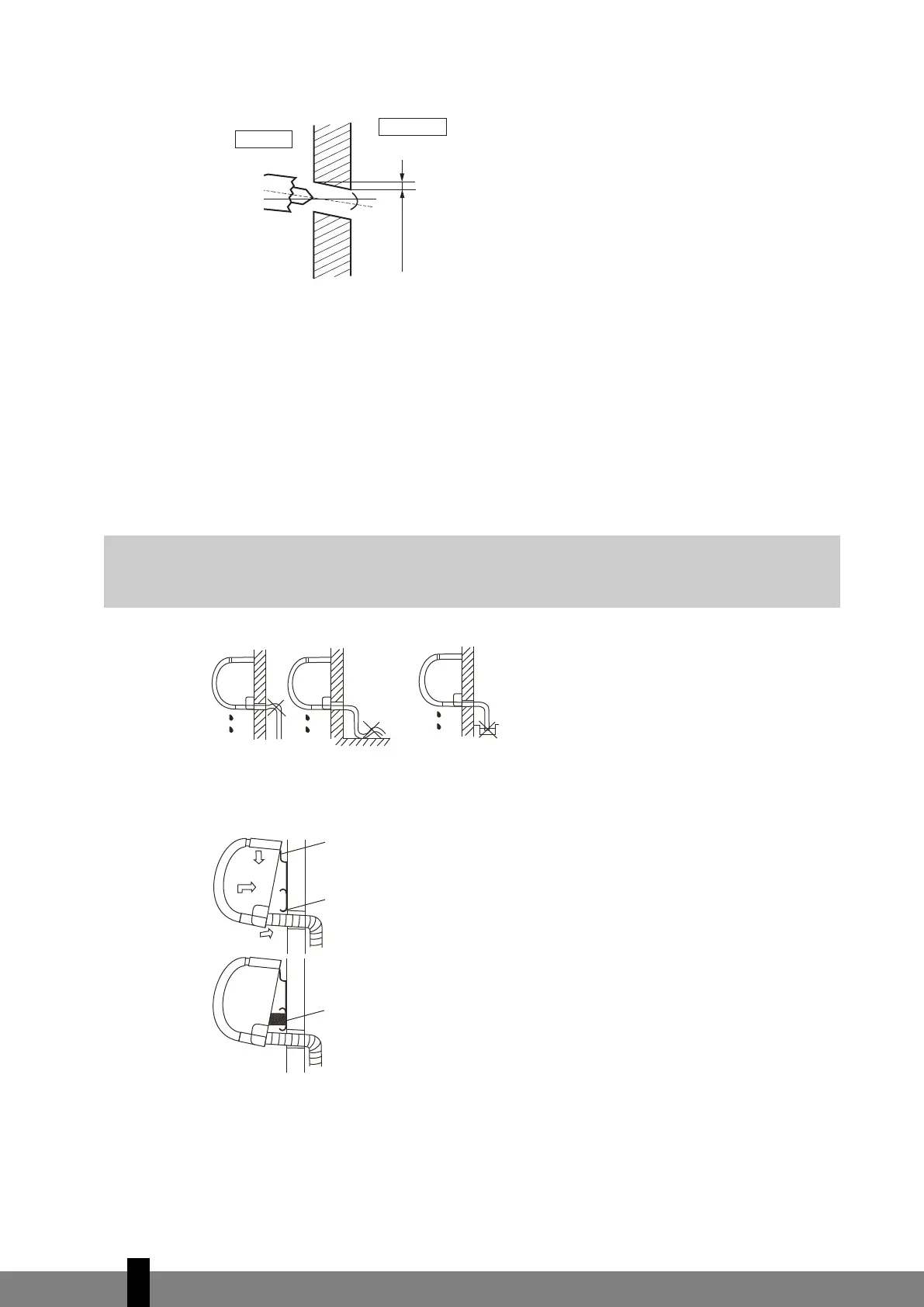

2. Drill a hole in the wall
1. Determine hole positions according to the diagram detailed in Fig. 4 & 5. drill one (1) hole (≥ 85 mm for
TSCS 4xx / ≥ 65 mm for TS 4xx) slanting slightly downwards to outdoor side, this will prevent water to
come indoors.
2. Always use wall hole conduit when drilling metal grid, metal plate or the like.
3. Connective pipe and drainage installation
Fig. 6
1. When connecting extension drain hose, insulate the connecting part of extension drain hose with a
shield pipe, do not let the drain hose slack.
Fig. 7
Connective pipe
2. For the left-hand and right-hand piping, remove the pipe cover from the side panel. The pipe cover
must be kept as it may be used when relocate the air conditioner to any other place.
G
Always run the drain hose sloping downward all the way. Do not install the drain hose as
illustrated in fig. 6
D
o not block water flow by a rise.
Do not put the end of drain hose
into water.
Upper Hook
Lower Hook
Cushion
material
W
all
I
ndoor
Outdoor
≥5°
5 - 7 mm
per 100 mm
4
88
