Tecumseh SPECTRA 37 - Float Type Carburetor

41

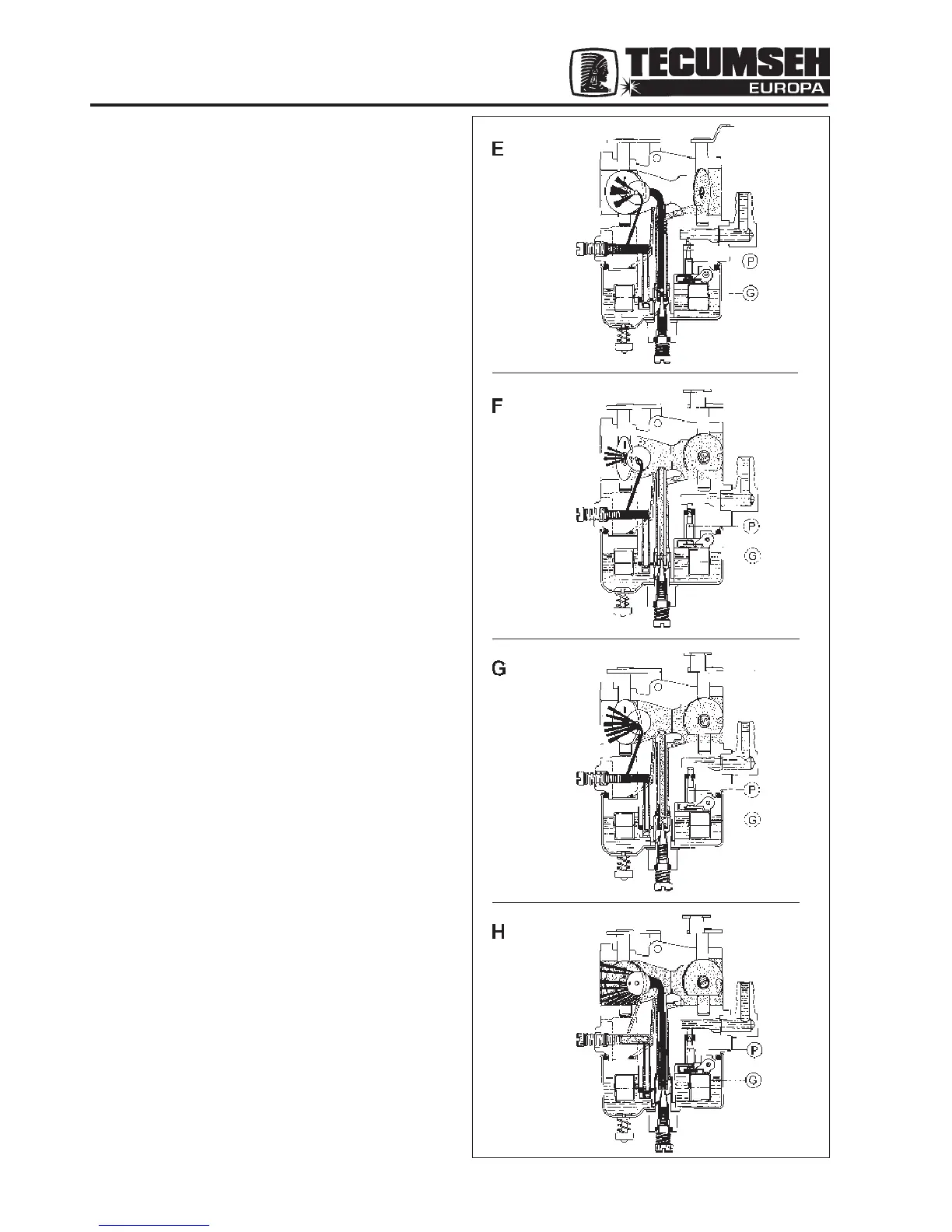

FLOAT TYPE CARBURETTOR (FIG. 2)
E - Choke
F - Idle
G - Intermediate speed
H - Full load
Inlet of petrol to the carburettor is controlled by needle P.
When the petrol level decreases, the float G falls and
consequently the needle allows petrol to flow in and restore
the level.
Fig. 2
