8
C. STARTER
NON-STYLIZED STARTERS
LAV - BV - BVS - VANTAGE - HBL - BH - AV -
MV
1. RECOIL STARTER
In the event of starter failure, remove the unit from the
engine and check the following items:
- That dog A (Fig 1) protrudes when the rope is slowly
pulled. If the rope cannot be pulled, check the retainer
hub locking screw B for correct tightening torque, which
should be kgm 0.5 - 0.6 (45/55 inch lbs).
- If, after correct tensioning of screw B (Fig 1), the dog
does not function, disassemble the starter as follows,
referring to exploded view shown in Fig 2.

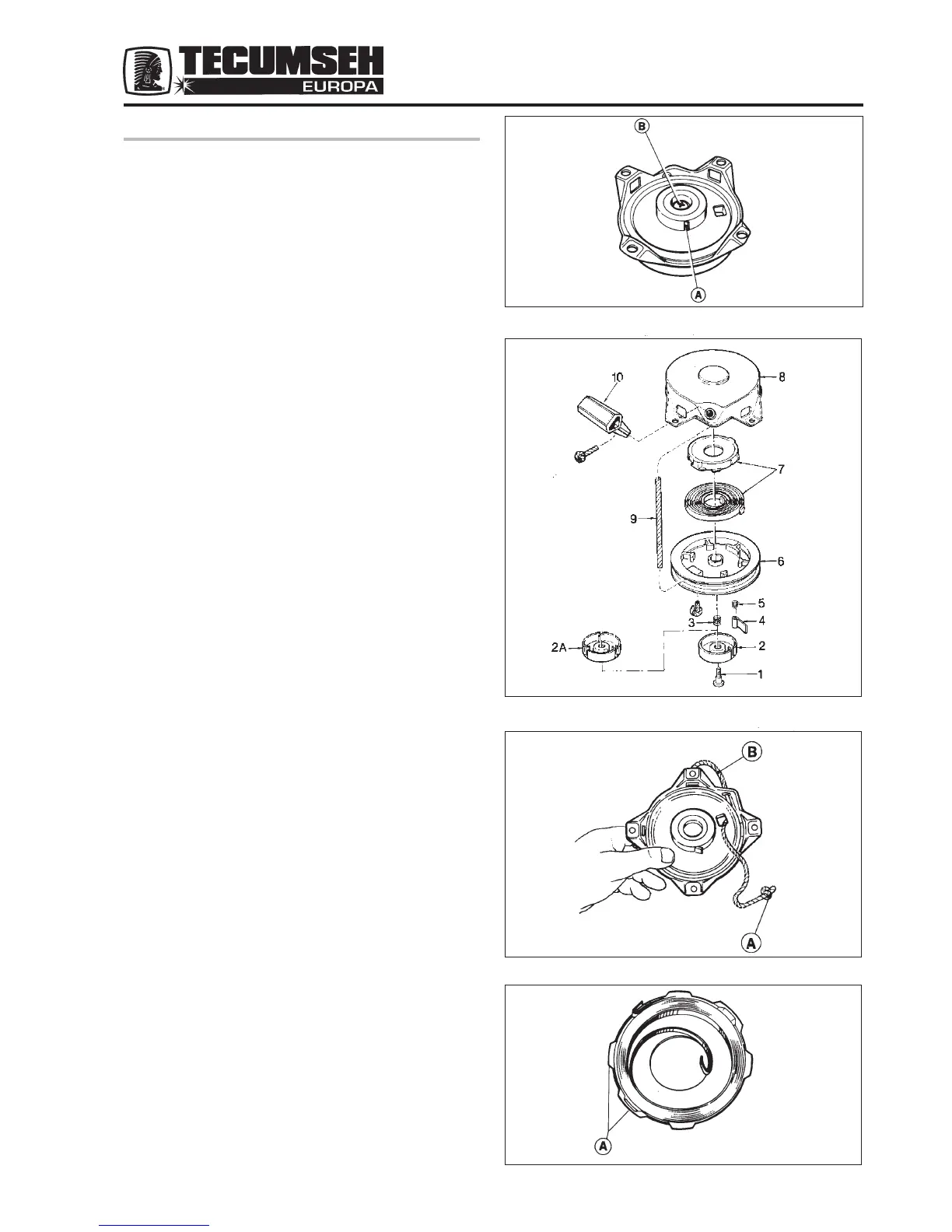

Fig 2 - Exploded View Standard Top Starter
1. Retaining Screw
2. Retainer
3. Brake Spring
4. Dog
5. Dog Return Spring
6. Rope Pulley
7. Rewind Spring
8. Starter Housing
9. Rope
10. Handle
To disassemble starter
Release spring tension. Slightly extend rope and lock
pulley . Untie knot or remove staple securing handle and
release pulley (Fig 3).
- Remove centre locking screw.
- Remove retainer hub, brake spring and dog.
- Remove dog return spring B, bearing in mind its position
for correct replacement. (Fig 6).
- Remove pulley and spring container assembly.
- Once the damaged parts have been replaced, lubricate
spring container with soft grease (Fig 4) and proceed
with reassembly.
Fig. 1
Fig. 4
Fig. 2
Fig. 3
