14

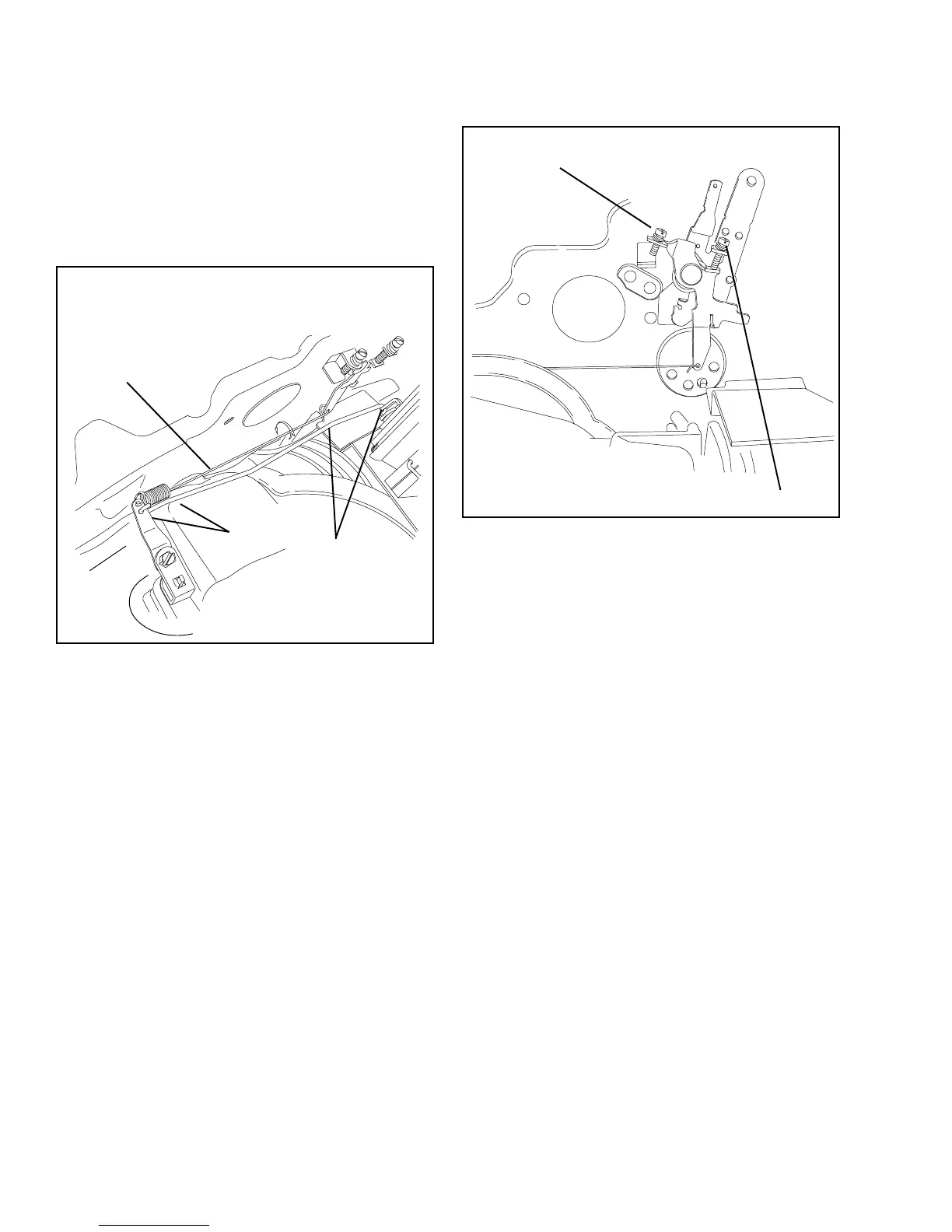

Linkage Installation: The solid link is always connected
from the throttle lever on the carburetor to the lower
hole on the governor lever. The shorter bend has to be
toward the governor. The governor extension spring is
connected with the spring end hooked into the upper
hole of the governor lever and the extension end hooked
through the speed control lever. To remove the governor
spring, carefully twist the extension end
counterclockwise to unhook the extension spring at the
speed control lever. Do not bend or distort governor
extension spring.
Governor Adjustment. With engine stopped, loosen
the screw holding the governor clamp and lever. Turn
the clamp clockwise, then push governor lever
connected to the throttle to a full wide open throttle
position. Hold the lever and clamp in this position and
tighten the screw.
Speed Controls: This engine has an adjustable speed
control. Never exceed the manufacture’s recommended
speeds.
LONG BEND
SHORT BEND
GOVERNOR SPRING
TWIST COUNTERCLOCKWISE
TO DISCONNECT
HIGH SPEED ADJUSTMENT
COUNTERCLOCKWISE INCREASES SPEED
LOW SPEED ADJUSTMENT
COUNTERCLOCKWISE INCREASES SPEED
NOTE: Governor adjustment screw will be Torx head
(T-10) effective August 1, 1996 for E.C. Compliance.
