BATTERY. Check battery per manufacturer’s
recommendations. The charging system on the engine
maintains the battery during normal use.
When battery is low, use the 120 volt auxiliary charger
(usually supplied by the equipment manufacturer).
TO REPLACE BRAKE PAD:
1. If equipped with electric starter, locate wire routing
through blower housing. Compress the grommet
and pull out of the blower housing. Carefully slide
wires through the slot. DO NOT cut the wire
insulation on the blower housing.
2. Remove flywheel (see flywheel removal.)
3. Remove pad lever “E” clip. Lift pad lever, and
unhook spring and link.
4. Attach the link to the new pad lever, install pad lever
and “E” clip.
5. Attach spring to lever first. Use a needle nose pliers
to hook the spring into the baffle.
NOTE: It is important to attach the pad lever spring
with the short hook on the pad lever and the long hook
to the blower housing baffle.
TO START THE ENGINE. In order to restart the engine,
the control must be applied. This action pulls the brake
pad away from the inside edge of the flywheel and opens
the ignition ground switch.
On electric start systems the starter is energized to start
the engine.
On non-electric start systems, recoil starter rope must
be pulled to start engine.
WIRING DIAGRAMS (Electric Start Systems). All wiring
beyond the connectors on the engine are supplied by
the equipment manufacturer. Check all terminals and
connectors for corrosion and adequate contact, and all
wiring for damage and proper size.

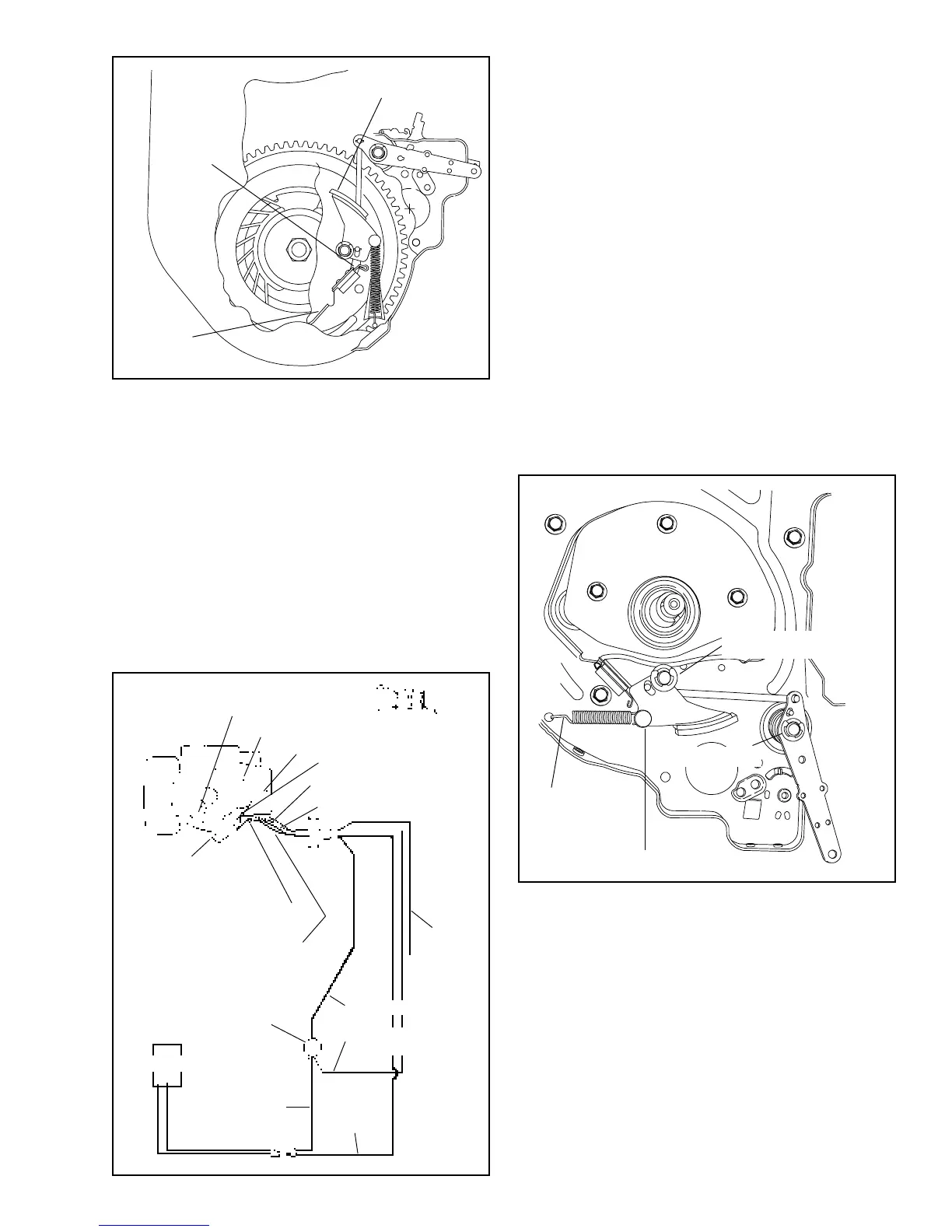

"BRAKE OFF"
IGNITION
GROUND
WIRE
BRAKE PAD
GROUND
CLIP
PAD LEVER "E" CLIP
LONG HOOK
SHORT HOOK
BRAKE LEVER "E"
IGNITION SHORT-OUT SWITCH
ALTERNATOR LEAD
STARTER MOTOR
(INTERNALLY GROUNDED)
ALL GROUND CONNECTIONS MUST BE CLEANED TO A BRIGHT FINISH.
RED #12
A.W.G.
BLACK #12
A.W.G.
HEAVY DUTY SWITCH
RED #12 A.W.G.
ALTERNATOR LEAD
RED #18 A.W.G.
IGNITION
SHORT-OUT
LEAD #13
A.W.G.
(OPTIONAL)
ELECTRIC STARTER LEAD
STARTER INTERLOCK SWITCH
CHARGING RECTIFIER
IGNITION SHORT-OUT LEAD
BATTERY GROUND
IGNITION SHORT-OUT LEAD
ALTERNATOR
LEAD
IGNITION SHORT-OUT LEAD
BATTERY GROUND
ELECTRIC
STARTER
LEAD
VIEW A-A
KEYSWITCH CONTROL
BATTERY
(12 VOLT)
